Description:

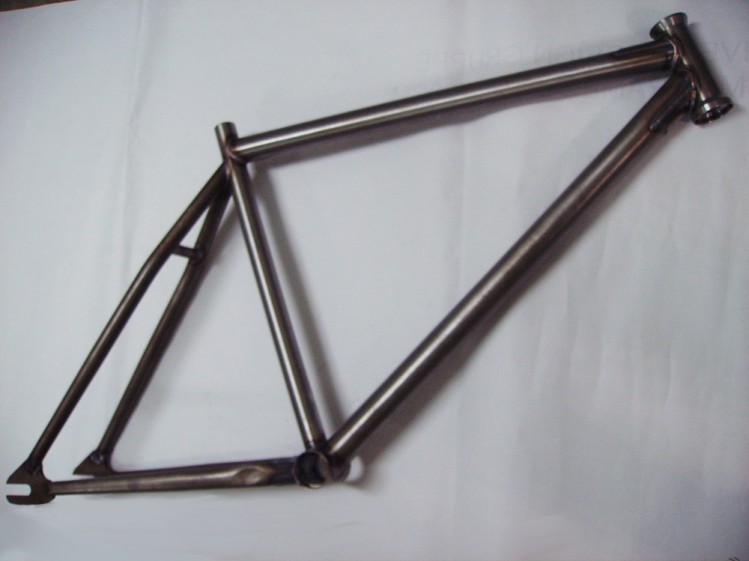

Unknown Trick Frame V.2
Negative BB Shell Drop
Thicker Chainstays and Seatstays
Heat Treated
4130 Cromoly
Clearance for 26″ x 2.3″ or 700c x 50mm rear tires
Upgraded Geometry
Second batch:
If you missed out on the first order get on these now!
We’ve added one more color to our catalog… the RawDogg!
We brought down the seat tube 2cm from our smallest frame for better standover.
check out the geo below
Details:
Release Date:
- February 2011
Manufacturer:
MSRP: $375
Colors:
- Matte Black
- Gloss Black
- Raw
Size(s):

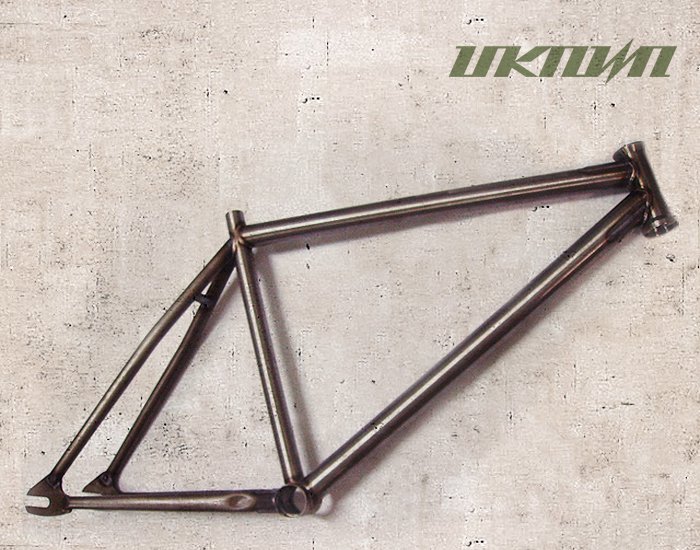

- 26″ X-Small
- Small
- Medium
- Large
Wheel Size:
- 26″, 700c
Gallery:
Promo Content:
Specifications:
Top Tube: X-Small 575mm, Small 575mm, Medium 590mm
Seat Tube: X-Small 440mm, Small 470mm, Medium 490mm
Seat Tube to Chainstay angle: X-Small 73°, Small + Medium 74°
Chainstay: X-Small 380mm, Small 410mm, Medium 410mm
BB Drop: -20mm
Material: 4130 Chromoly, heat-treated oversize tubing
Tire Clearance: 26″ x 2.3, 700c x 50c
Mid BB
