FIXED GEAR ARCHIVE

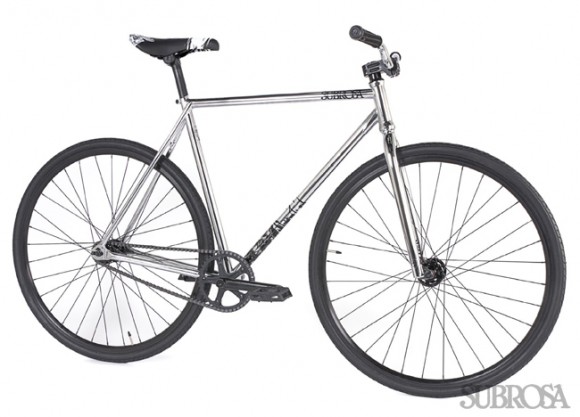

Subrosa Malum Fixed 2011

Description:

We’ve used a lot of feedback from distributors, shops, and the riders to make this our best fixed gear yet.

Details:

Release Date:

  • October 2010

Manufacturer:

  • Subrosa Brand

MSRP: n/a

Color(s):

  • Larry Hoover

Size(s):

  • Small
  • Medium
  • Large

Wheel Size:

  • 700c

Gallery:

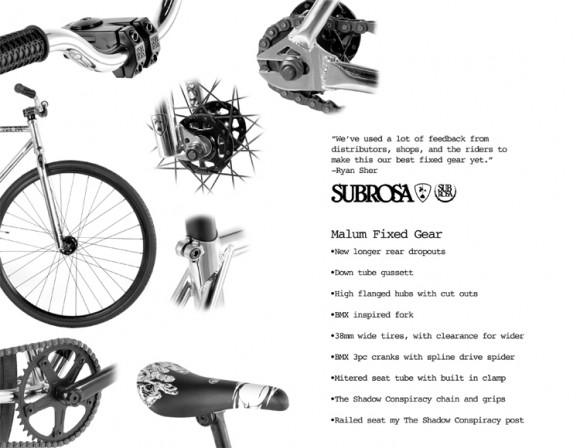

Specifications:

  • New longer rear dropouts
  • Down tube gusset
  • high flanged hubs with cut outs
  • BMX inspired fork
  • 38mm wide tires, with clearance for wider
  • BMX 3pc cranks with spline drive spider
  • Mitered seat tube with built in clamp
  • The Shadow Conspiracy chain and grips
  • Railed seat w/ The Shadow Conspiracy post
  • FRAME SMALL Malum Fixed 100% Japanese seamless chromoly TT and ovalized and butted DT — 74 degree HT / 75.5 degree ST / 515mm ST length / 545mm TT length / 400mm CS
  • FRAME MEDIUM Malum Fixed 100% Japanese seamless chromoly TT and ovalized and butted DT — 74 degree HT / 75.5 degree ST / 540mm ST length / 585mm TT length / 400mm CS
  • FRAME LARGE Malum Fixed 100% Japanese seamless chromoly TT and ovalized and butted DT — 74 degree HT / 75.5 degree ST / 560mm ST length / 590mm TT length / 400mm CS
  • FORK Subrosa 100% Japanese seamless chromoly — 28mm offset with tapered legs and integrated bearing race
  • BARS Subrosa 100% chromoly 2.0″ rise / 10 degree backsweep / 3 degree upsweep / 20.75″ wide
  • GRIPS Shadow Finger Banger Large grips without flanges
  • BAR ENDS Shadow Nylon Push In Bar Ends
  • HEADSET Sealed integrated headset
  • STEM Custom Forged Subrosa Hold On alloy front load stem
  • RIMS 32H alloy double wall 700c x 24mm
  • FRONT HUB 3/8 sealed bearing high flange alloy track hub
  • REAR HUB 3/8 sealed bearing high flange double sided alloy track hub
  • TIRES 700c x 38c front and rear
  • CRANKS Heat treated seamless tubular 3pc. 48T 165mm BMX chromoly cranks with sealed euro BB
  • SPROCKET Spline drive spider with 130 BCD alloy sprocket
  • GEARING 44–16 gearing ( includes freewheel and fixed cog)
  • CHAIN Genuine Shadow Interlock V2 chain
  • PEDALS Shadow Ravager Plastic with straps
  • BRAKES Front dual pivot with top mount lever
  • SEAT Subrosa Fixed saddle
  • POST Shadow Umbra Post — 350mm length, 27.2mm diameter
  • SEAT CLAMP Intergrated into frame
  • WEIGHT 22.5 lbs
