FIXED GEAR ARCHIVE

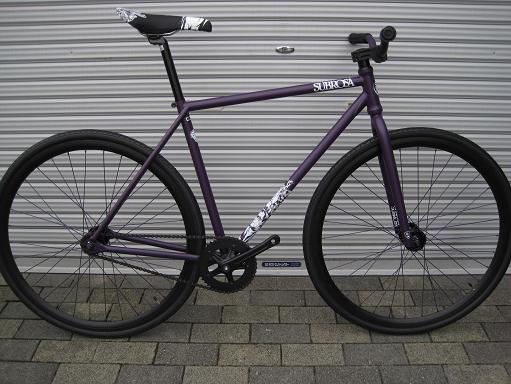

Subrosa Letum Fixed 2011

Description:

The entry level to our fixed gear line shares lot of the details and features of our Malum, at a more affordable price.

Details:

Release Date:

  • October 2010

Manufacturer:

  • Subrosa Brand

MSRP: n/a

Color(s):

  • Purple Kush

Size(s):

  • Small
  • Medium
  • Large

Wheel Size:

  • 700c

Gallery:

Specifications:

  • New longer rear dropouts
  • Down tube gusset
  • high flanged hubs
  • BMX inspired fork
  • 32mm wide tires, with clearance for wider
  • Alloy 3pc cranks
  • Mitered seat tube with built in clamp
  • The Shadow Conspiracy grips
  • Railed seat
  • FRAME SMALL Letum Fixed 100% Japanese seamless chromoly TT and ovalized DT — 74 degree HT / 75.5 degree ST / 515mm ST length / 545mm TT length / 400mm CS
  • FRAME MEDIUM Subrosa Fixed 100% Japanese seamless chromoly TT and ovalized DT — 74 degree HT / 75.5 degree ST / 540mm ST length / 585mm TT length / 400mm CS
  • FRAME LARGE Subrosa Fixed 100% Japanese seamless chromoly TT and ovalized DT — 74 degree HT / 75.5 degree ST / 560mm ST length / 590mm TT length / 400mm CS
  • FORK Subrosa chromoly steer tube, 1020 hi-tensile steel — 28mm offset with tapered legs and integrated bearing race
  • BARS Subrosa 100% chromoly 2.0″ rise / 10 degree backsweep / 3 degree upsweep / 20.75″ wide
  • GRIPS Shadow Finger Banger Large grips without flanges
  • BAR ENDS Shadow Nylon Push In Bar Ends
  • STEM Custom Forged Subrosa Hold On alloy front load stem
  • RIMS 32H alloy deep V 700c x 19mm
  • FRONT HUB 3/8 loose ball high flange alloy track hub
  • REAR HUB 3/8 loose bearing high flange double sided alloy track hub
  • TIRES 700c x 32c front and rear
  • CRANKS Classic style 165mm alloy with sealed bearing euro BB
  • SPROCKET Alloy 130 BCD
  • GEARING 44–16 gearing ( includes freewheel and fixed cog)
  • CHAIN Taya 410
  • PEDALS Shadow Ravager Plastic with plastic clips
  • BRAKES Front dual pivot with top mount lever
  • SEAT Subrosa Fixed saddle
  • POST Alloy micro adjust — 350mm length, 27.2mm diameter
  • SEAT CLAMP Intergrated into frame
  • WEIGHT 22.3 lbs
