Starfuckers Xenon Frame

Description:

Original PIST frame made by 4130cro-mo.

A frame with an elevated chainstay motif.
It is a masterpiece that is studded with the ideas of each rider here and there.　

Using American FRAMETUBE, it has a whipped ride that is unique to chrome molybdenum.

Color is chrome plated.

The fork and rear end are adapted to various scenes.

The fork can be used properly with 0mm offset and +35mm.

Also, since the rear end has an end claw extending diagonally downward, it is a device that allows you to change the angle of the head tube by changing the length of the chain and the number of teeth of the COG.

For example, in the case of a HUB with COG on both sides, if you use 15T on one side and 17T on one side, the head angle will change by 1° just by replacing the rear wheel.

Similarly, the BB position can be UP BB by lengthening the chain.

We have a sample at our company, so please come and take a test drive.

Details:

Release Date:

  • February 2009

Manufacturer:

  • Starfuckers

MSRP: $975

Colors:

  • Chrome

Size(s):

  • S (53cm)
  • M (55cm)
  • L (57.5cm)

Wheel Size:

  • 700c

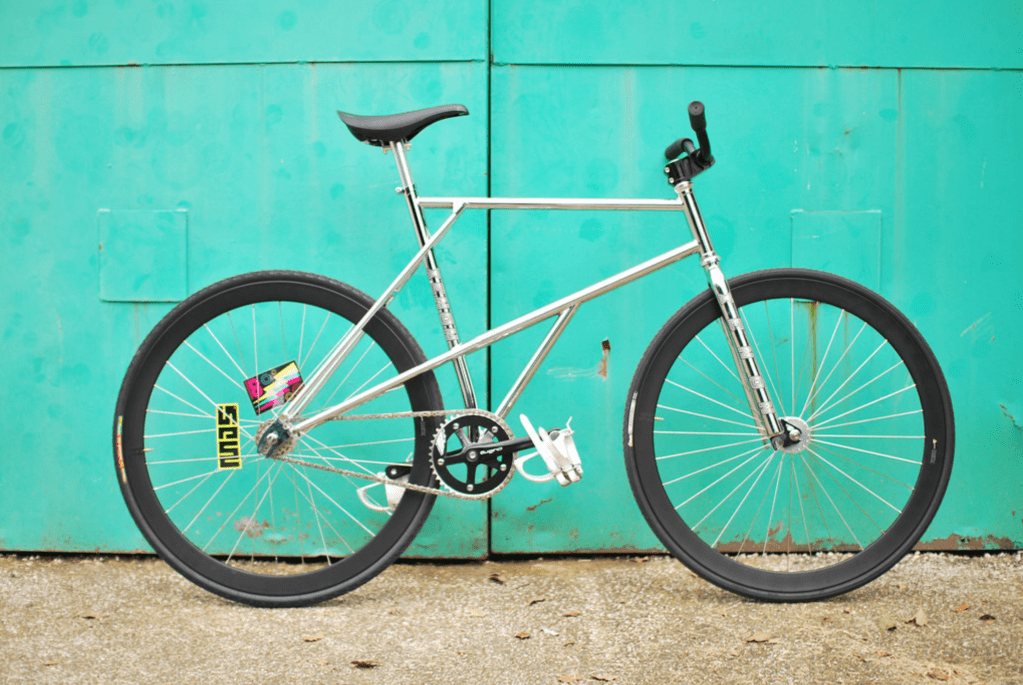

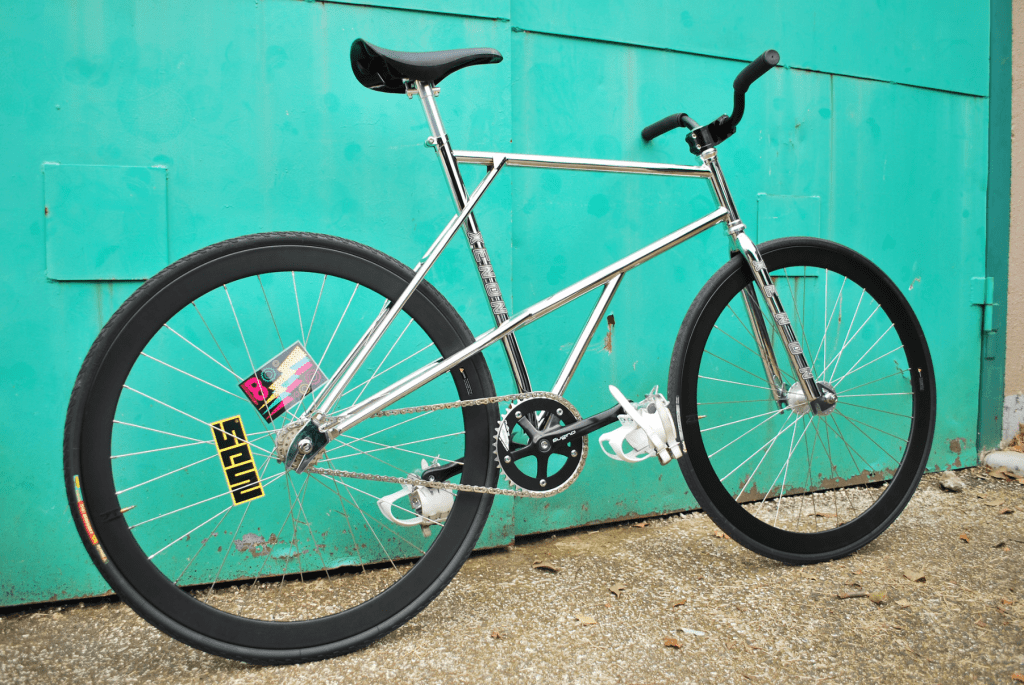

Gallery:

Specifications:

  • Overview of M-SIZE
  • TOPTUBE555mm
  • SEATTUBE 520mm
  • BB HANGER 40mm～20mm
  • SEATPOST diameter 27.2mm
  • HEADTUBE ANGLE71°～73.5°W-ENDFORK OFFSET 0mm＆+35mm
  • COLOR CHROMIUM PLATING　
  • front 700c
  • offset 35°
  • clip SF 4gate Msize
  • kicks 27cm
  • bar spinable
  • Frame: 4130 CroMo Steel Tubing.
    Head Set: Cane Creek/ Tange Sealed bearing Headset 1 1/8″
    B/B: 103mm/68mm/JIS Sealed Bearing
    B/B Height: 40mm~20mm Adjustable with chain length.
    Rear End: 120mm spacing. (Rear End Length:55mm)
    Front End: 100mm spacing.
    Seat Post size: 27.2mm
    HeadTube Angle: 71~73.5 (Adjustable with half link chain.)
  • Fork: 4130 CroMo Steel Tubing.
    Double End for Front Fork: 0mm or +35mm
  • Small – 53cm
    Top Tube-535mm SeatTube-495mm SeatPost:27.2mm
    B/B 40mm~20mm
    Head Tube Angle: 71~73.5D
    W-end fork: 0mm or +35mm(Off set)
    Color: Chromium Plating
  • Medium – 55cm
    Top Tube-555mm SeatTube-520mm SeatPost:27.2mm
    B/B 40mm~20mm
    Head Tube Angle: 71~73.5D
    W-end fork: 0mm or +35mm(Off set)
    Color: Chromium Plating
  • Large – 57.5cm
    Top Tube-580mm SeatTube-545mm SeatPost:27.2mm
    B/B 40mm~20mm
    Head Tube Angle: 71~73.5D
    W-end fork: 0mm or +35mm(Off set)
    Color: Chromium Plating
