Specialized P.Fix

Gallery:

Specifications:

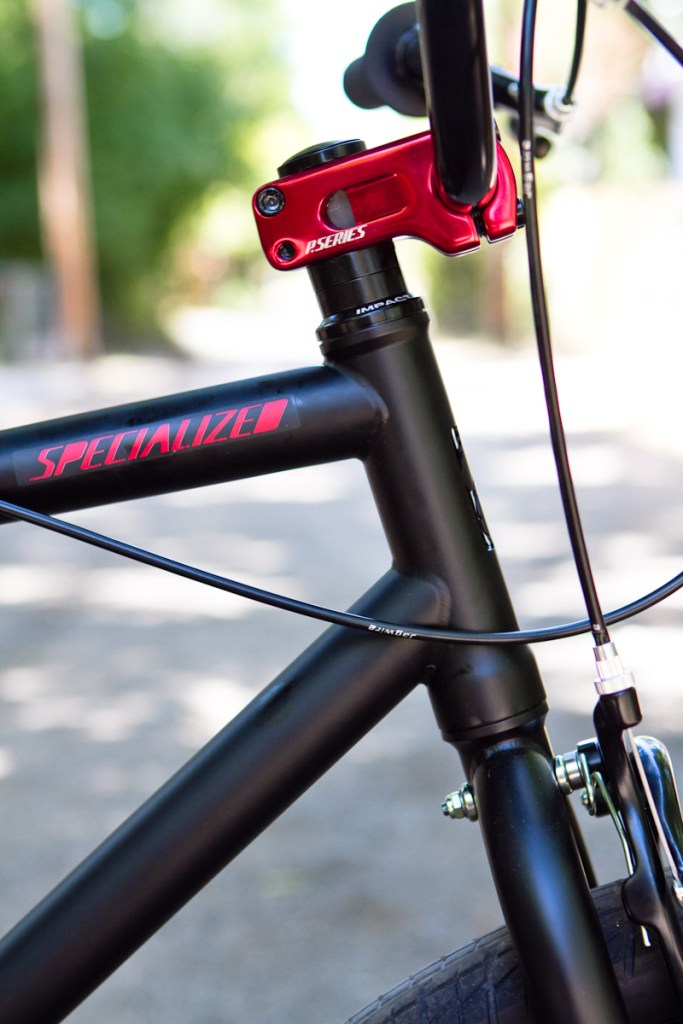

• Butted, single-speed-specific, Reynolds 520 Cr-Mo frame with integrated headset, MID BB, and 3D-forged horizontal dropouts with integrated chain tensioner has perfectly dialed geos for fixed-gear freestyle
• P. Series butted and tapered Cr-Mo rigid fork is light, but strong enough to handle heavy abuse
• 36-spoke, double-walled, 26″ P. FIX wheelset and cartridge bearings are built to withstand endless abuse
• Ride dirt, park, or street on the Specialized Compound Control tires, with dual-compound traction, low rolling resistance, and rounded profile
• BMX style, 3-piece tubular, spline drive Cr-Mo crankset is strong and light to boost with confidence; singlespeed 25t chainring resists bending and delivers the clearance you need
• Press-in MID BB is light, durable, and easy to service
• SBC lightweight plastic platform pedals and retention straps
• New-school 720mm butted, heat-treated Cr-Mo handlebar w/drop-type front-load forged stem
• BMX-style flange grips with endplug
• One-piece, 10t cog is convertible between a fixed gear or freewheel setup
• Super-light and durable one-piece saddle/post combo can take a serious beating

FRAME	P. Series double butted Reynolds 520, FGFS geo, singlespeed-specific, integrated headset, MID BB shell, 3D-forged horizontal dropouts, removable “U” brake bosses, w/ integrated chain tensioners
FORK	Hi-Ten tapered and butted Cr-Mo blades, 1-1/8″ threadless, 5mm dropouts for 3/8″ axle
HEADSET	Integrated 1-1/8″ threadless, Campy-style, full cartridge bearings

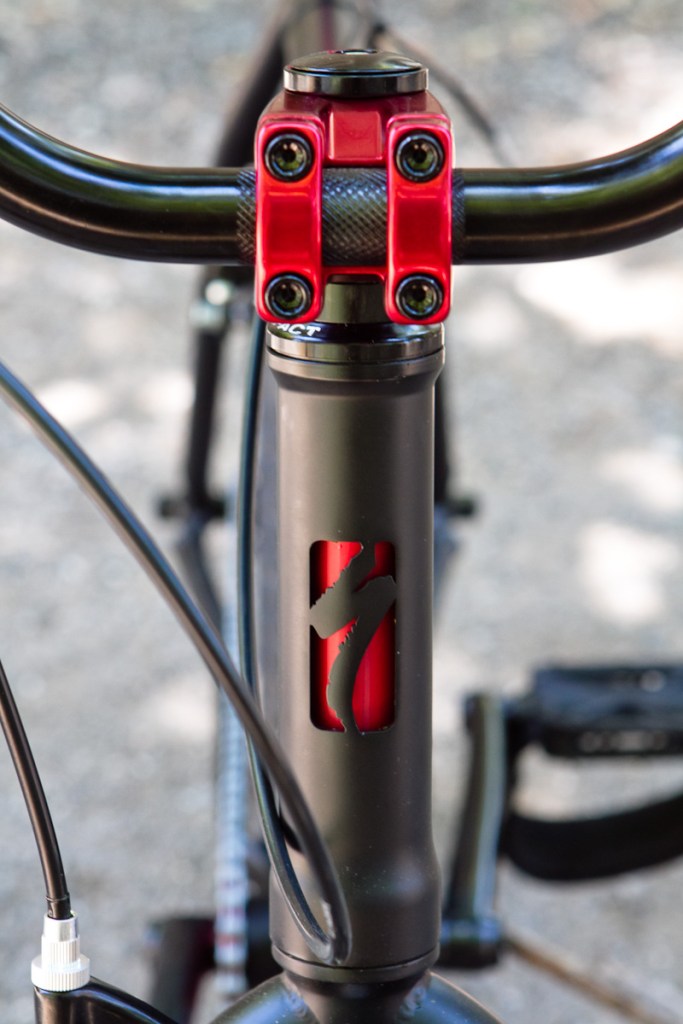

STEM	P. Series drop type, forged alloy, front load w/ CNC side holes, black hardware, 22.2mm
HANDLEBARS	Butted Cr-Mo riser bar, 75mm rise, 8º backsweep, 2º upsweep, 22.2mm
GRIPS	P. Grip, flanged soft compound, open end w/ endplug, 150mm
FRONT BRAKE	N/A
REAR BRAKE	Tektro U-brake, alloy, soft compound pads
BRAKE LEVERS	Alloy “V”-brake, two-finger, linear pull
CASSETTE	Singlespeed, convertible fixed/freewheel, 10t
CHAIN	KMC Z510XRB, 1/2″ x 1/8″, heavy duty, anti-drop inner links
CRANKSET	3pc. tubular, heat-treated Cr-Mo for 48 spline, 175mm length
CHAINRINGS	CNC cut 6061, 25T, Motostar design
BOTTOM BRACKET	MID BB, 2x sealed cartridge bearing w/ 19mm, 8-spline spindle, alloy tube, and cone spacers
PEDALS	P. Lo Pro nylon platform w/ molded pins, loose ball, 9/16″, w/retention straps
RIMS	P. 26, alloy double-wall, 36mm, pinned, 36h

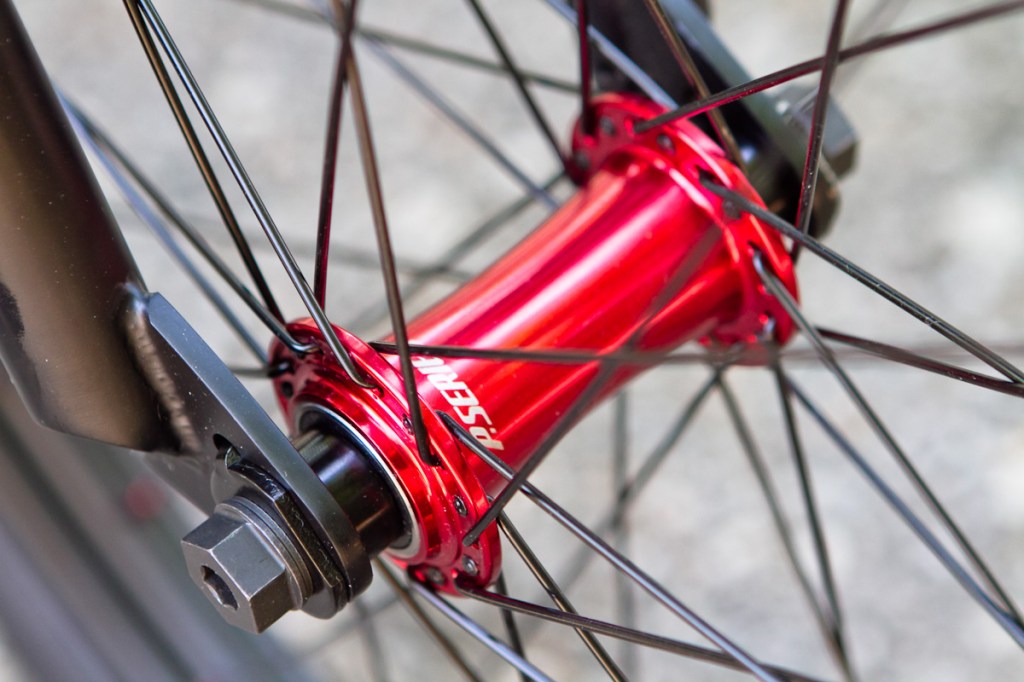

FRONT HUB	Mid-flange, 2x sealed cartridge bearing, 3/8″ forged female bolt-in axles w/ 7075 alloy inner axle, 36h

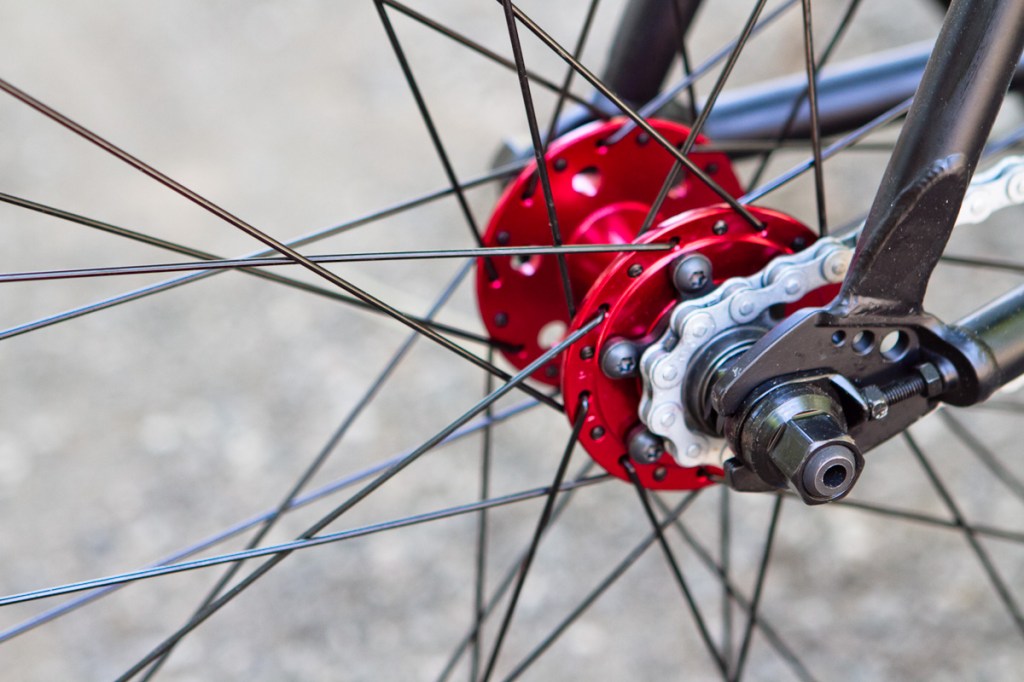

REAR HUB	Rear hub, convertible fixed/freewheel cog driver cassette, 4x sealed cartridge bearing, CNCd 10t cog driver, hollow 14mm Cr-Mo axle, 23mm contact, 17mm axle nuts, 36h
SPOKES	Stainless, 2.0mm (14g)
FRONT TIRE	Specialized Compound Control, 60 TPI, aramid bead, 26x 2.2″
REAR TIRE	Specialized Compound Control, 60 TPI, aramid bead, 26x 2.2″
INNER TUBES	Schrader valve
SADDLE	P. Series, 1pc co-molded composite saddle and alloy seat post combination, w/ embossed “P. Series” logo padded cover
SEATPOST	Alloy, 25.4mm, no offset
SEAT BINDER	Integrated Cr-Mo bolt and nylock nut

Geometry

	S	M	L
Fork Length	417mm	417mm	417mm
Top Tube Length (Actual)	537mm	569mm	594mm
Fork Offset	31mm	31mm	31mm
Seat Tube Length, Center to Top	443mm	453mm	483mm
Bottom Bracket Drop	-2mm	-2mm	-2mm
Bottom Bracket Height	341mm	341mm	341mm
Wheel Base	995mm	1016mm	1040mm
Standover Height	793mm	817mm	842mm
Stack	518mm	521mm	541mm
Reach	414mm	444mm	436mm
Head Tube Length	135mm	135mm	155mm
Head Tube Angle	73°	74°	74°
Chainstay Length	390mm	390mm	390mm
Seat Tube Angle	74.5°	74.5°	74.5°
Crank Length	165mm	170mm	175mm
Handlebar Width	720mm	720mm	720mm
Stem Length	40mm	50mm	50mm
Seatpost Length	200mm	200mm	200mm
