Description:

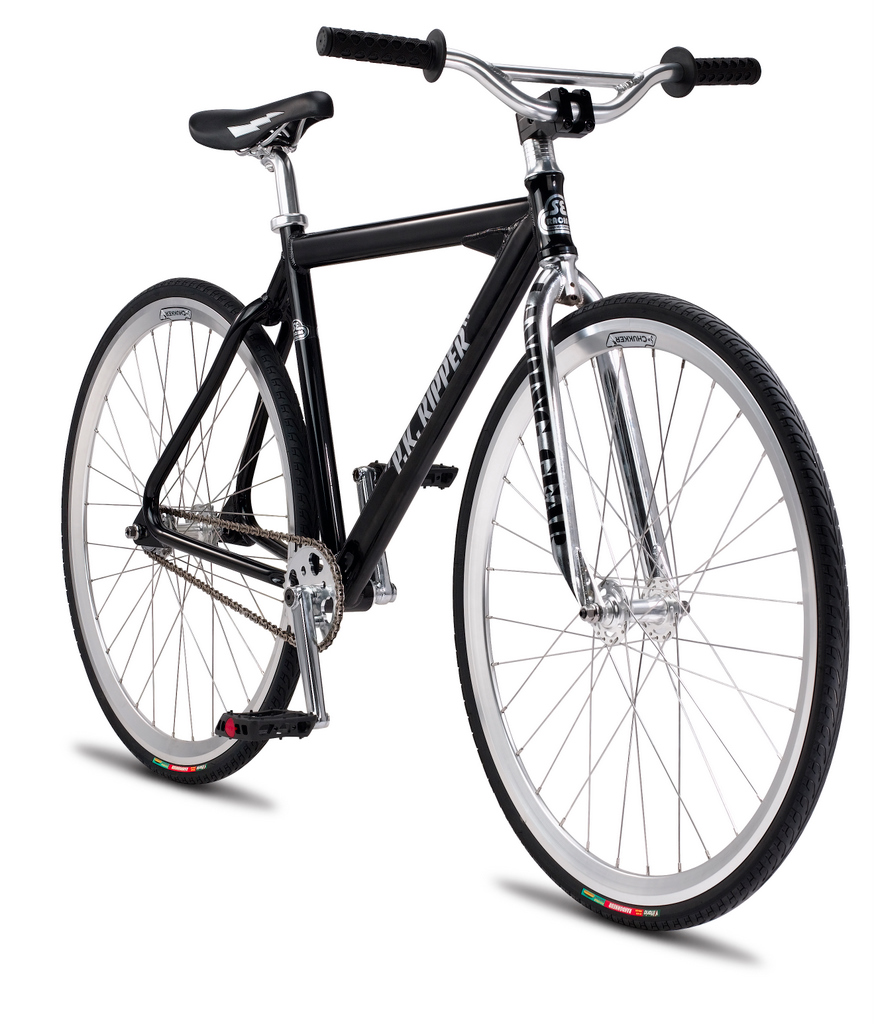

We took the PK Ripper fixed gear back to the drawing board for 2011. The frame has been completely redesigned with 6066 alloy tubing & is now strong as heck. Pair this up with 32c Vittoria Randonneur tires, Odyssey pedals, & heat treated forks & you’ll see that this bike is 100% legit.
Details:
Release Date:
- November 2011
Manufacturer:
MSRP: n/a
Color(s):
- Black
Size(s):
- 44cm
- 49cm
- 53cm
- 58cm
Wheel Size:
- 700c

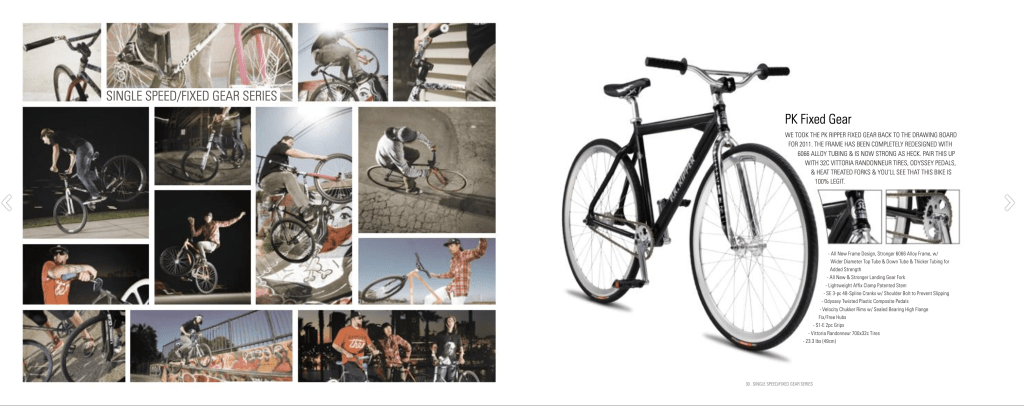

Gallery:
Specifications:
Sizes
- 44cm, 49cm, 53cm, 58cm
Color(s)
- Black
Frame
- Compact Frame Geometry, 6066 Aluminum Floval Tubing, Internally Machined Integrated Head Tube, Looptail Rear End, Retro Dropouts & Gussets, All Sizes Can Barspin
Fork
- Cr-Mo Landing Gear
Crankset
- 3-pc Cr-Mo 48-Spine, Euro Sealed Mid Bearing, 33T
Pedals
- Odyssey Twisted Plastic Composite
Chain
- KMC K710SL
Wheelset
- SE Sealed Bearing High Flange Alloy 32H Fixed/Free Hubs w/Velocity Chukker Double Wall Rims, 13T Fixed Cog & 13T Freewheel
Tires
- Vittoria Randonneur 700x32c
Brakes
- Tektro 316 Dual Pivot Caliper F&R
Brake Lever
- Tektro RX1.0 2-Finger
Headset
- Tange 1 1/8″ Integrated Threadless, Cartridge Sealed
Handlebar
- SE 2.5″ Rise Alloy Riser Bar w/ Crossbar, 23″ Wide
Stem
- Affix Strangler 6061 T-6 Alloy, Zero Degree Drop
Grips
- S1-E Dual Ply Retro Grip
Seat
- SE Boss Seat w/ Bottle Opener
Seat Post
- 3-D Forged Alloy One Piece, Aluminum 27.2
Extras
- Top Tube Pad, Touch-Up Paint
Weight- lbs/kg
- 25.4 lbs / 11.5 kg
Geometry
| Sizes | 44cm | 49cm | 53cm | 58cm |
|---|---|---|---|---|
| Effective TT Length | 553 | 560 | 580 | 595 |
| Head Tube Angle | 73° | 73° | 74° | 74° |
| Seat Tube Angle | 74.5° | 74.5° | 74.5° | 74.5° |
| Chainstay | 410 | 410 | 410 | 410 |
| Wheelbase | 993 | 1000 | 1011 | 1027 |
| Head Tube Length | 90 | 95 | 135 | 185 |
| BB Height | 282 | 282 | 282 | 282 |
| Stand Over Height | 740 | 766 | 807 | 855 |
| Crank Length | 165 | 165 | 170 | 170 |
| Stem Length | 48 | 48 | 65 | 65 |
| Handlebar Width | 580 | 580 | 580 | 580 |
