Rinng Force Hub

Description:

特徴：

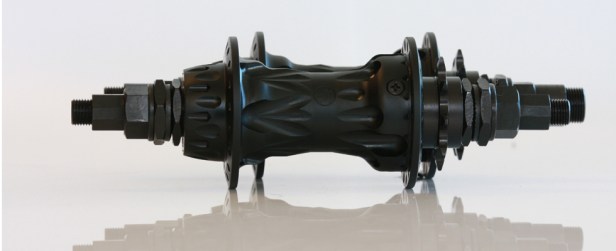

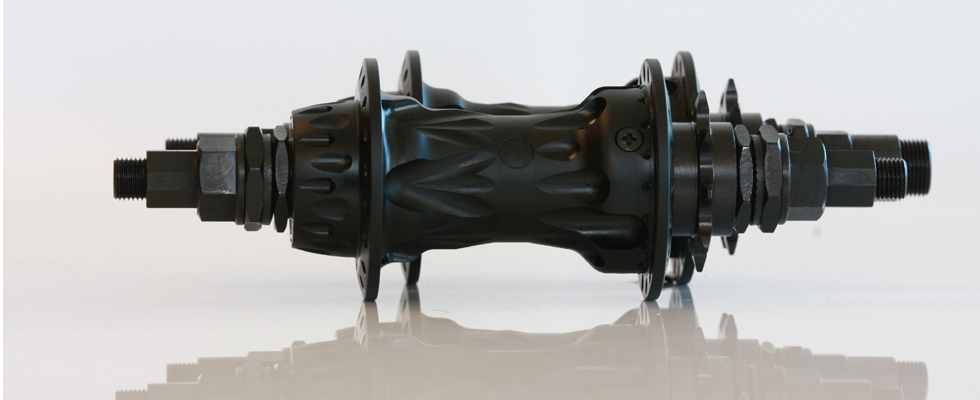

〈リア〉
・高剛性＆MICRO DRIVER COG 9Tを装着可能としたFGFS FIXED GEAR HUB。
9-14t標準で選択が可能、15t~はオプションにて作製可能。
・HUBシェル　4pc、コグ　2pc　計6pcのベアリングを採用。
・シャフトは、 14mm or 10mm Axle,  bolt type 10mm(axle Bolt)全てが選択可能。
・ホール数も32，36選択可能。
・リアHUBには、COG-DRIVERは1pc付属（9t-14tで選択可能）
・オプションでオリジナルBODYカラー（アルマイト）オーダー可能。

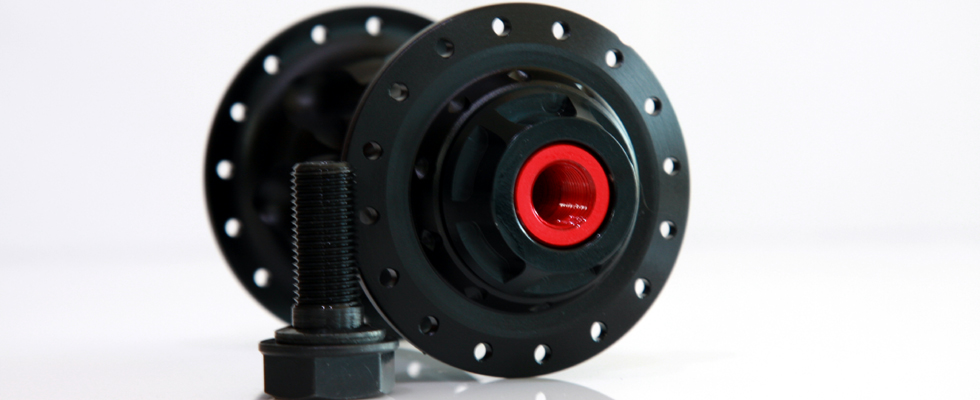

〈フロント〉
・高剛性を可能としたfront HUB。
・4pc　シールドベアリングを採用。
・シャフトは、シャフト・ボルトタイプが選択可能。(3/8,Axle or Axle Bolt)
・ホール数も32，36選択可能。
・オプションでオリジナルBODYカラー（アルマイト）オーダー可能。

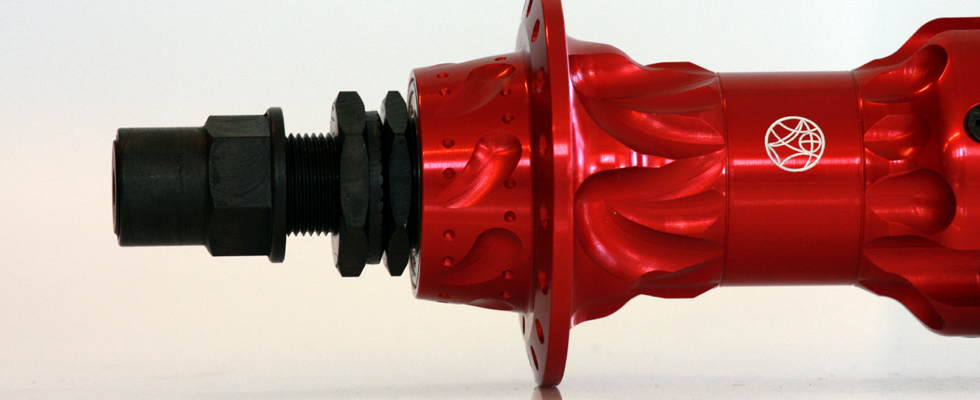

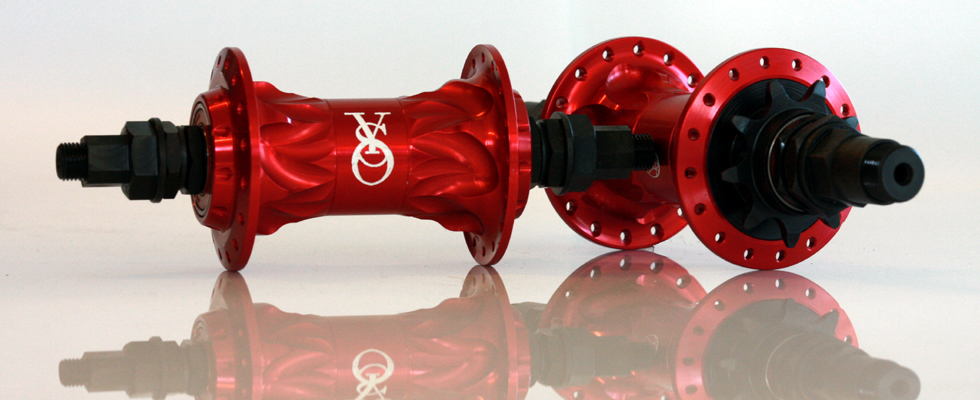

FORCE hubをべースに、Fish & Chips the don”YSO”のイメージカラーである　”赤”を採用し、
FORCEの特徴でもある、bodyの彫り込みを、彼のイメージで表現しました。

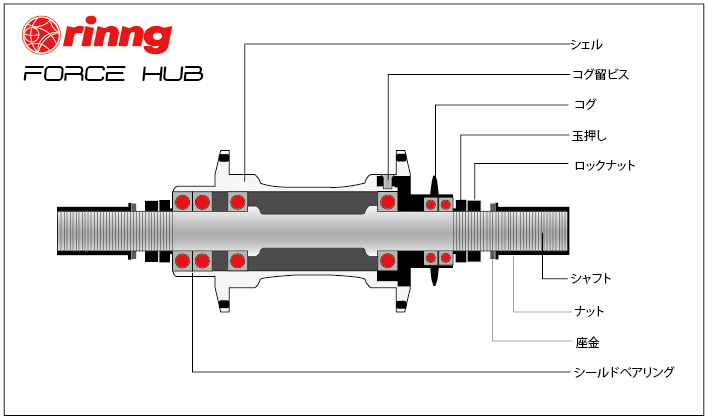

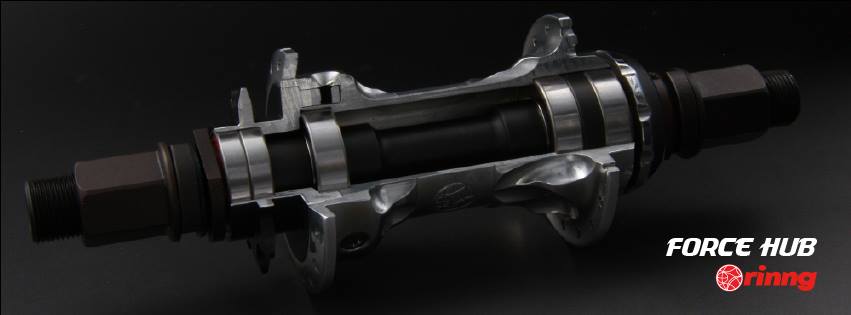

Basic Structure
FORCE HUb was designed based on the concept of a Fixed Gear HUB that can withstand high loads.

By cutting almost all parts using a lathe , it is possible to rotate on the same core , allowing you to experience smooth rotation, and by cutting from a single lump of metal, there is no unevenness in the material. However , we were able to achieve an improvement in strength. It is different from conventional HUBs by using four sealed bearings with
a basic dynamic load rating　of 375 kgf and a double bearing of 212 kgf inside the cog , for a total of six (*rear), and by placing the bearings in a well-balanced manner on the inside and outside of the flange. High rigidity , stability , and smooth rotation were achieved. By arranging the bearings in this way, lateral and diagonal loads are not received by a single bearing, but are distributed across multiple bearings, ensuring stable and smooth rotation even during high-impact tricks. You can get it.

Also, on the front HUB side, you can feel that the front is rotating smoothly when the bike is banking or entering a spin.
*Since the impact is greatest when the speed drops to 0 due to landing, etc., we believe that rolling will reduce wear and tear on the bike and parts.

---

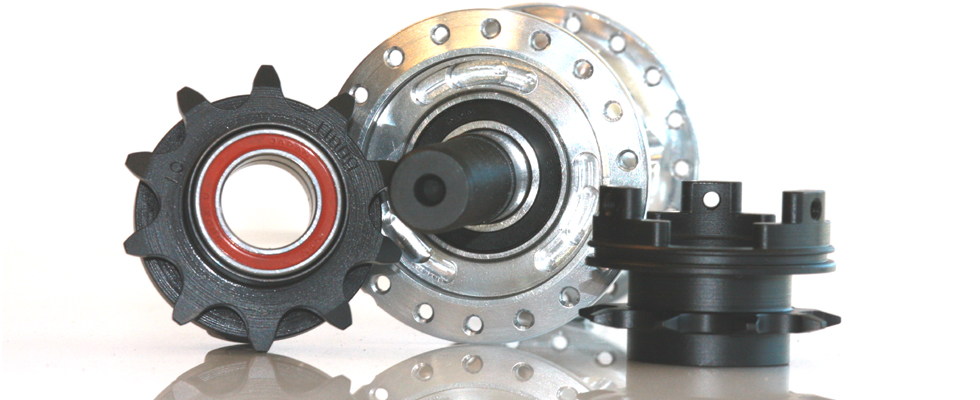

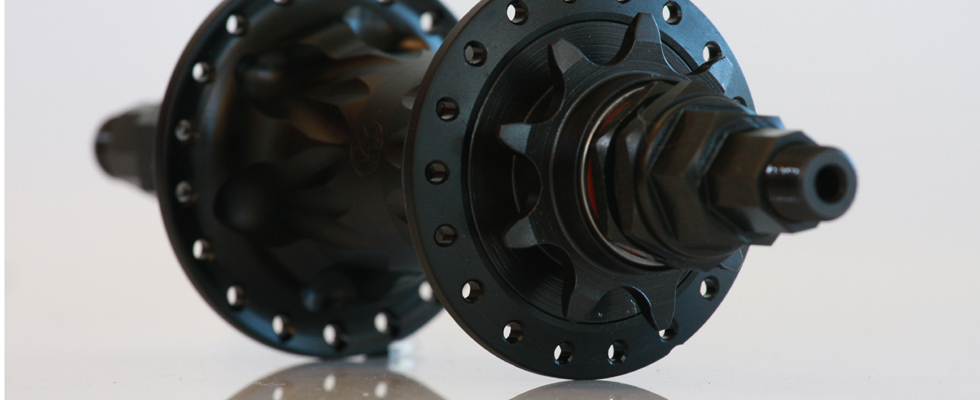

〈cog driver〉
The cog body is also machined as a single piece from chromoly by CNC.
Minimum 9t ~ can be installed .
The number of teeth is 9t-14t.
15t or more can be manufactured as an option.

<How to install the cog>

Create a convex part on the cog side and a concave part on the HUB body, fit them together (3 places), and
secure with screws and beads.

---

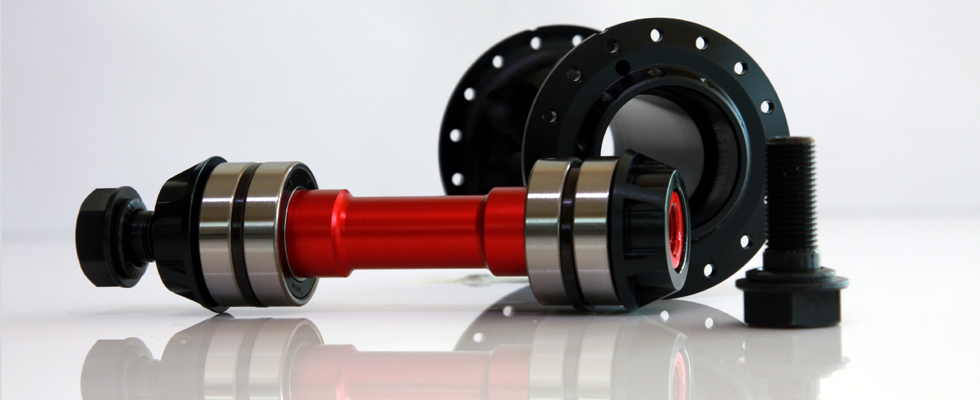

<shaft>

Manufactured from a piece of chromoly wood using a lathe.
Afterwards, it is carburized and quenched and polished to ensure accuracy.

For the bolt type, the bolts are made of chromoly (heat treated).
The inner shaft is made of duralumin.

---

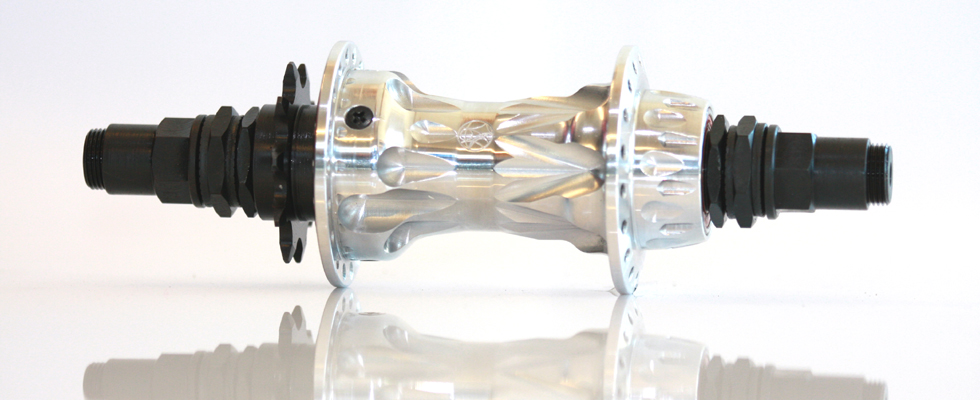

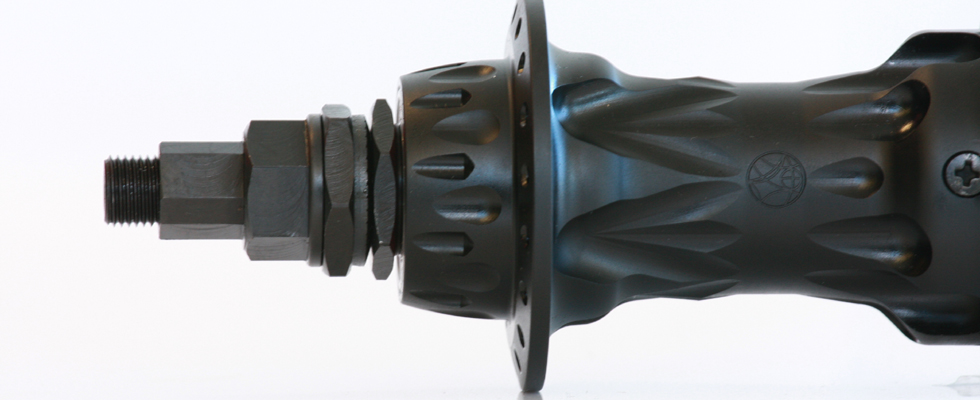

<HUB shell>

Machined from duralumin using a lathe.

---

<bearing>

We use all products from Japan’s proud NTN company.

---

All are handmade and machined on a lathe by Suzuki Parts .

Details:

Release Date:

• 2016

Manufacturer:

• Rinng Parts

MSRP: n/a

Color(s):

• Matte Black
• Polish
• YSO Signature Polished Red

Hole Count(s):

• 32h
• 36h

Axle Size(s):

• 3/8th
• 10mm
• 14mm

Attachment Type(s):

• Driver
