Description:

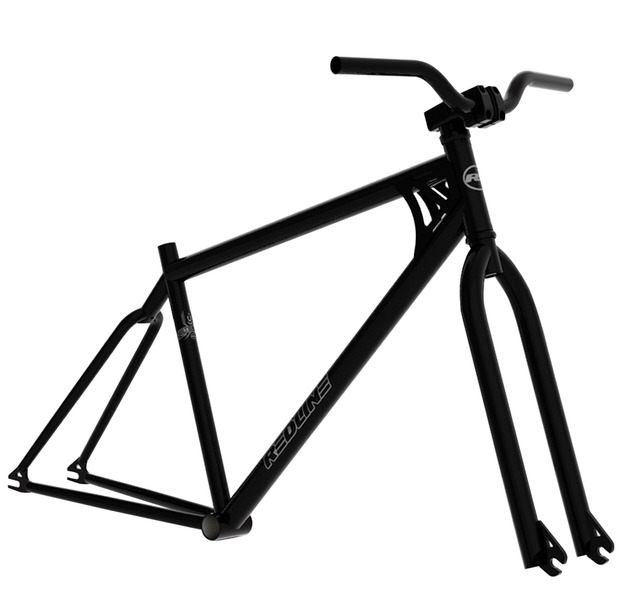

Taking Fixed Street riding to the next level. Heat treated chomoly frame with gusseted headtube and chainstays along with stout wishbone seatstays, makes this a great choice for your next suburban assault. The sturdy Urbis Nox fork is heat treated chromoly and peg compatible. The Urbis Nox is available as a frameset for 2011.
Details:
Release Date:
- September 2010
Manufacturer:
- Redline
MSRP: n/a
Colors:
- Gloss black
Size(s):
- S (44cm)
- M (50cm)
- L (54cm)
Wheel Size:
- 700c

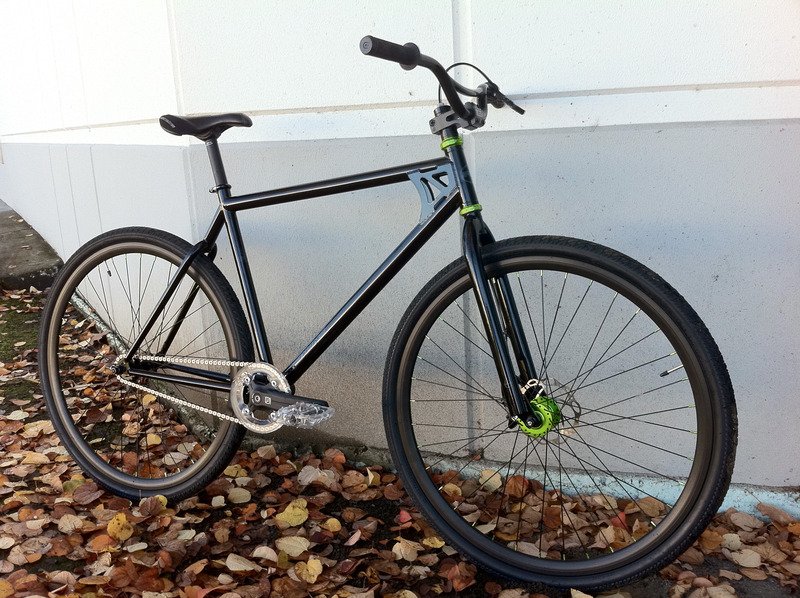

Gallery:
Specifications:
FRAME: Full Chromoly, Double Butted Main Tubes, 120mm Rear Spacing
FORK: Full Chromoly W/ Disc Tabs
| SIZE | Small | Medium | Large |
| Head Angle | 72 | 72 | 72 |
| Seat Angle | 73 | 73 | 73 |
| Top Tube | 590 | 605 | 620 |
| Chain Stay | 415 | 415 | 415 |
| BB Drop | 28 | 28 | 28 |
| Fork Offset | 25 | 25 | 25 |
| Wheel base | 1032 | 1047 | 1062 |
| Seat Tube | 440 | 500 | 540 |
| Head Tube | 125 | 125 | 125 |
| Standover | 757 | 791 | 826 |
| Crank Length | 165 | 165 | 165 |
| Stem Length | 50 | 50 | 55 |
| Bar Width | 550 | 550 | 550 |
