Redline 2010 Urbis

Description:

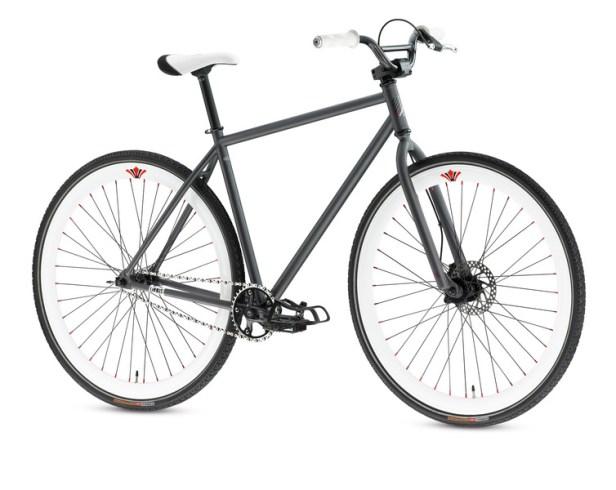

The wait is over. Redline’s new front disc brake fixie, the Urbis.

Details:

Release Date:

  • May 2010

Manufacturer:

  • Redline Bicycles

MSRP: $550

Color(s):

  • Satin Steel

Size(s):

  • Small
  • Medium
  • Large

Wheel Size:

  • 700c

Gallery:

Specifications:

  • FRAME – Full Chromoly, Double Butted with 120mm spacing.
  • FORK – Full Chromoly with disc tabs.
  • CRANK – Redline Alloy 36T.
  • WHEELS – White 700C deep V rims.
  • BAR – Redline Alloy JR Cruiser bar.
  • COLOR – Satin Steel.

Specs:

FrameRedline Full Chrome Moly, Double Butted Main Tubes,120mm Spacing
ForkRedline Full Chrome Moly, Disc Tabs
HeadsetThreadless 28.6mm
Frt DerNA
Rear DerNA
ShifterNA
CrankRedline Alloy 36T
BB  SetISIS, Hollow CR-MO Axle
Cogs16T Single Fixed
RimAllloy 36H Deep V
HubRL Nutted Disc Frt, Alloy Nutted Fixed – Free rear
Spoke14 Guage Stainless Alloy Nipples
Tire700 X 35 Reflector Side Wall
BarRedline Alloy JR Cruiser 550 mm x 90mm
StemRedline Alloy Forged
SaddleRedline Pivotal
Seat PostRedline Alloy  Pivotal 27.2 x 320mm
BrakesTektro Alloy Disc
Brake LeverTektro Alloy 2 Finger
PedalPolycarbonate Clear

Geometry:

SIZESmallMediumLarge
Head Angle717273
Seat Angle757472
Top Tube533.5577608
Chain Stay415415415
BB Drop747474
Fork Offset454545
Wheel base1007.81033.51029
Seat Tube440500540
Head Tube110121155
Crank Length165165170
Stem Length505055
Bar Width550550550
Standover75.779.182.6
