Profile Spline Drive Spider

Description:

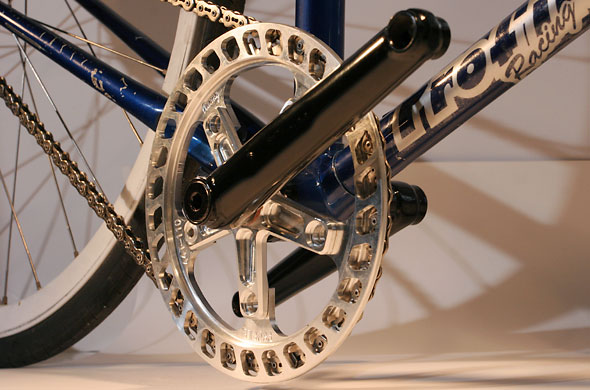

When mounted to a fixed gear bike, a standard BMX crankset has a major problem- the forward and backward pressure on a conventional BMX crank’s sprocket bolt saws at the the bolt and loosens it, which tends to damage the sprocket quickly. The spline drive system is an ideal way to solve that, since it places all of the force that had been on one bolt, and transfers it to the 48 splines of the bottom bracket spindle- the same 48 splines that hold the cranks in place.

Details:

Release Date:

  • October 2009

Manufacturer:

  • Profile Racing

MSRP: $74.95

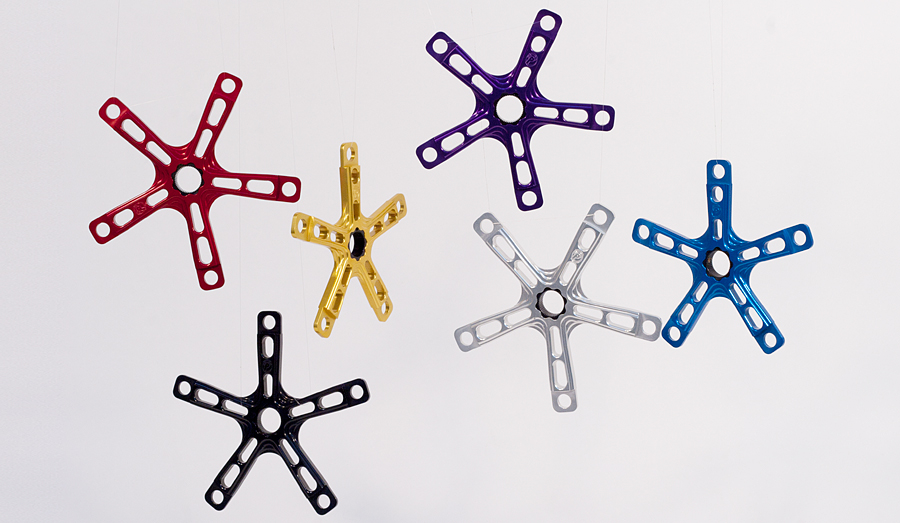

Color(s):

  • Black
  • Blue
  • Gold
  • Red
  • Silver

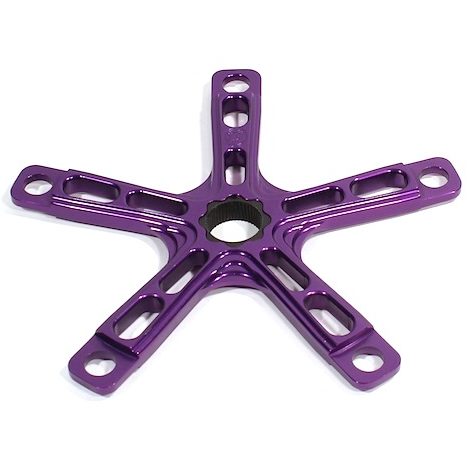

  • Purple

Spindle Size(s):

  • 19mm

Bolt Circle Diameter(s):

  • 130 BCD
  • 144BCD

Gallery:

Specifications:

SPIDER-SPLINE DRIVE(130mm BCD, 144mm BCD)

-Designed  for use with Profile Racing 3-Piece Race Chromoly Crankset and 19mm-48 spline axles.

-Will only work on 19mm-48 spline axles.

-Chainring can be mounted on inner or outer face of spider for chainline adjustability.

-These spiders work best with the Profile Internal Bearing Euro, American, MID, or Spanish BB’s.

Two styles of track/fixed chainring spiders available:
-5 Bolt 130mm BCD for 19mm splined axle
-5 Bolt 144mm BCD for 19mm splined axle

Colors:-Silver, Black, Red, Blue, Gold, Purple

Weight:
130mm: 82g/2.87 oz
144mm: 89g/3.11 oz
