Description:
Profile Fixed Hubs are strong enough for fixed freestyle, light enough for the velodrome, and stylish enough to ride to the bar.
Profile Fixed Hubs are currently available in seven colors, and new colors and limited colorways are being introduced all the time.
Profile Fixed Hubs have a 44mm chainline, and are currently available in a Fixed/Free configuration. A Fixed/Fixed model will be introduced by the end of summer ’08.
Profile Fixed Hubs are made in America.
Track Hubs are held to the same high quality standards of all other hub types that Profile Racing manufactures. Classic styling & amazing colors make these hubs stand out!
Details:
Release Date:
- 2007
Manufacturer:
- Profile Racing
MSRP: $147.99 – $237.99
Color(s):
- Black
- Blue
- Gold
- Green
- Polished
- Purple
- Red
- White
Hole Count(s):
- 28h
- 32h
- 36h
- 48h
Axle Size(s):
- 3/8″ (front + rear)
- 14mm slotted (rear)
- 14mm (rear)
Attachment Type(s):
- Threaded
Gallery:
Specifications:

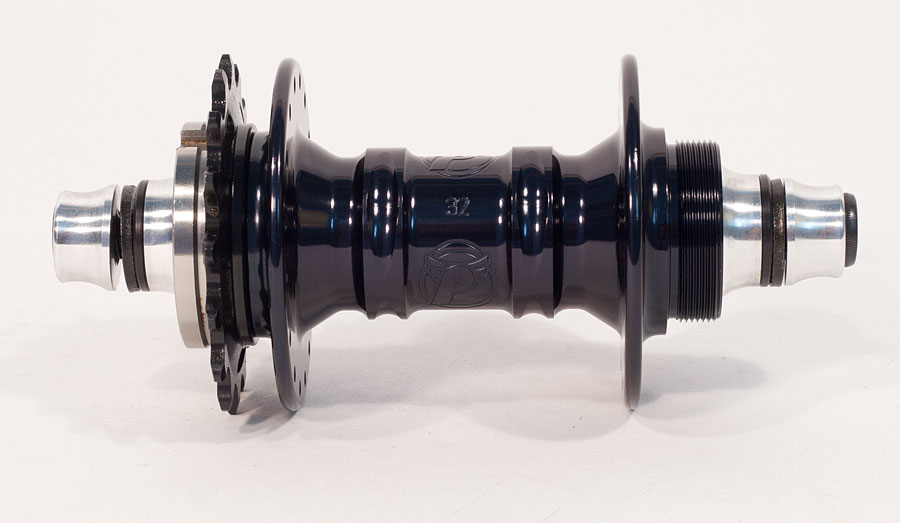

TRACK FIXED/FIXED REAR HUB:
BUILD YOUR OWN HUB (BYOH)
Choices for following:
-Hub Color
-Spoke holes
-Axle
-Axle Bolts: Choose any Chromo bolt option at NO EXTRA CHARGE!
Features of the Track Fixed/Fixed Rear Hub:
- Fixed cog threaded on BOTH sides of hub.
- Includes TWO English/ISO 1.29\” x 24 TPI lockrings-Cog(s) not included
- 28, 32, 36, 48 spoke hole drillings
- 120mm(standard track), 130mm(converted road), or 135 mm(converted MTB) rear hub spacing available
- True 3/8″ female threaded aluminum axle
- Bolt choices for 3/8″ threaded axle:
-Standard 3/8 socket head bolts(8mm hex)- come with anodized Volcano cones
-17mm Hex Head outer w/8mm internal hex
-Button Head w/8mm internal hex - Chromoly and Titanium bolts available
- 44mm fixed cog, 47mm freewheel chain line
- Equal sized high hub flanges for same length spokes front and rear
- Smooth, fast sealed bearings
- Made in USA
- Profile Track Cogs & Elite Freewheels sold seperately
Colors: Red, Black, Blue, Polished, Gold , Green, Purple, White
Weight:
Hub w/ Chromoly bolts: 270g/9.6 oz

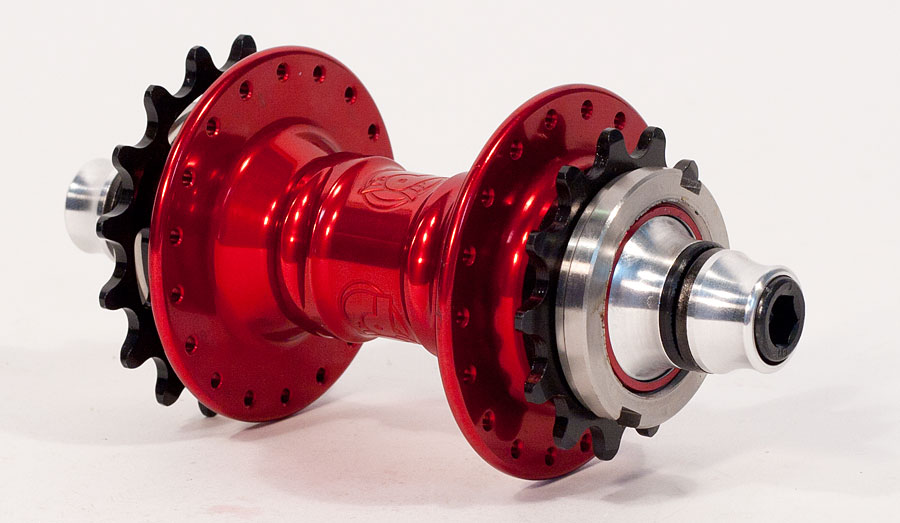

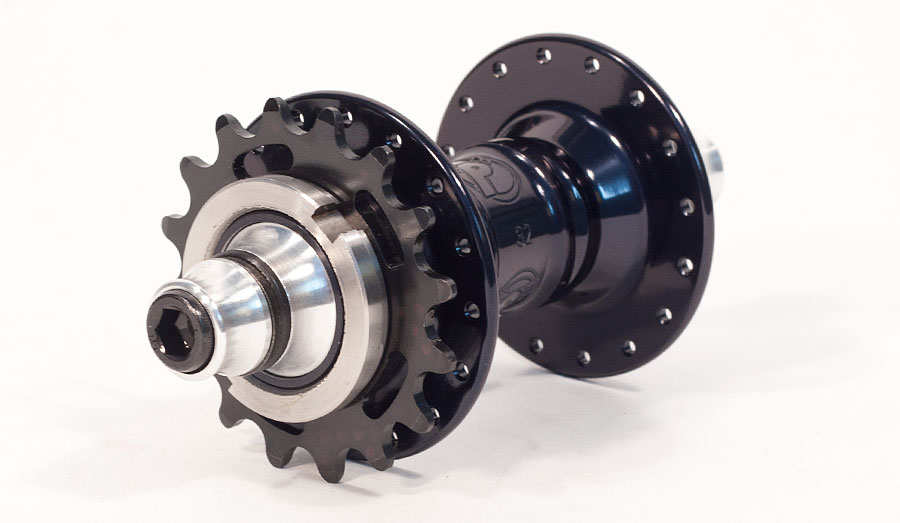

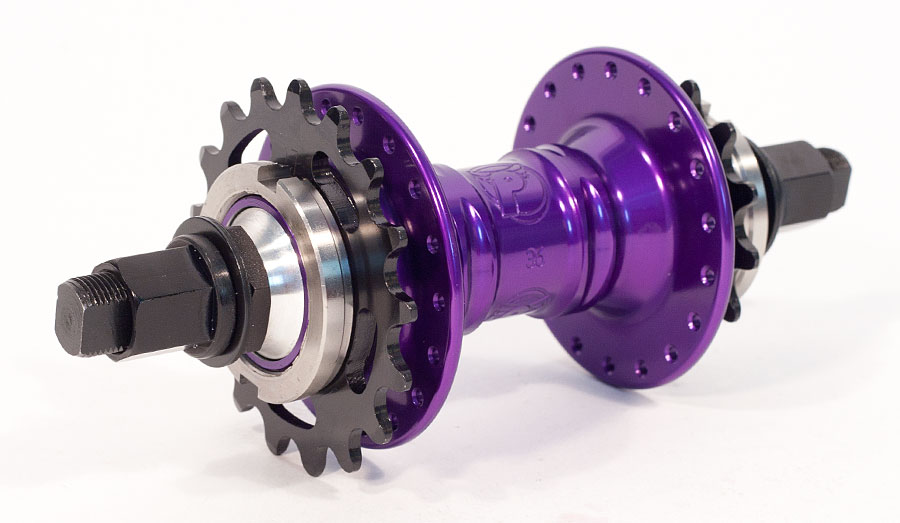

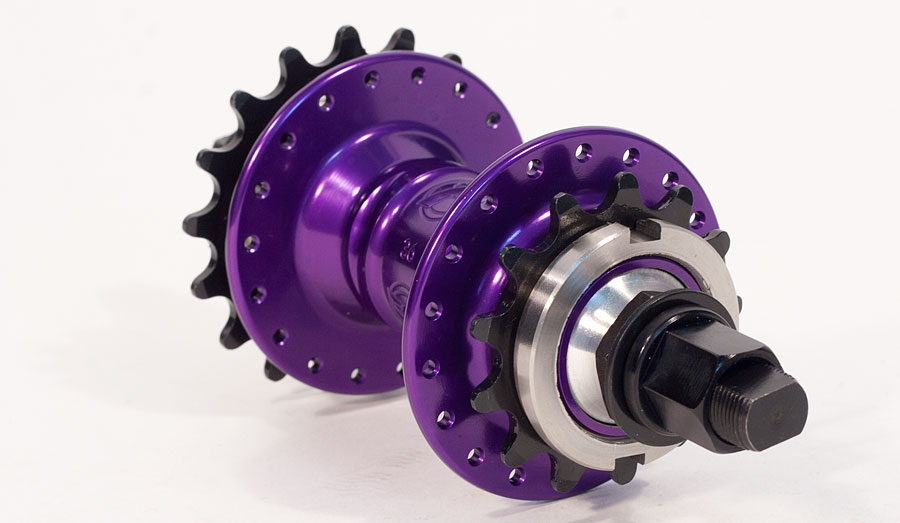

TRACK FIXED/FREE REAR HUB:
BUILD YOUR OWN HUB (BYOH)
Choices for following:
-Hub Color
-Spoke holes
-Axle
-Axle Bolts: Choose any Chromo bolt option at NO EXTRA CHARGE!
Features of the Track Fixed/Free Rear Hub:
- Fixed cog threaded on one side & freewheel threaded on the other
- Includes English/ISO 1.29\” x 24 TPI lockring-Cog not included
- 28, 32, 36, 48 spoke hole drillings
- 120mm(standard track), 130mm(converted road), or 135 mm(converted MTB) rear hub spacing available
- True 3/8″ female threaded aluminum axle
- Bolt choices for 3/8″ threaded axle:
-Standard 3/8 socket head bolts(8mm hex)- come with anodized Volcano cones
-17mm Hex Head outer w/8mm internal hex
-Button Head w/8mm internal hex - Chromoly and Titanium bolts available
- 44mm fixed cog, 47mm freewheel chain line
- Equal sized high hub flanges for same length spokes front and rear
- Smooth, fast sealed bearings
- Made in USA
- Profile Track Cogs & Elite Freewheels sold seperately
Colors: Red, Black, Blue, Polished, Gold , Green, Purple, White
Weight:
Hub w/ Chromoly bolts: 270g/9.6 oz

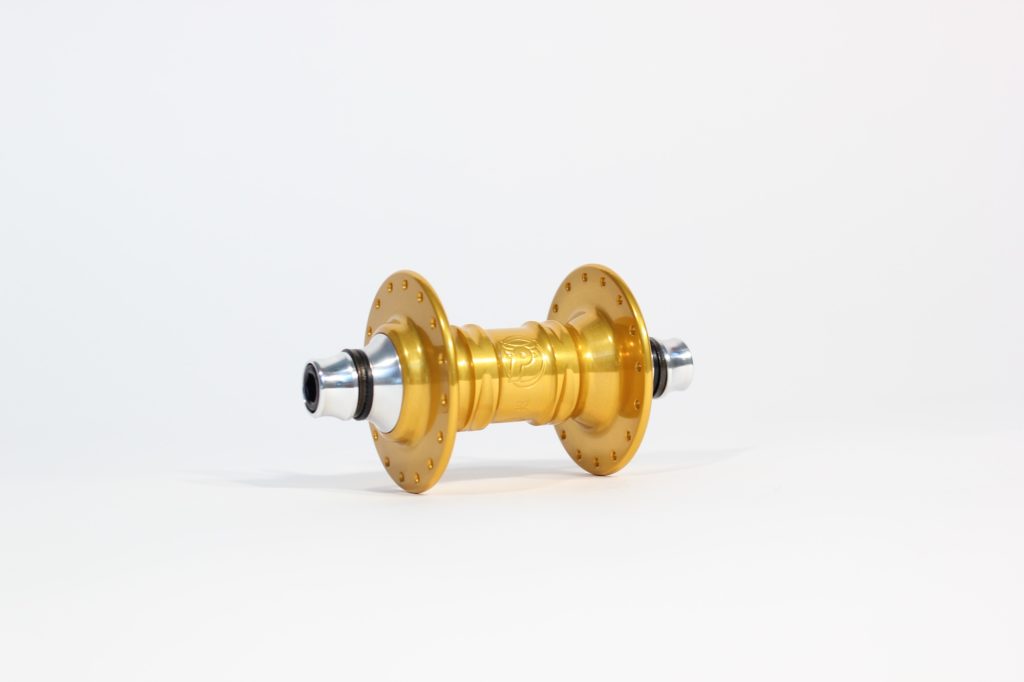

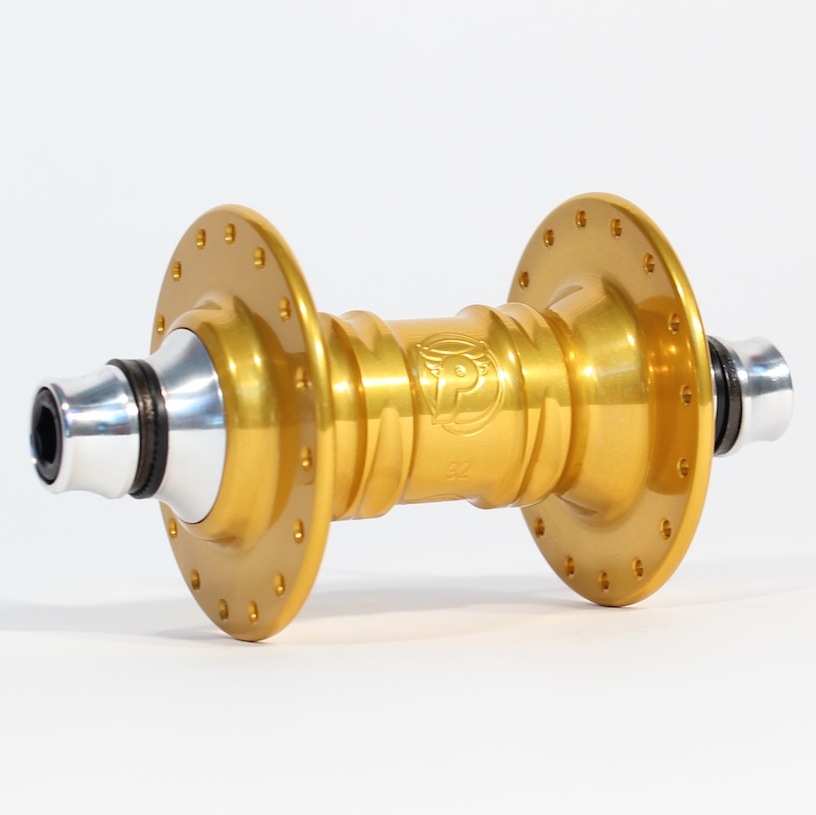

TRACK FRONT HUB:
BUILD YOUR OWN HUB (BYOH)
Choices for following:
-Hub Color
-Spoke holes
-Axle Bolts: Choose any Chromo bolt option at NO EXTRA CHARGE!
Features of the Track Front Hub:
- 28, 32, 36, 48 spoke hole drillings
- 100mm(standard track) front hub spacing
- True 3/8″ female threaded aluminum axle
- Bolt choices for 3/8″ threaded axle:
-Standard 3/8 socket head bolts(8mm hex)- come with anodized Volcano cones
-17mm Hex Head outer w/8mm internal hex
-Button Head w/8mm internal hex - Chromoly and Titanium bolts available
- Equal sized high hub flanges for same length spokes front and rear
- Smooth, fast sealed bearings
- Made in USA
Colors: Red, Black, Blue, Polished, Gold , Green, Purple, White
Weight:
Hub w/ Chromoly bolts: 262g/9.4 oz
