LDG Hammer Frame

Description:

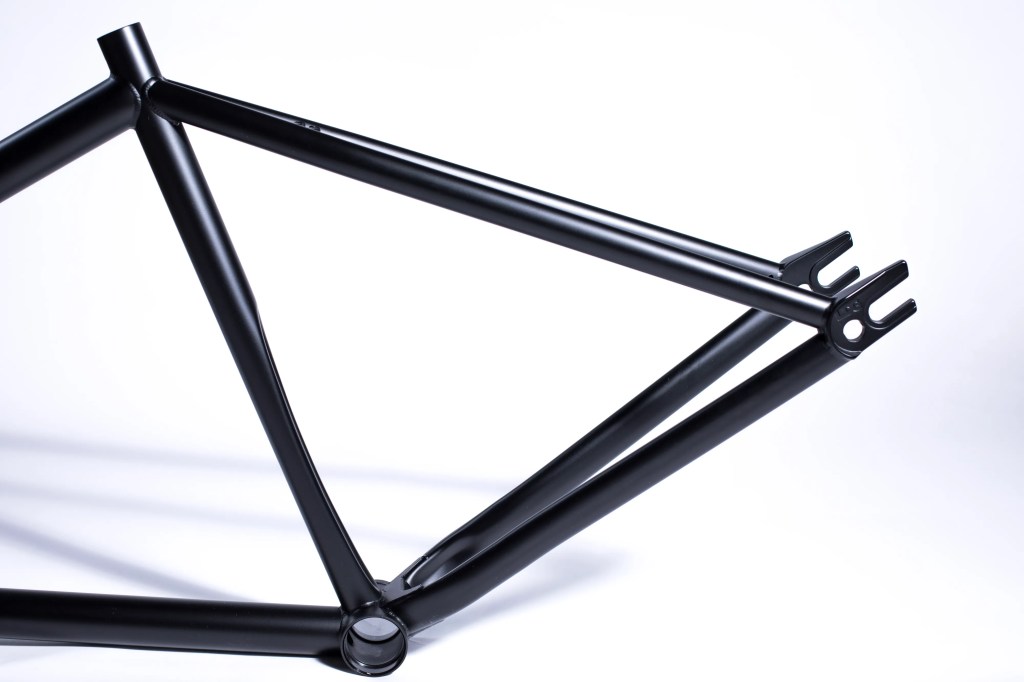

Over a year of solid development a dozen molds and multiple geometry changes we are glad to say that we now have our Hammer Framesets and Tank Forks are now officially available and in stock! Each frameset comes standard with 14MM rear dropouts and CNC machined axle guides to accept 14MM 10MM or 3/8” rear hubs via our stainless steel inserts. The Tank Fork also comes standard with 14mm fork dropouts including interchangeable 9mm inserts. Our machined rear axle guides ensure a solid fit and precise alignment to your wheels no matter what size hub you are running. Both the rear ball tensioner and CNC machined inserts have been mil-spec hard anodized (Type III) to provide superior resistance to abrasion and greater coating density than traditional anodizing.

LDG Hammer Frame Details Summary:

• Negative BB Drop

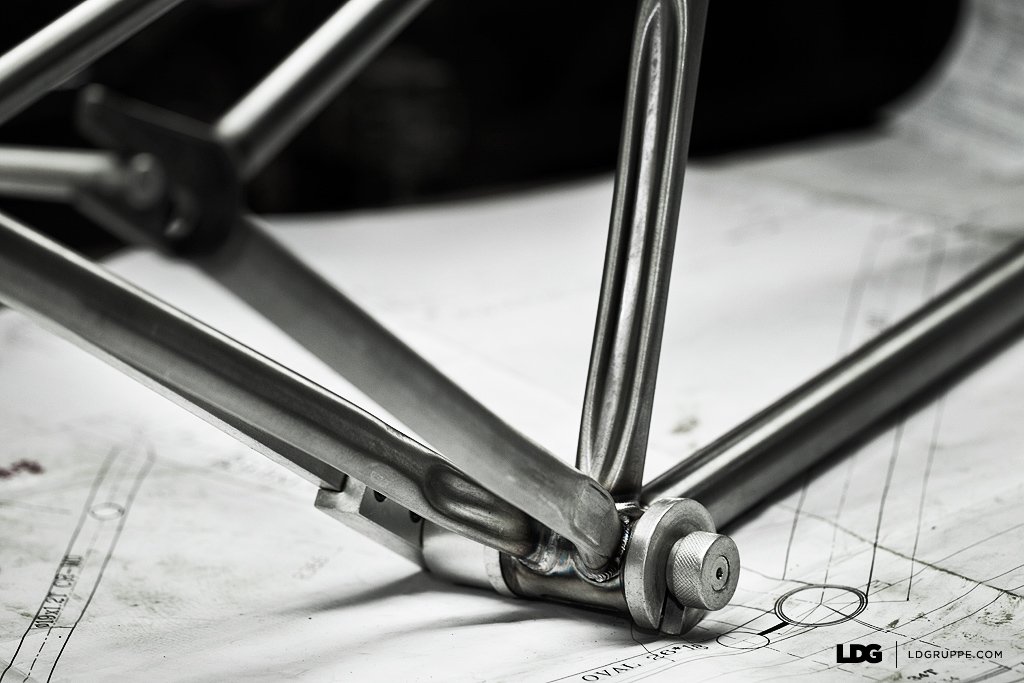

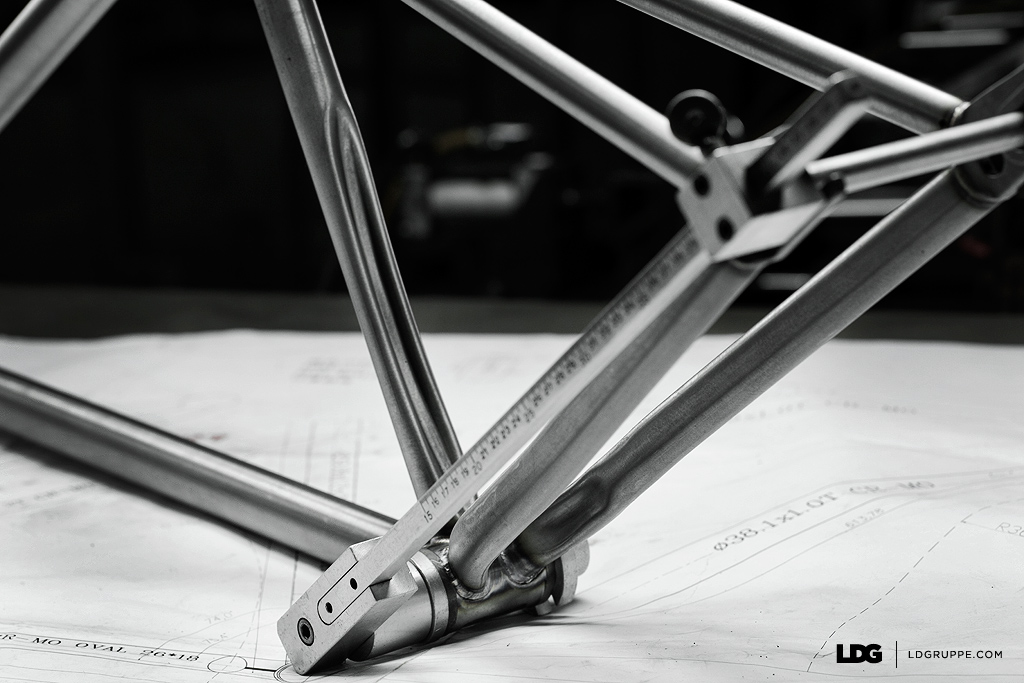

• Investment Casted Dropouts with CNC Machined Ball Adjusters & Axle Guides

• Gusseted Chainstay

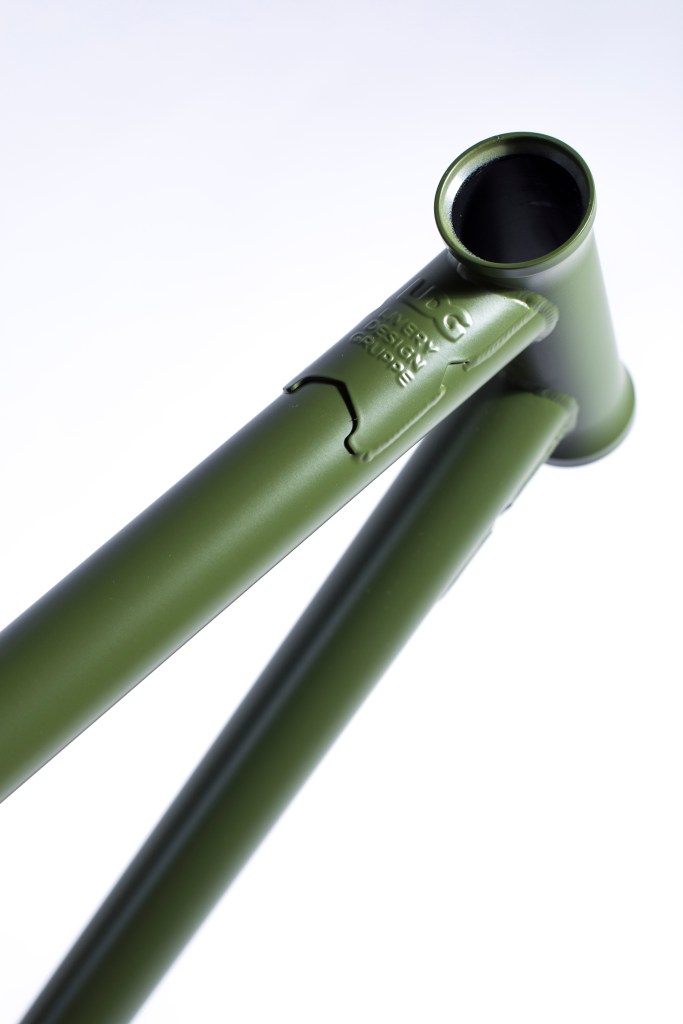

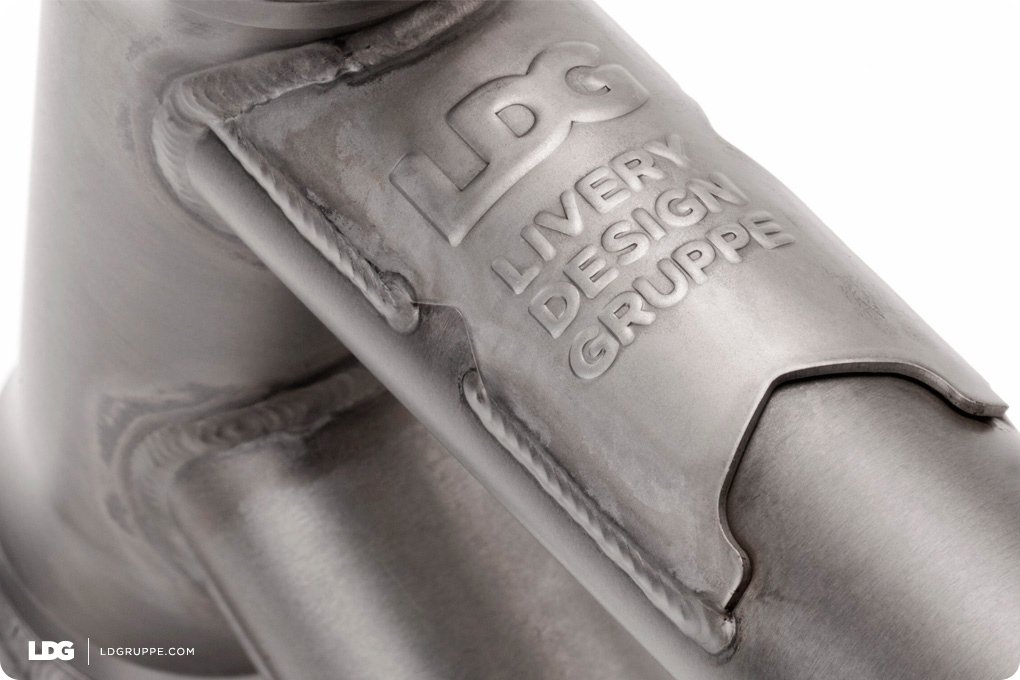

• Top Tube & Down Tube Gusseted

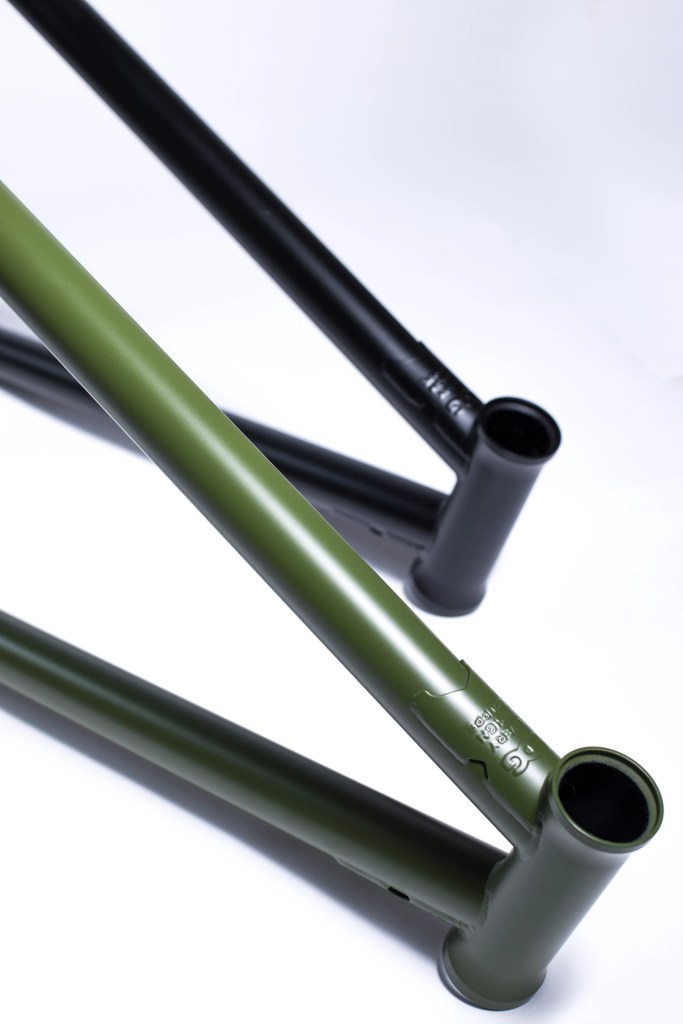

• Mid BB • Integrated Head Tube

• Full CNC Head Tube & Bottom Bracket

• Rolled tubing on seat tube

• 14mm Rear Dropouts

• 60c + Tire Clearance

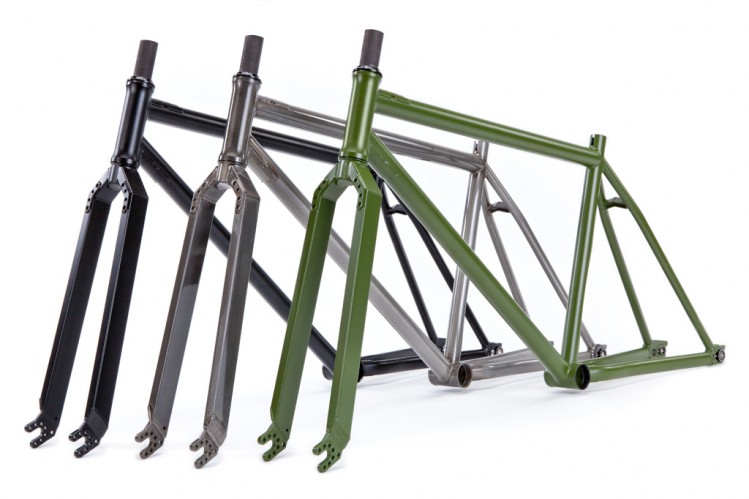

LDG Tank Fork Details Summary:

• Comes Standard With Interchangeable 9mm or 10mm CNC’d Spacers for standard track hubs

• Dropouts Specifically Designed To Mount Pegs Properly

• Fully Machined One-Piece Steerer Tube • Boxed Construction Tank Fork Specs:

• Steerer Tube = 1-1/8” Threadless

• Fork Rake / Offset = 30mm

• Axle to Crown (A2C) Length = 420mm

• Dropouts = 8mm Thick Fitted to 9mm/10mm with Included Washer or Standard 14mm Axle.

• Material = 4130 Heat-Treated CRMO

Details:

Release Date:

• June 2011

Manufacturer:

• Livery Design Gruppe

MSRP: $449.99

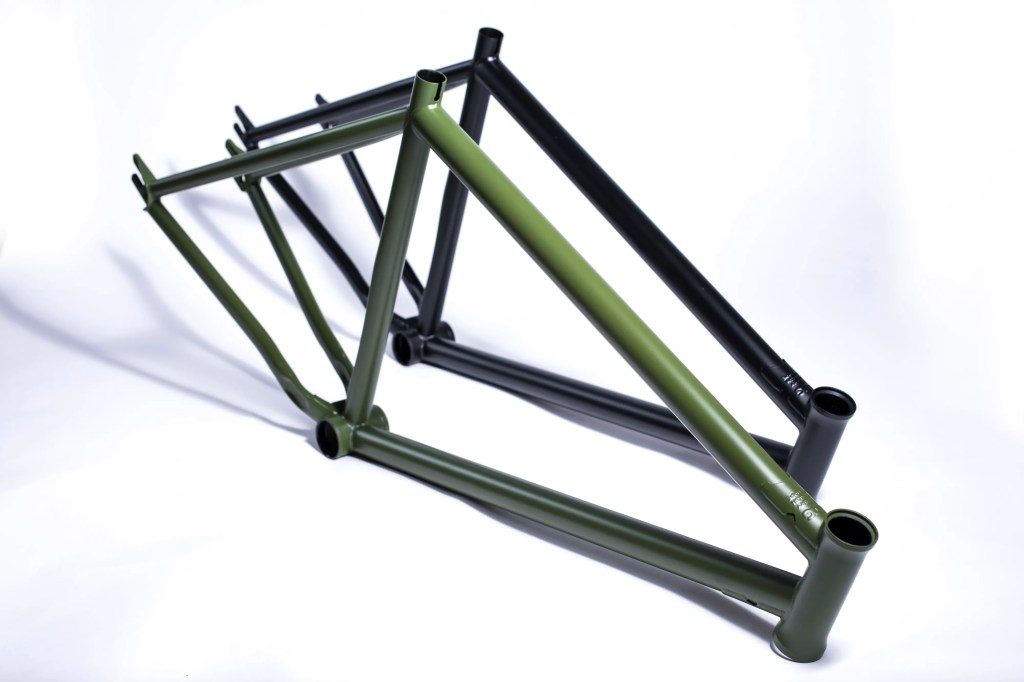

Color(s):

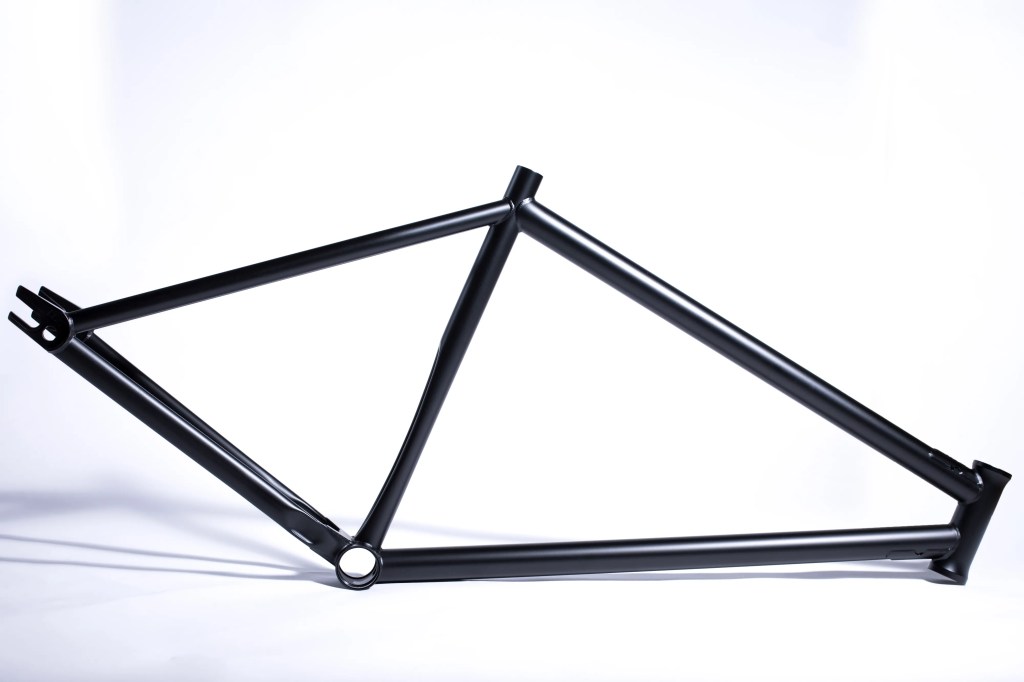

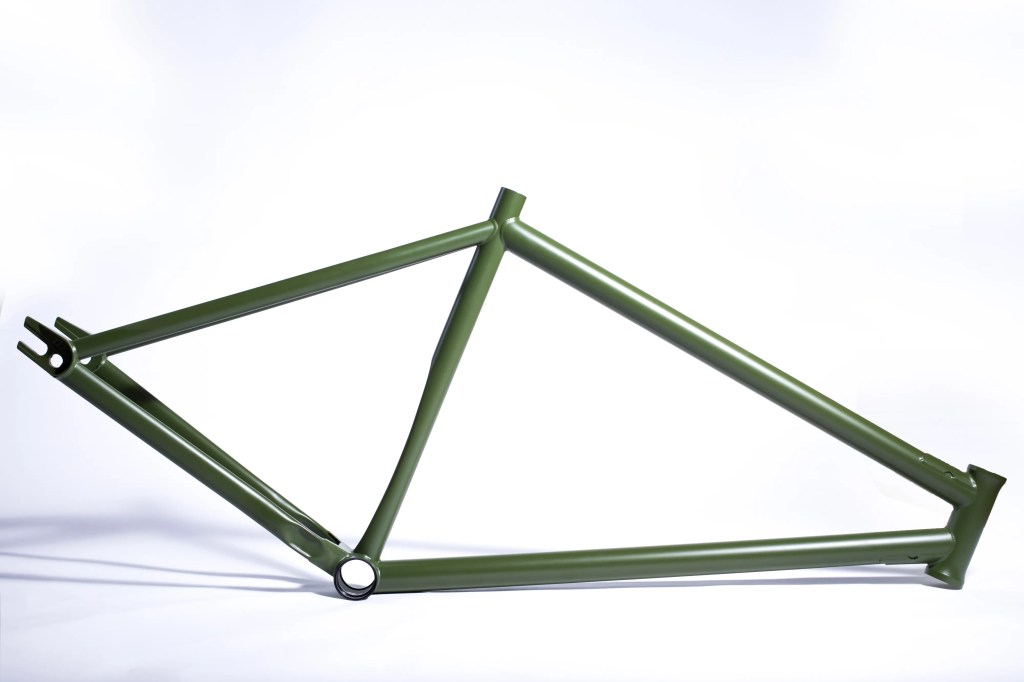

• Drab Green

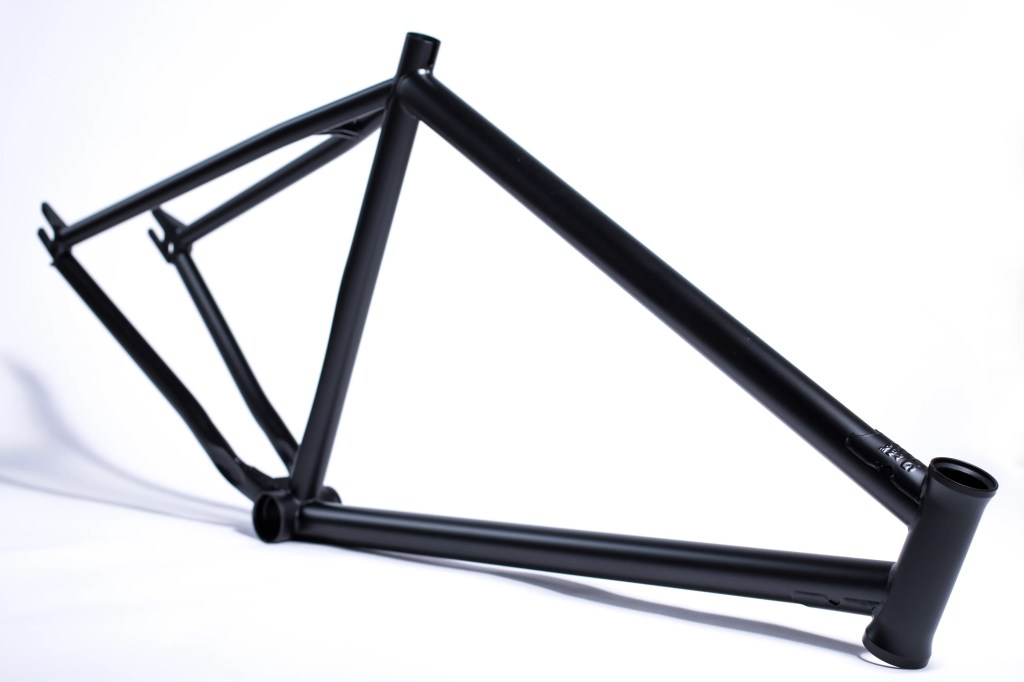

• Matte Black
• Raw

Size(s):

• Small
• Medium
• Large

Wheel Size:

• 700c
