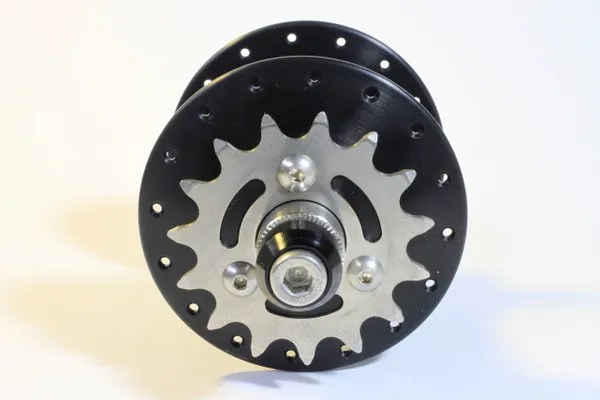

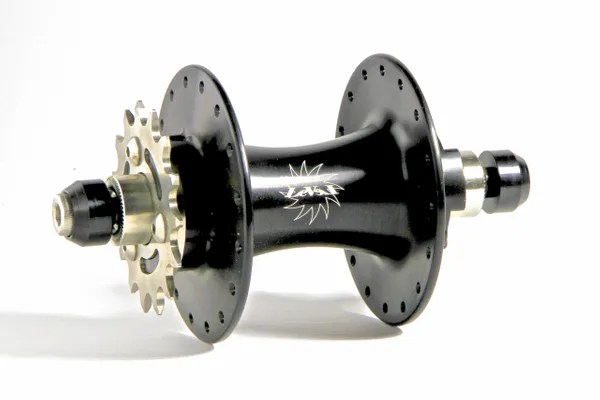

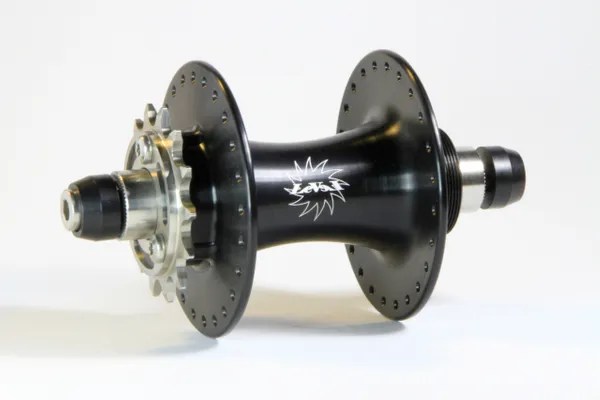

Level Components Rear Hub

Description:

Rear Hub includes axle, bearings, spacers, axle bolts and drop out guides. Cogs sold separately.

Details:

Release Date:

• 2003

Manufacturer:

• Level Components

MSRP: $200

Color(s):

• Black
• Silver

Hole Count(s):

• 32h
• 36h
• 48h

Axle Size(s):

• 10mm

Attachment Type(s):

• Bolt on

Gallery:

Specifications:

• Asymmetrical cog allows for an adjustable chainline:  44 mm or 51 mm
• Fixed/Fixed or not…stay tuned for the Level Bolt-on Freewheel! See a demo of the prototype on our Instagram.
• Enduro Bearing #6902 Sealed, same bearings left and right side, front hub and rear hub
• Although pictured, you need to purchase the cog separately
• Spoke Hole Dia= 2.1mm
• Spoke Hole Flange Dia= 76mm
• Hub Center to Flange=31.1mm
• fixed/fixed = 408.4g
• Bolt-on System using standard M5 threads. (The same as a water bottle braze-on.)
• Note:  the 48 hole version is Black, fixed/free only.  i did a small batch of these and wanted to give the customer the option of putting a threaded freewheel on a Level Hub.
