Eighthinch Butcher Frame

Description:

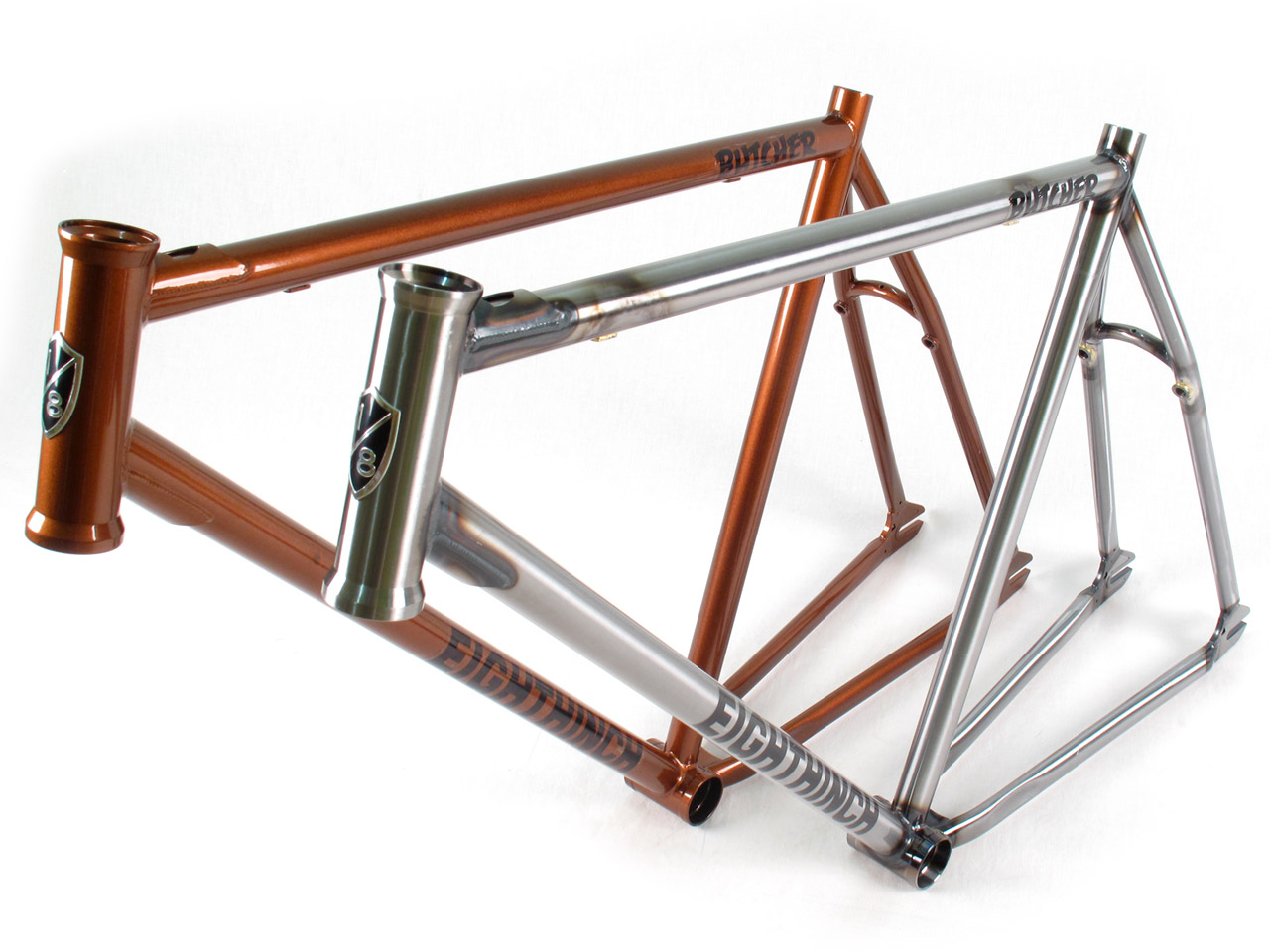

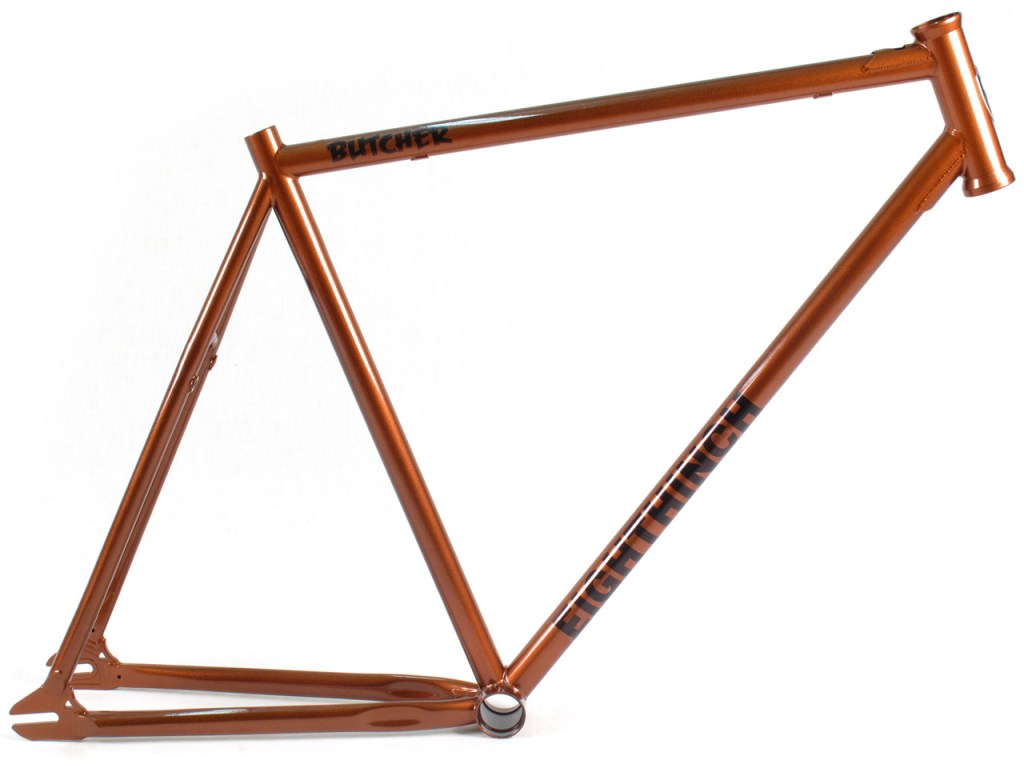

Eighth Inch Butcher Fixed Gear Freestyle Frame

  • Available in Metallic Root Beer or RAW Color option

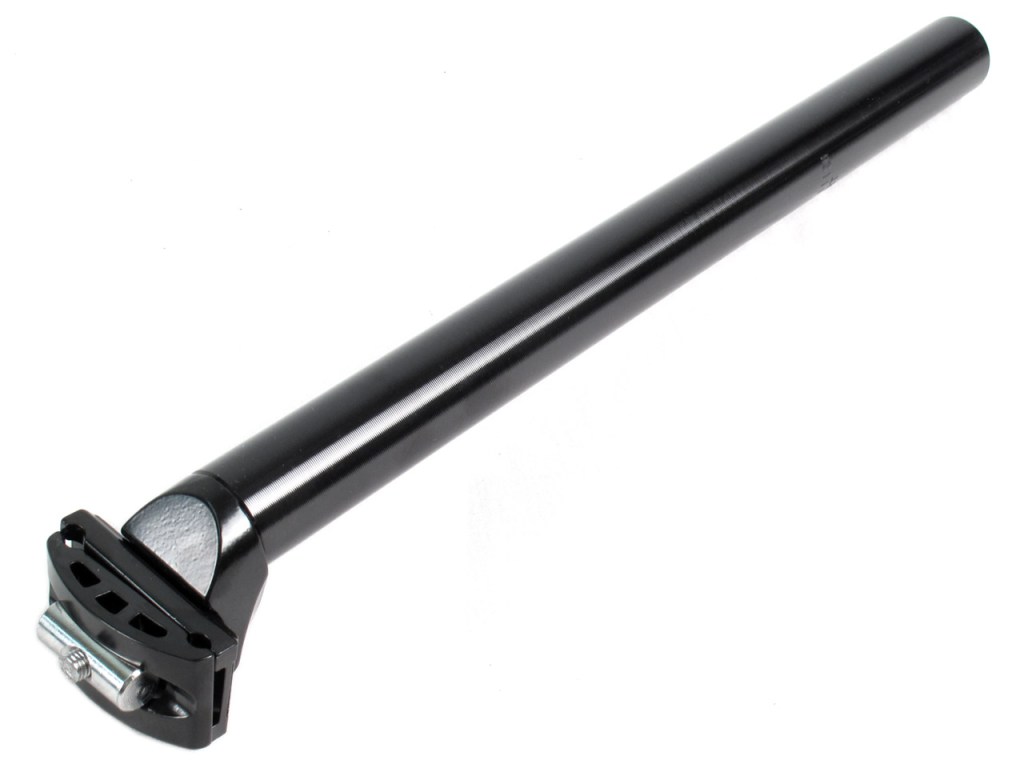

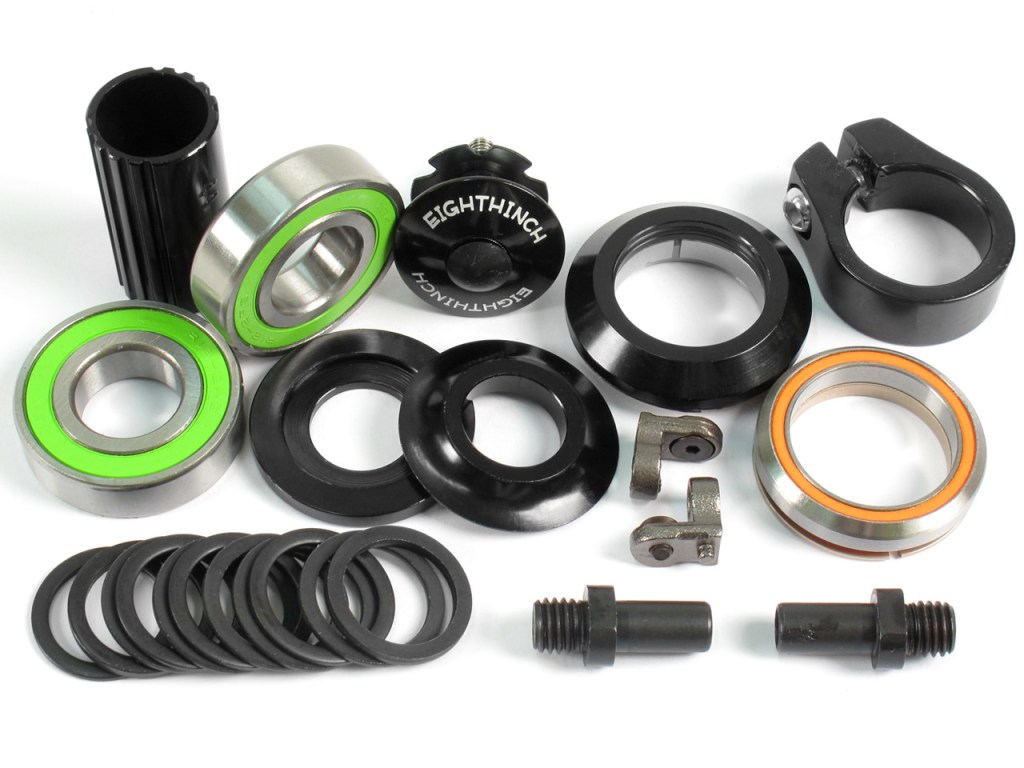

  • Includes Mid-Bottom bracket, Integrated headset, Seatpost and Seat Clamp! (no fork included)
  • Made from 4130 Double Butted Cromoly Tubing
  • Fits tires up to 50c

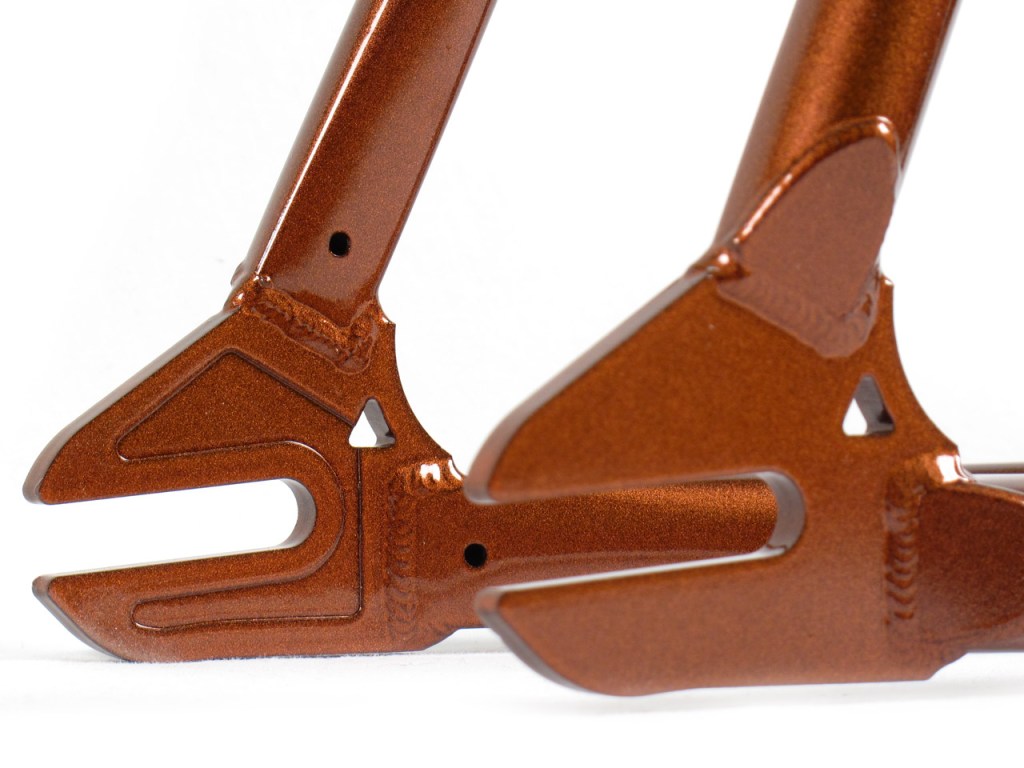

  • 10mm Dropouts

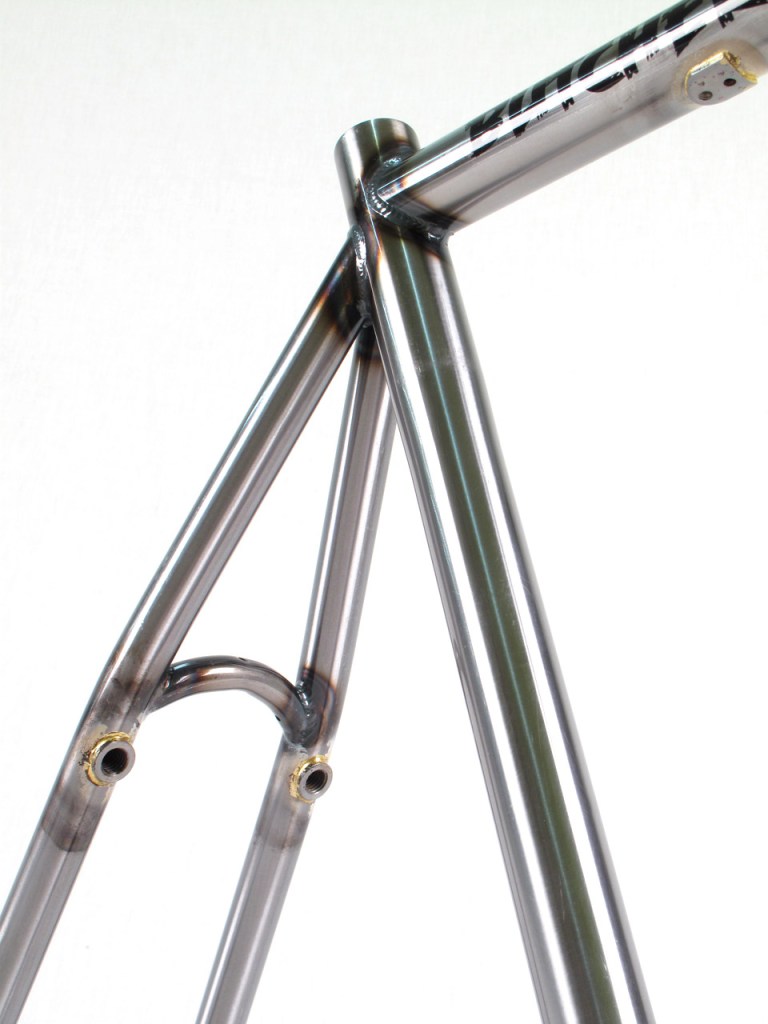

  • Removeable cable guides & rear 990 brake mounts

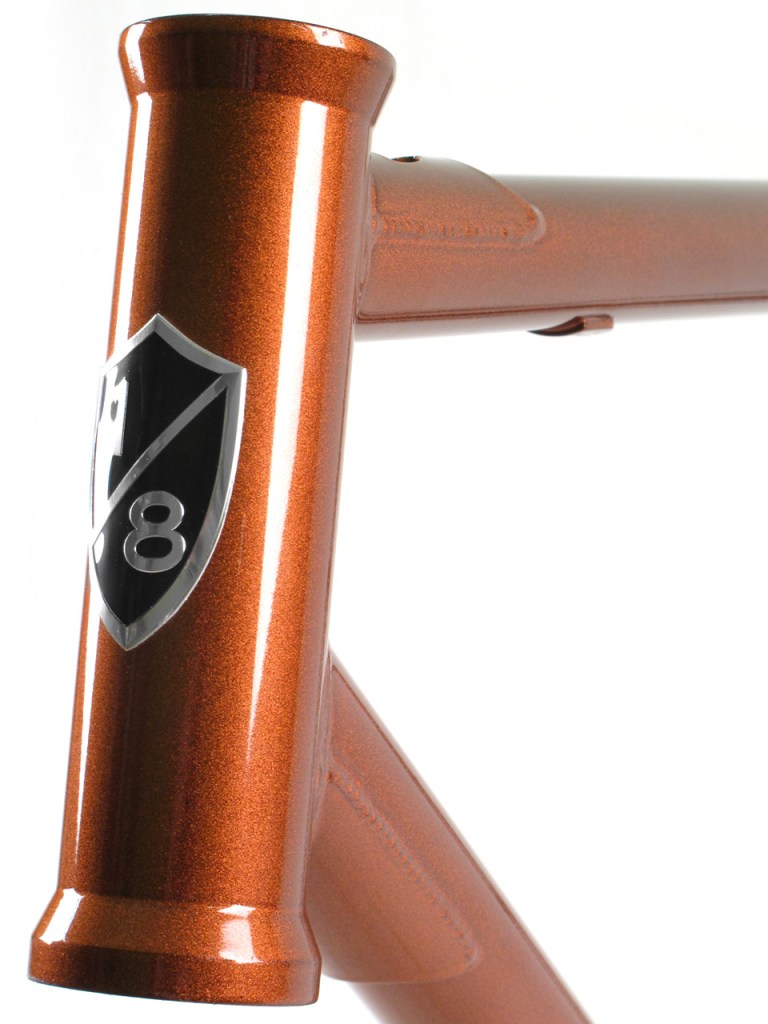

  • 1 1/8″ Integrated headtube
  • 120mm Rear Spacing

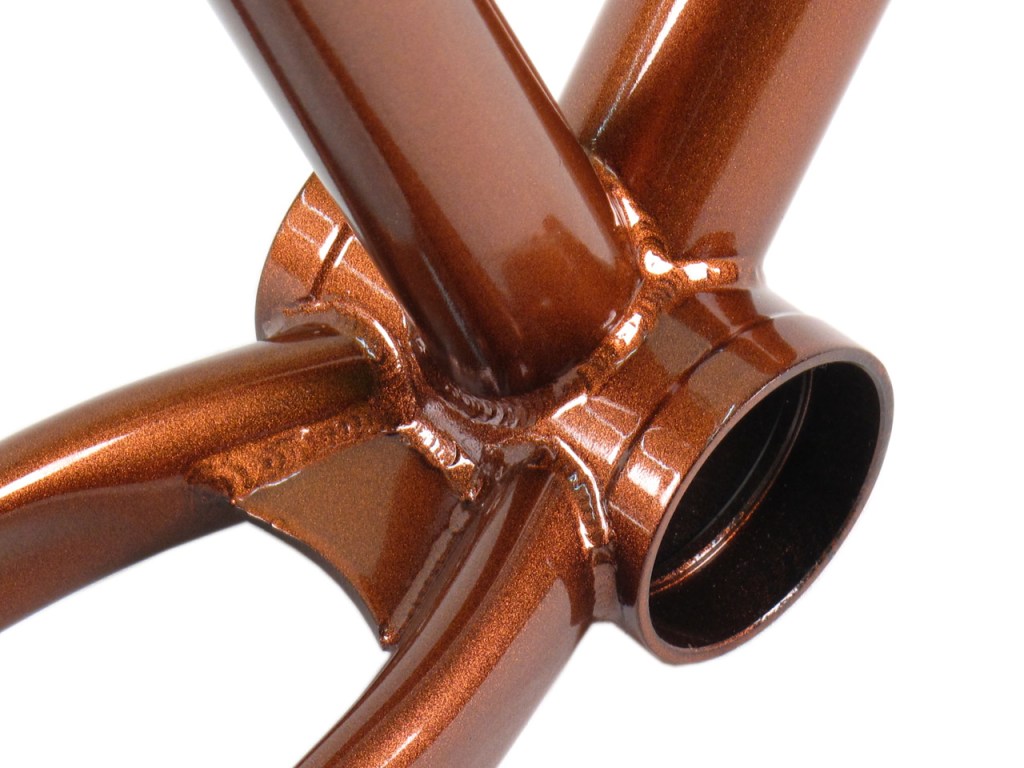

  • Mid Bottom Bracket

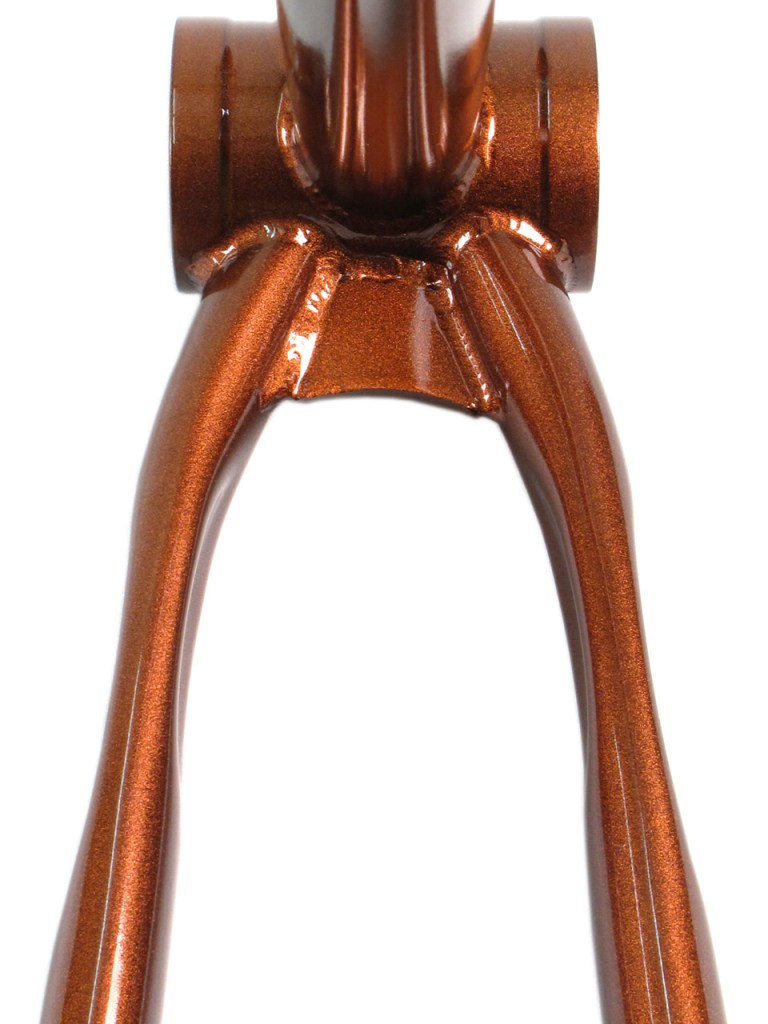

  • Double crimped chainstays for Left or Right side drive
  • Weight (56cm) 5.3lbs [2400 grams] (frame only)
  • Note: Frame comes with removeable decals applied

Details:

Release Date:

  • February 2011

Manufacturer:

  • Eighthinch

MSRP: $349.99

Colors:

  • Metallic Root Beer
  • Raw

Size(s):

  • 50cm
  • 53cm
  • 56cm
  • 59cm

Wheel Size:

  • 700c

Gallery:

Specifications:

Size in CM50cm53cm56cm59cm
Seat Tube Center-Top50cm53cm56cm59cm
Top Tube Actual57.1cm57.9cm58.3cm59.5cm
Top Tube Virtual58.2cm58.7cm59.2cm60.2cm
Head Tube Angle74.574.574.574.5
Seat Tube Angle74747474
BB Drop45mm45mm45mm45mm
Chainstay Length410mm410mm410mm410mm
Headtube Length95mm110mm150mm170mm
