Description:

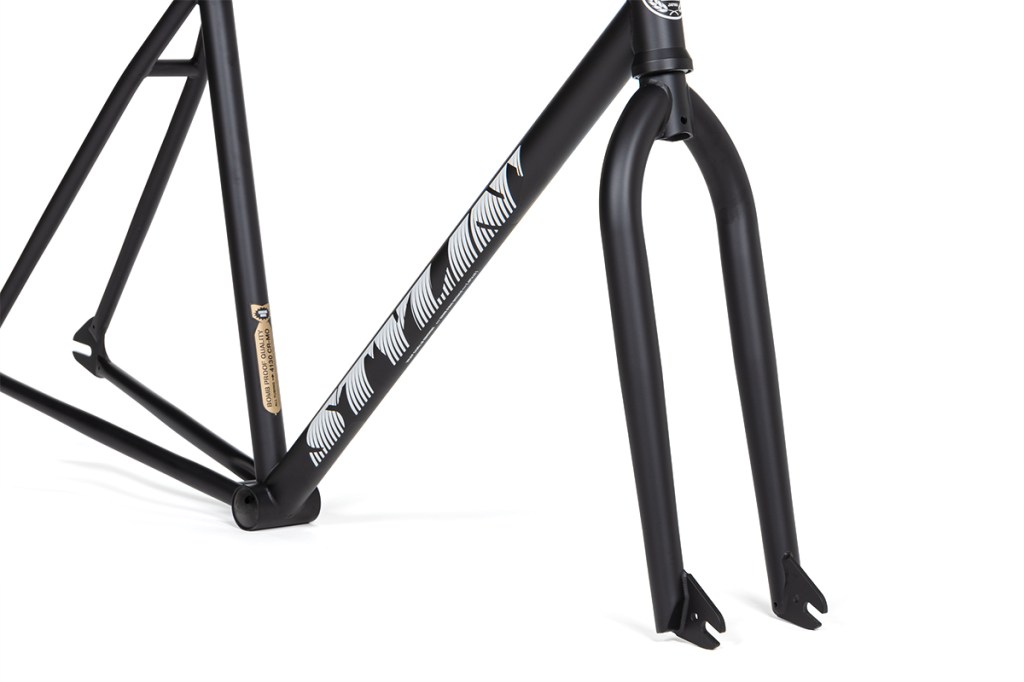

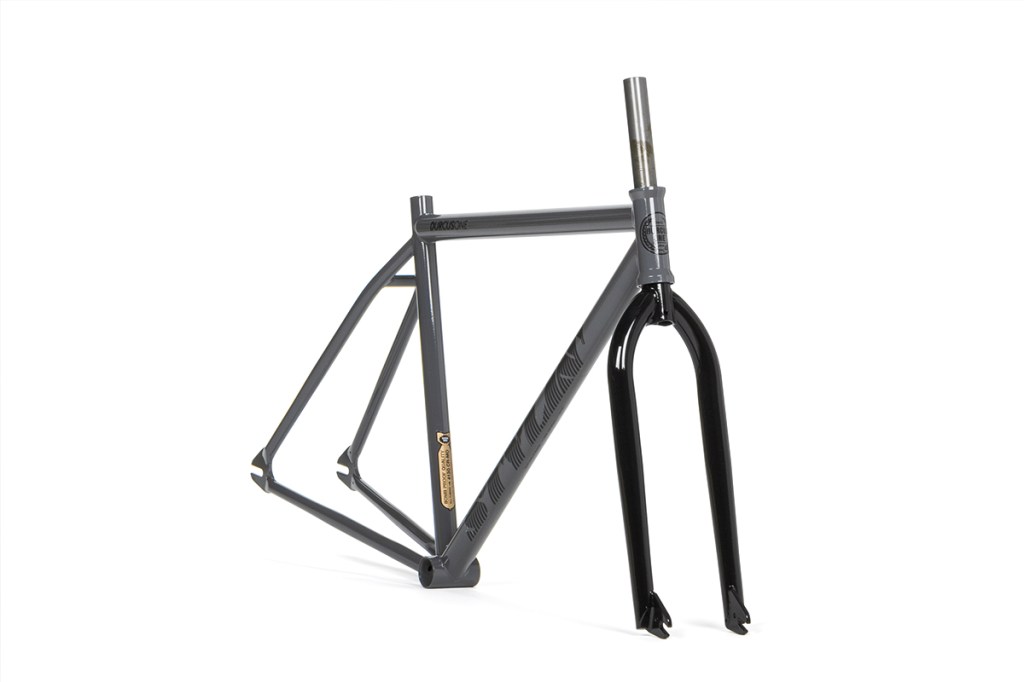

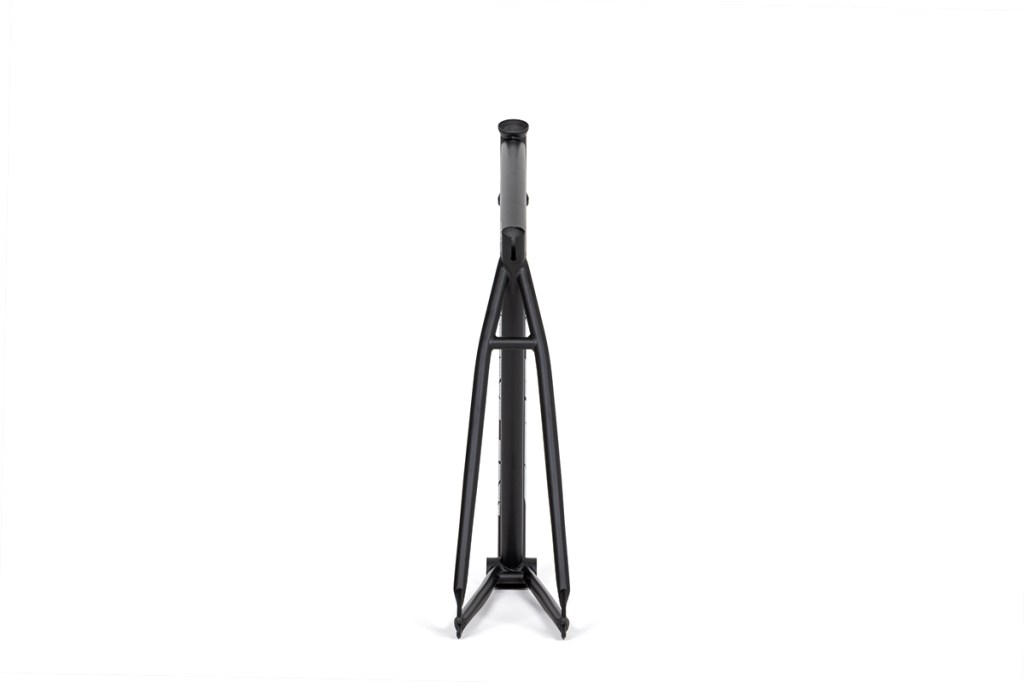

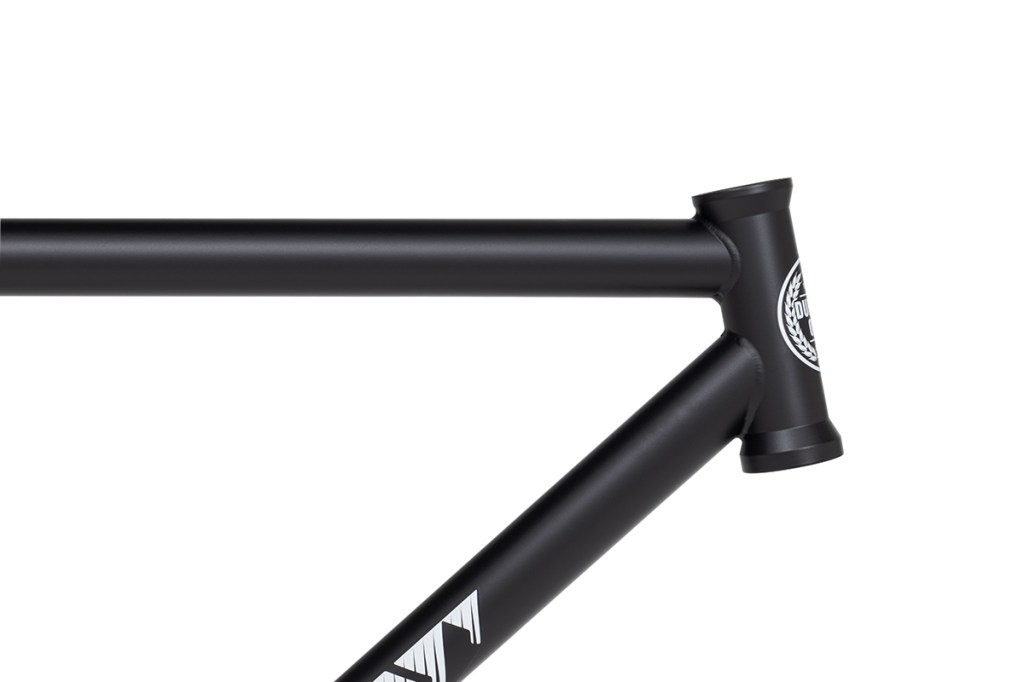

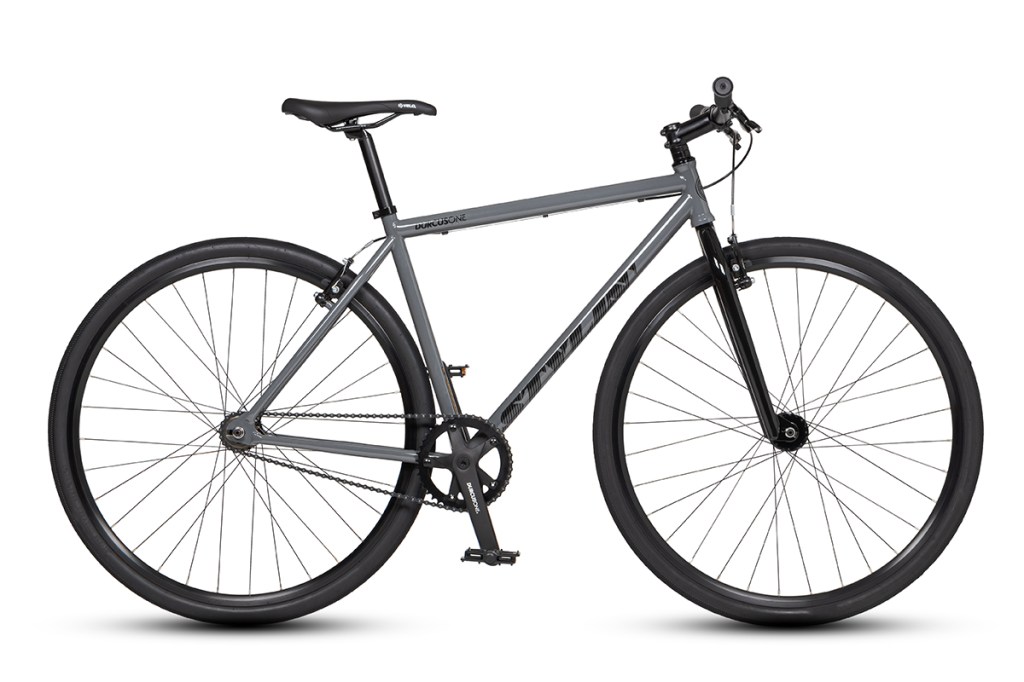

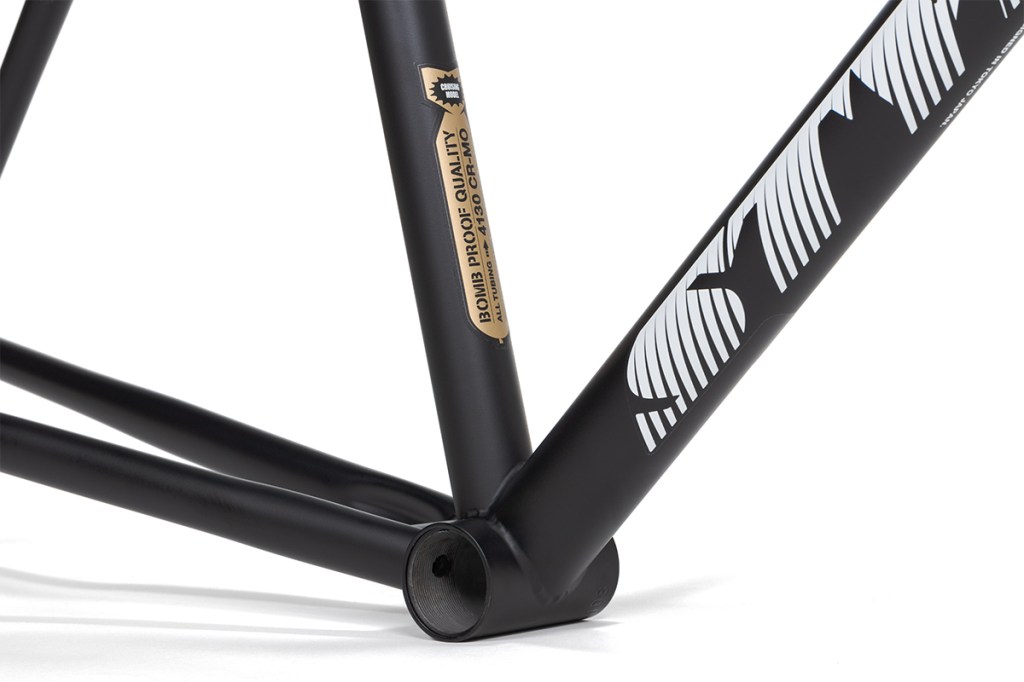

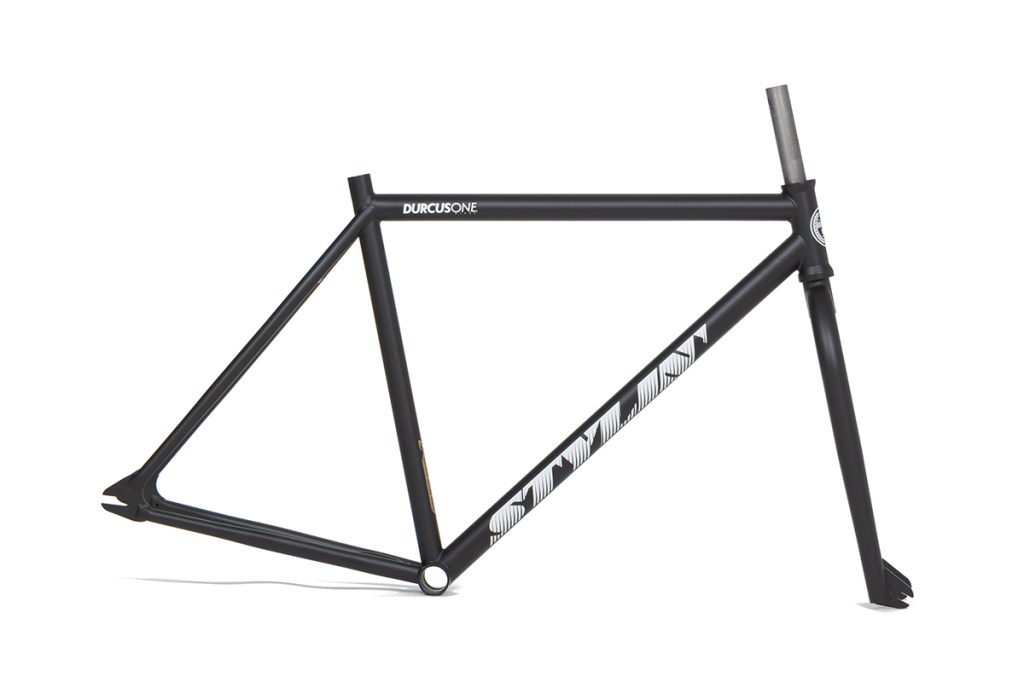

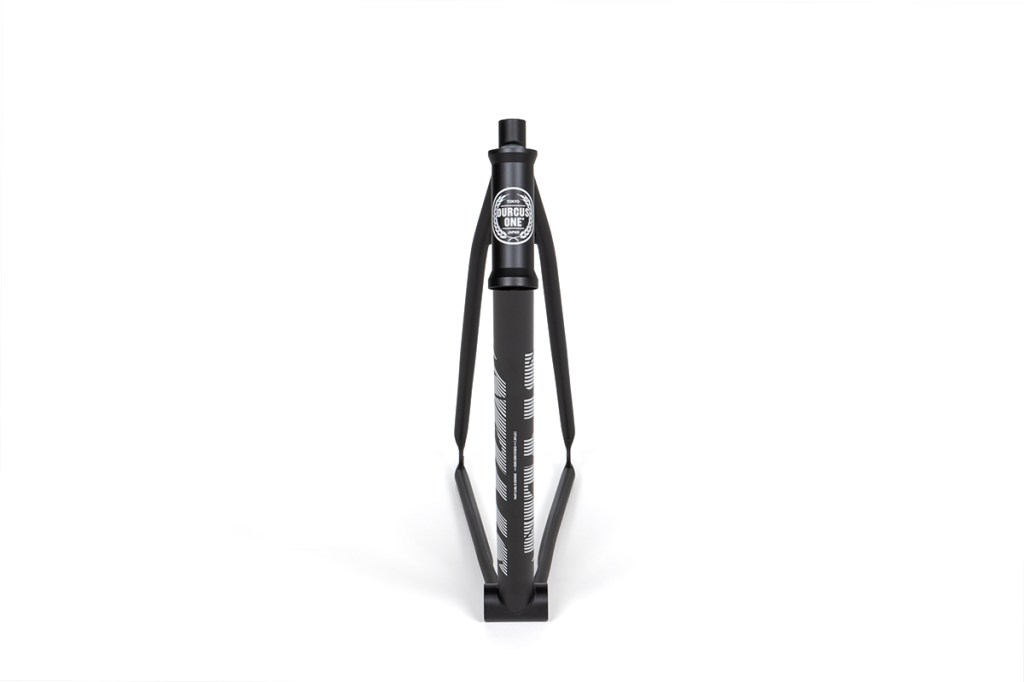

The photo is an example of a completed vehicle, and the product includes only the frame and front fork.This is a set of STYLIN’ frame and fork designed for enjoying cruising and active riding.
The frame and fork that support active riding are made of 4130 CR-MO.
In addition, the fork column is made in one piece by CNC machining like BMX, ensuring light weight and rigidity.
Standard tire size is 700 x 35C.
Up to 40c can be installed (not possible depending on manufacturer and model), which allows you to choose tires according to various road conditions.
Details:
Release Date:
- August 2024
Manufacturer:
- Durcus One
MSRP: ¥66,000
Colors:
- Matte Black
- Gray
Size(s):
- 480cm
- 520cm
Wheel Size:
- 700c
Gallery:
Specifications:
Size 480cm
- Top tube length (CC): 545mm
- Seat tube length (CC): 480mm
- Head tube angle: 72º
- Chainstay length: 408mm
- BB Drop: 55mm
- Fork offset: 28cm
Size 520cm
- Top tube length (CC): 555mm
- Seat tube length (CC): 520mm
- Head tube angle: 72º
- Chainstay length: 408mm
- BB Drop: 55mm
- Fork offset: 28cm
| color | MATT BLACK, GRAY, MATT TRANS NAVY |
|---|---|
| Frame | 4130 CR-MO |
| fork | 4130 CR-MO CNC STEER |
| head | 1 1/8″ INTEGRAL |
| B.B. | BSA |
| Front End Width | 100mm |
| Rear end width | 120mm |
| brake | – |
| Seatpost | 27.2mm |
| Seat clamp | 29.8mm |
| Maximum tire/fork size | 700x40C *Not available depending on manufacturer and model |
| Maximum tire/frame that can be mounted | 700x40C *Not available depending on manufacturer and model |
