Durcus One Stylin’ Frame

Description:

The ultimate weapon for trick-loving riders using tough BMX chromoly pipes! is this STYLIN’.

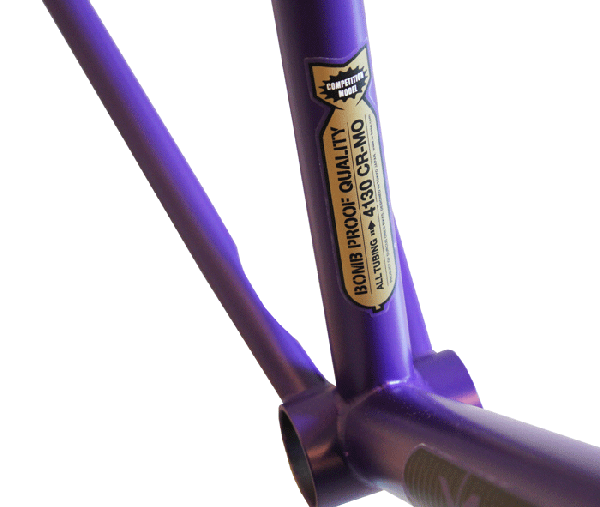

As mentioned above, the material is 4130Cr-mo with no gusset/Tig welding.

There is no gusset, so I think many people are worried about it, but the thickness inside the pipe is controlled by parts.

The downtube is 1.4mm thick at each end and 1.0mm in the middle of the pipe.

By using such a pipe, strength is secured even without a gusset.

In addition, cracks often occur from the gusset ends, but since the gussets are not welded to the pipe, the flex of the pipe itself is not impaired, and the entire frame is designed to absorb a large impact.

(If the gusset is welded in the wrong place, it will become stiffer and more prone to cracking than the gusset and pipe ends.) The all-important

top tube length is a long 570mm.

This is a number to enable stress-free bar spins.

Therefore, although it depends on your height, I think that the stem length should be short.

And the BB uses a type (Spanish BB) that directly presses the bearing, which is becoming commonplace in recent BMX. As a result, the BB strength itself is increased, and you can concentrate on riding without loosening the BB. Because the BB is such a specification, only 3-piece cranks for BMX etc. are compatible. be careful.

HEAD: Compatible with INTEGRAL HEAD

BB: SPANISH BB (suitable for 3-piece cranks such as PROFILE cranks)

SEAT POST: 27.2mm diameter fitting (clamps are included with the frame)

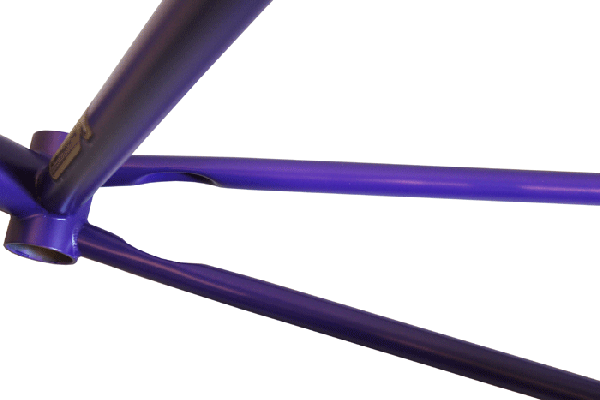

As for the tire size, the chain stay is wider than before by 6mm from this time. So tires up to 700x47c (CONTINENTAL CITY CONTACT 47c x VELOCITY P35) will fit without problems. For larger sizes, please try it on.

If you would like a fork, please fill in the bonus pack request and the remarks column of the order form, and also fill in the fork color.

Bonus pack: 73,500 yen (frame + DO A TRICK FORK)

Note) This is the applicable price when sold as a set with the frame.

*This product is for competition use, so it cannot be used on public roads unless the brakes are turned on.

In addition, processing may be required when installing the brake.

If you have any questions, please contact us.

Details:

Release Date:

• March 24th, 2010

Manufacturer:

• Durcus One

MSRP: ¥63,000

Colors:

• Matte Red
• Matte Purple
• Matte Black

Size(s):

• S (43cm)
• M (48cm)
• L (53cm)

Wheel Size:

• 700c
