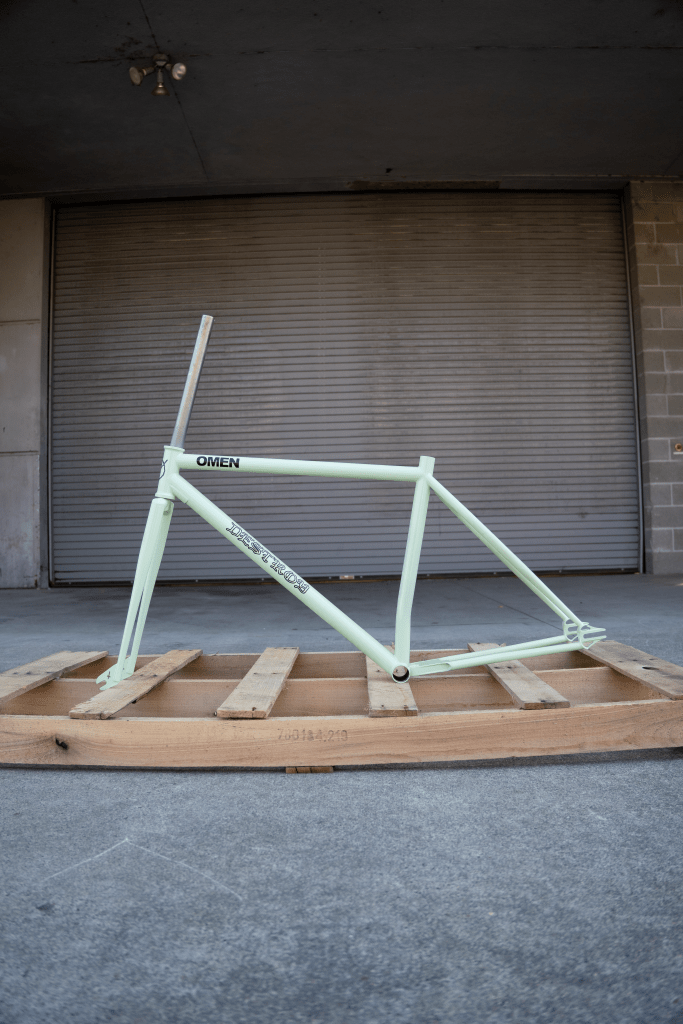

Destroy Omen 2024 Frame

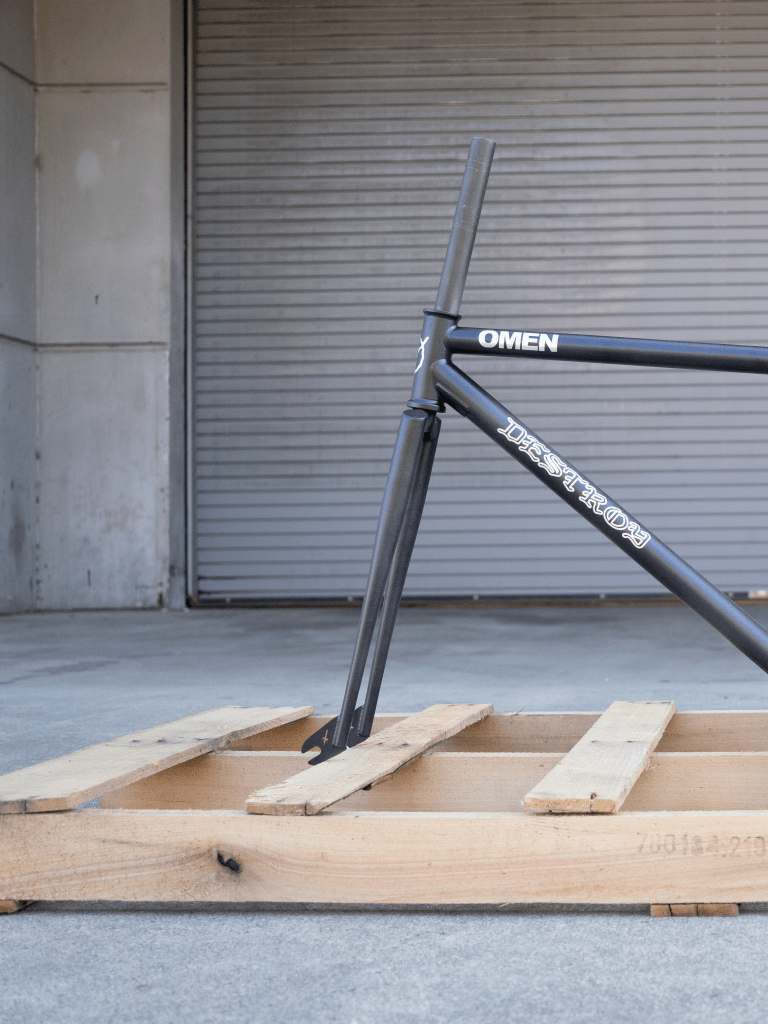

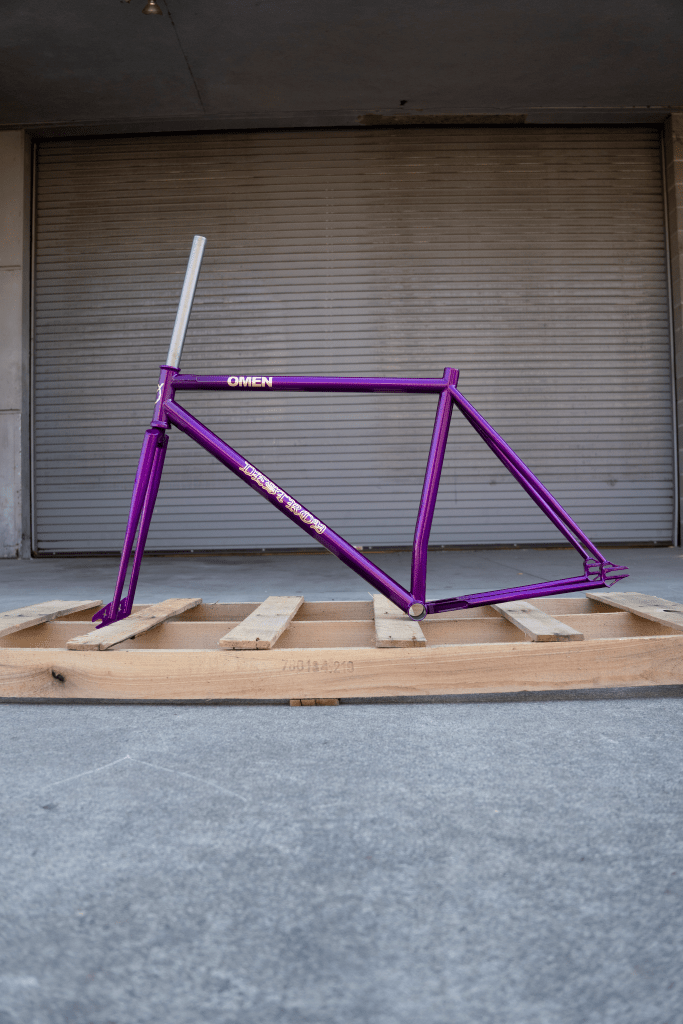

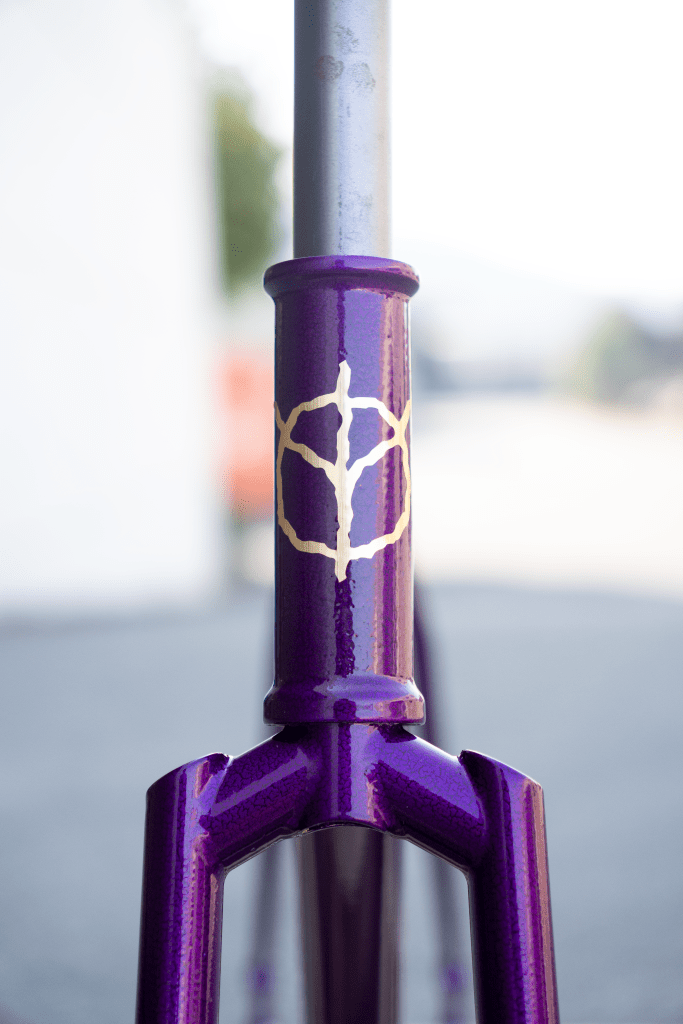

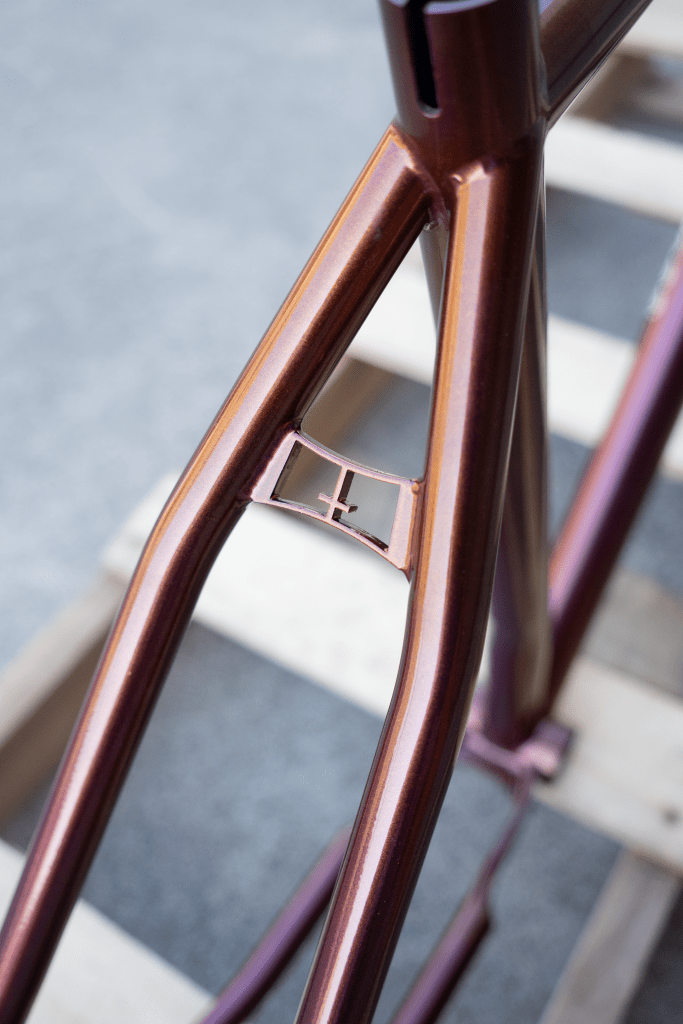

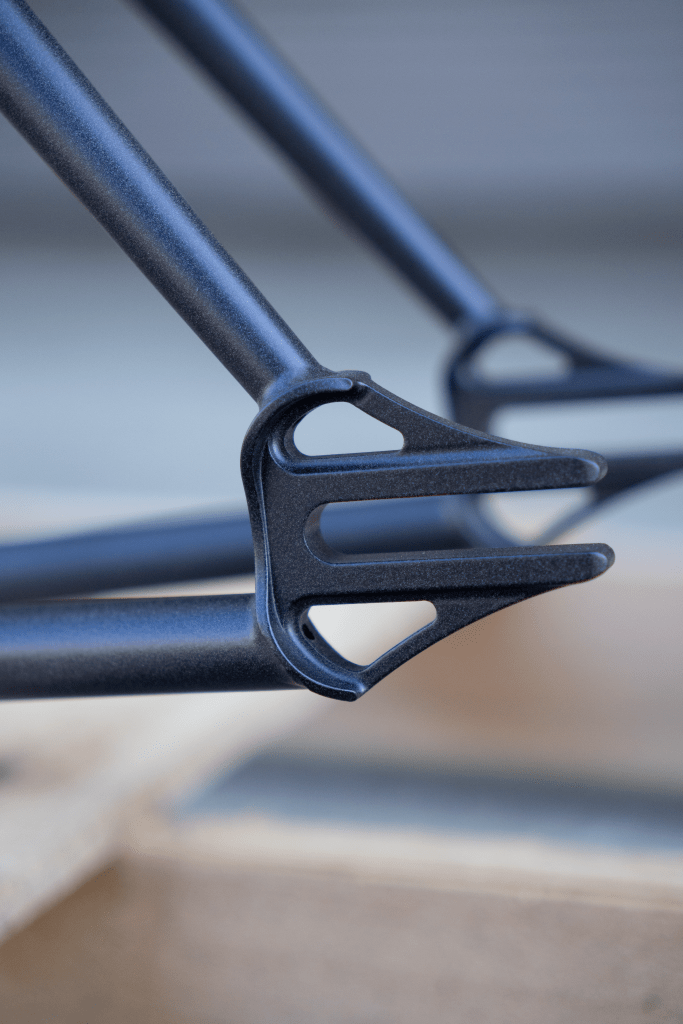

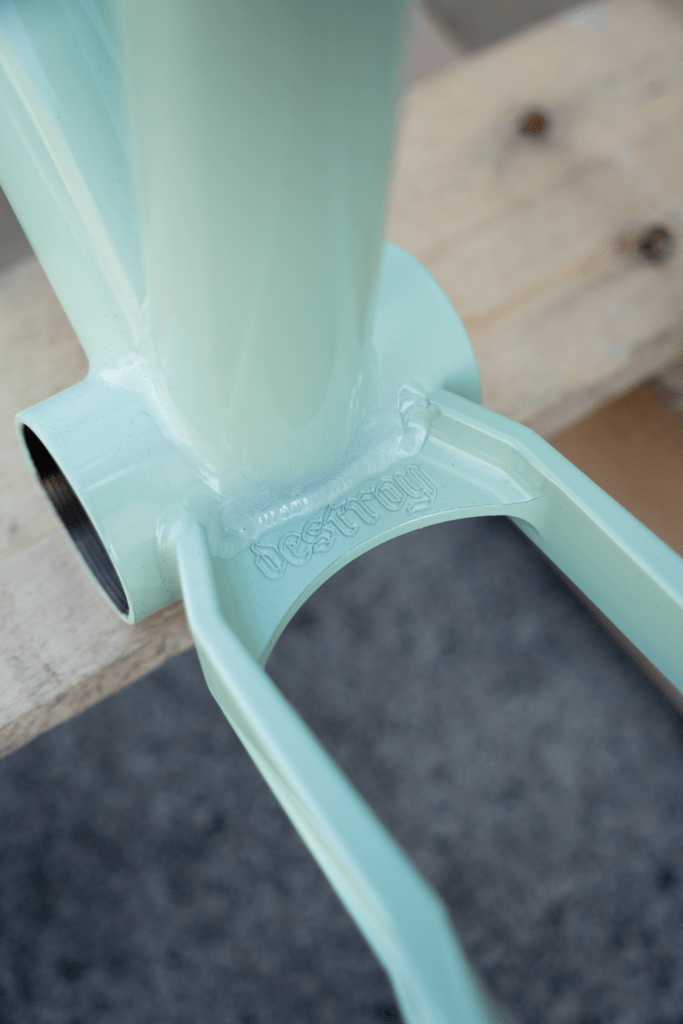

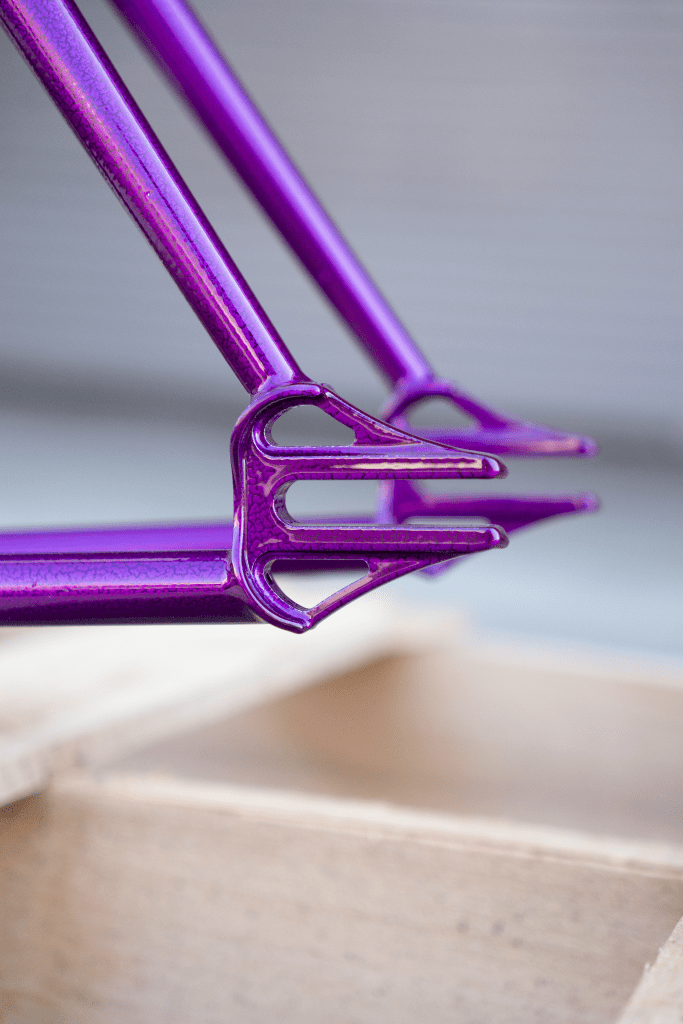

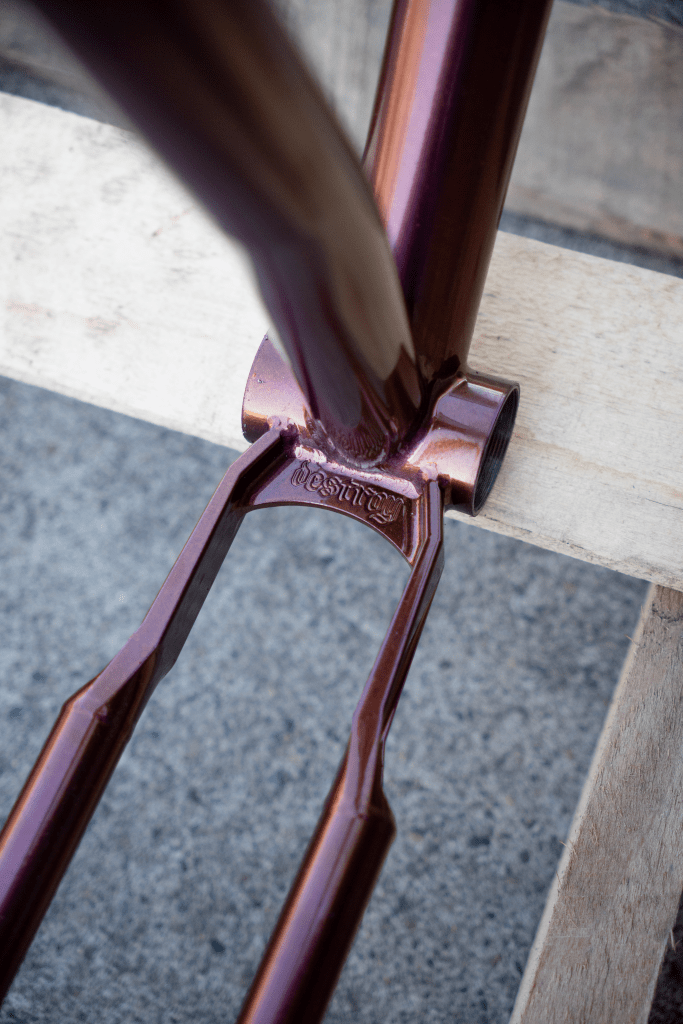

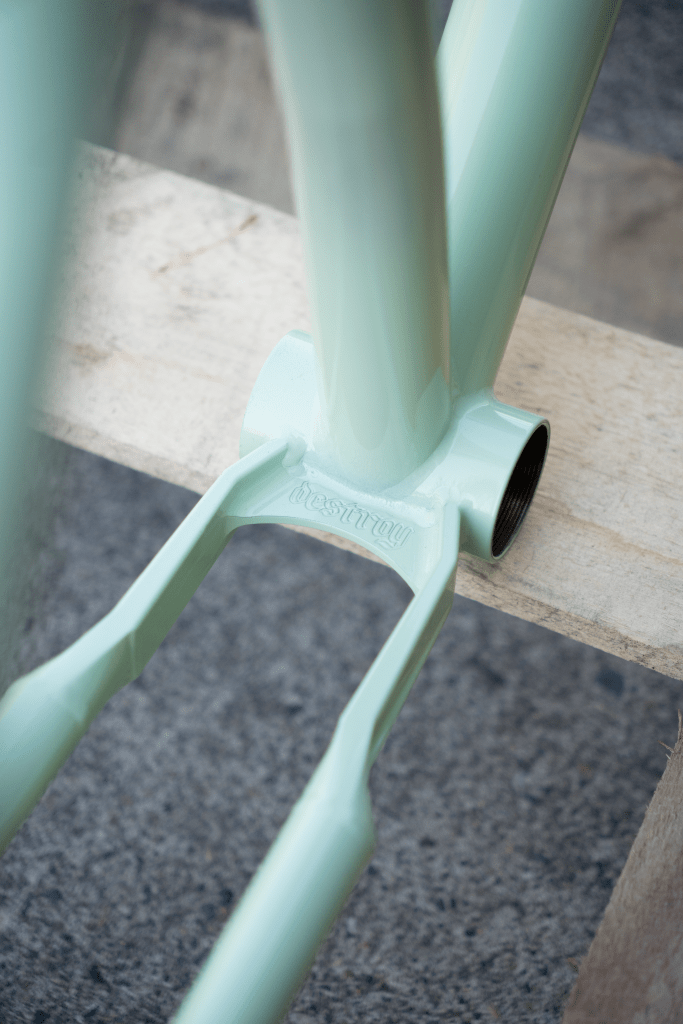

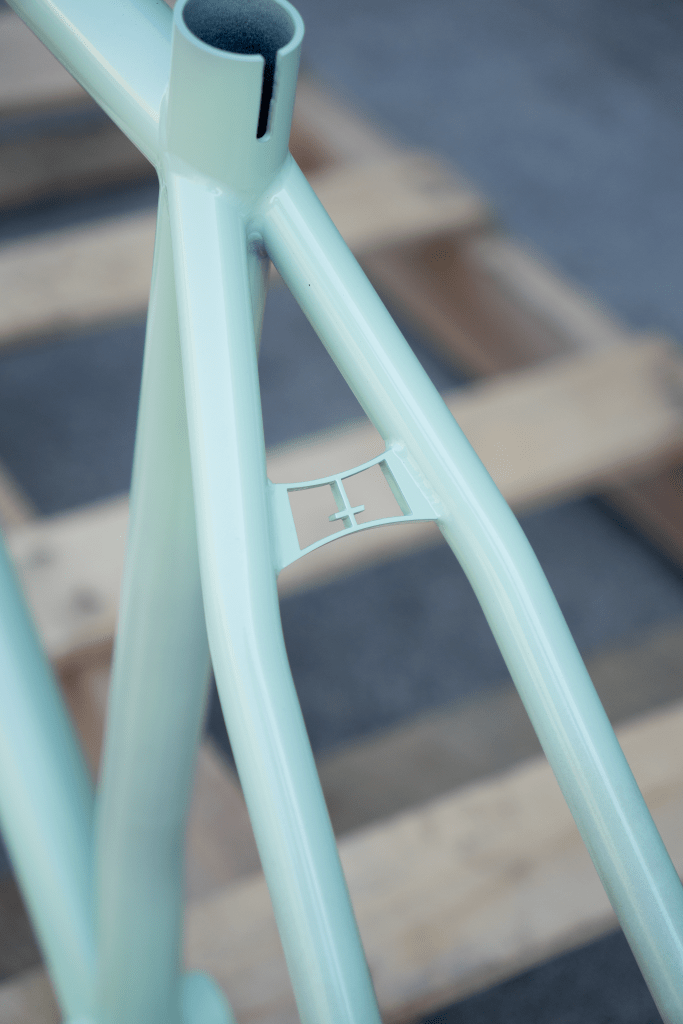

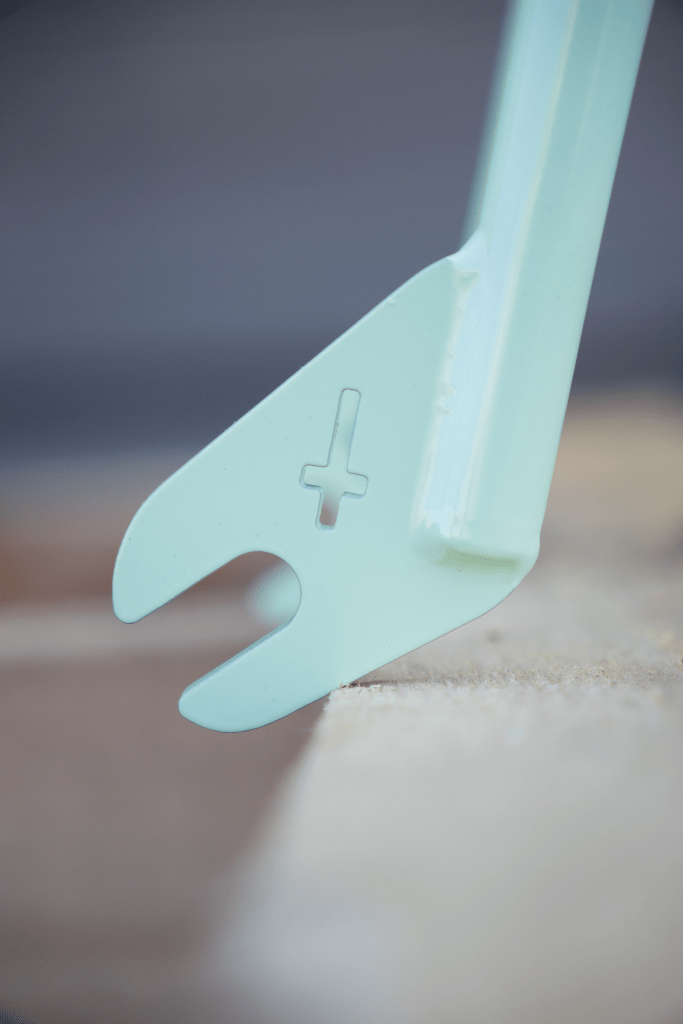

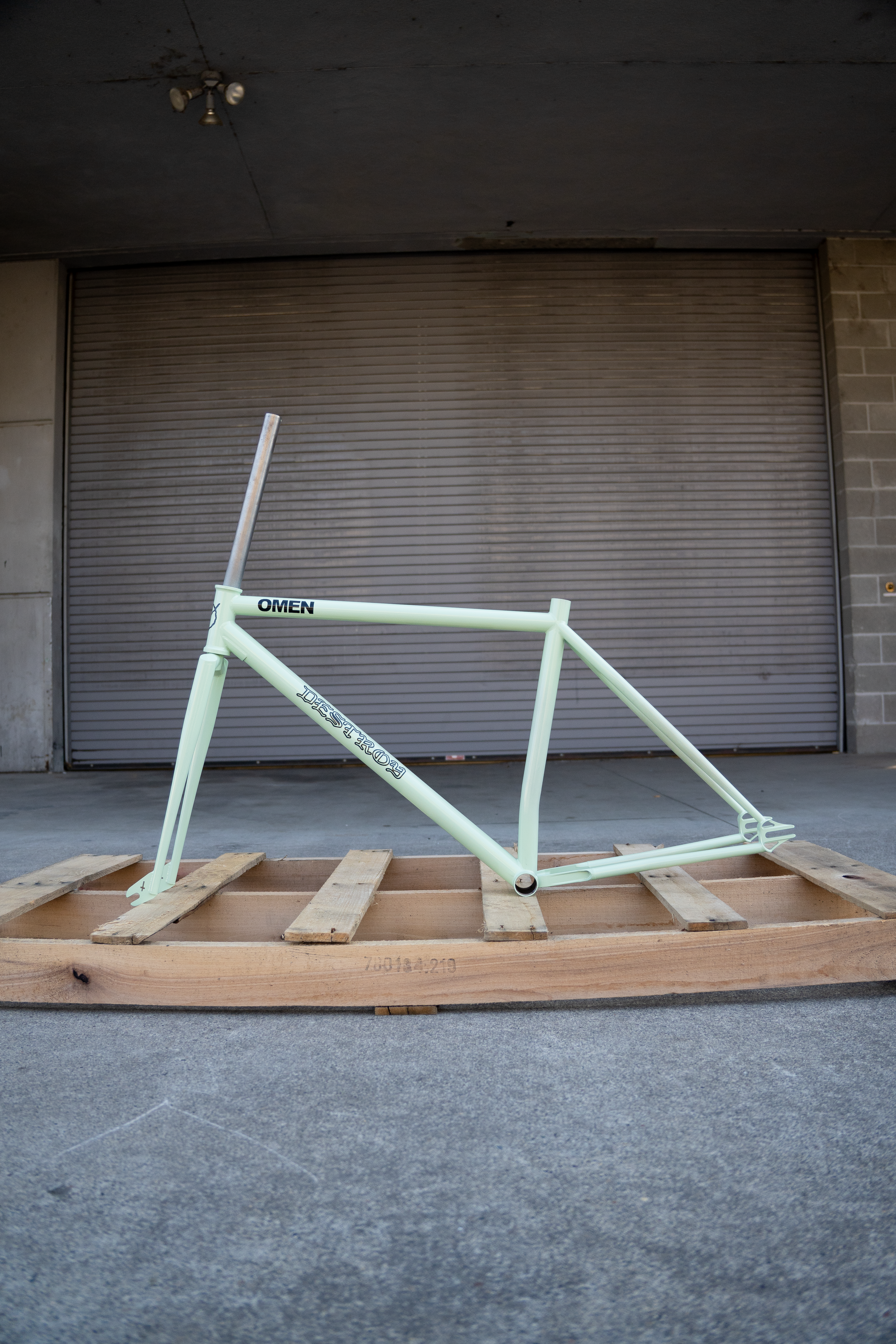

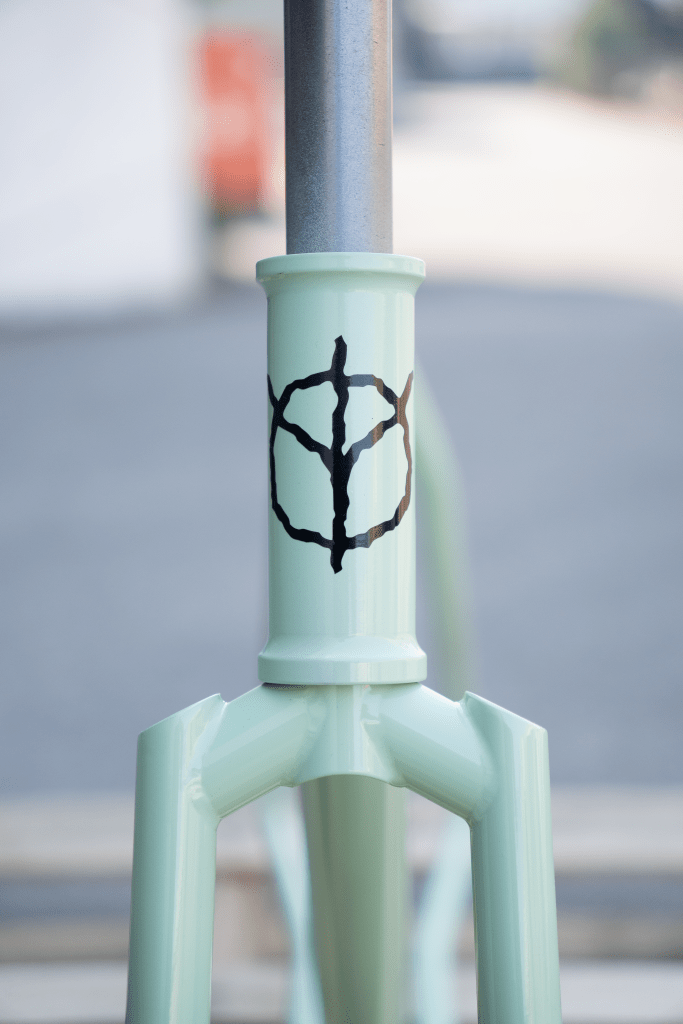

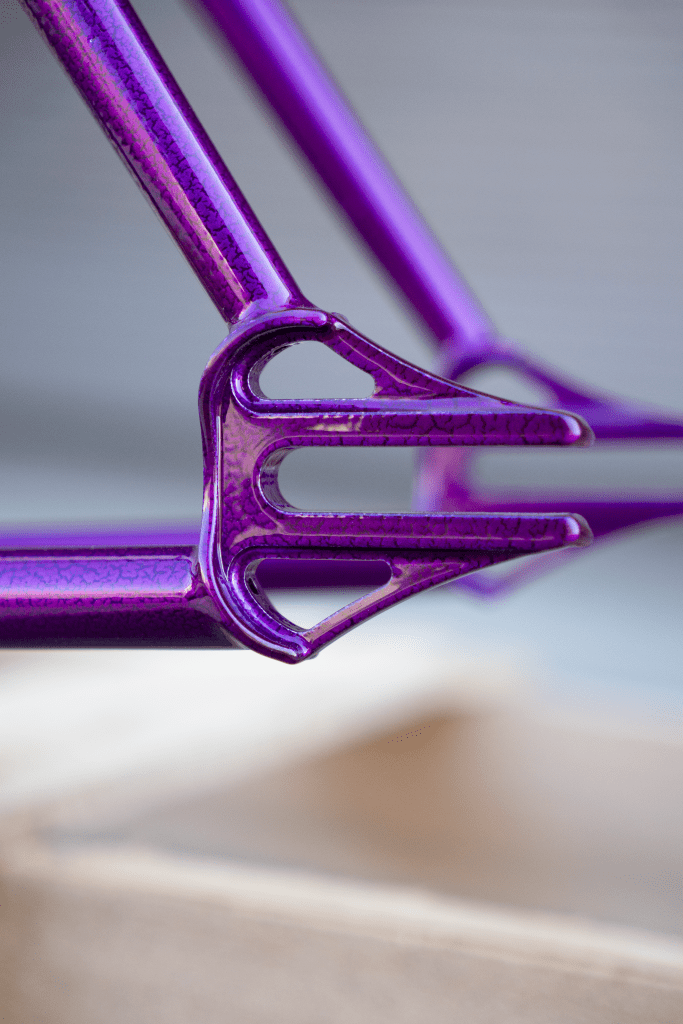

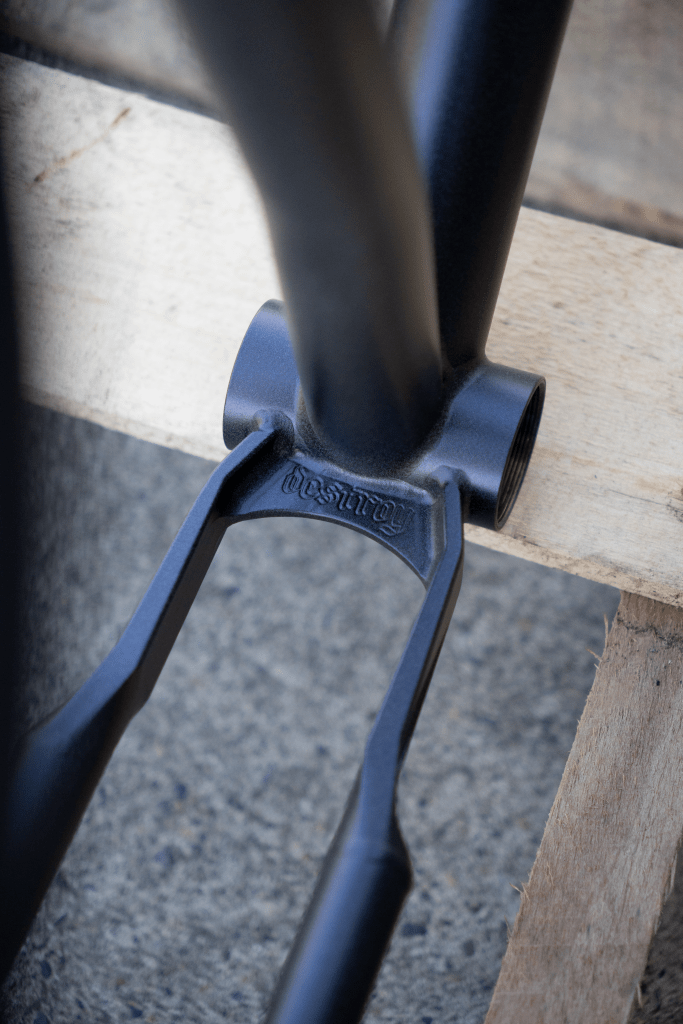

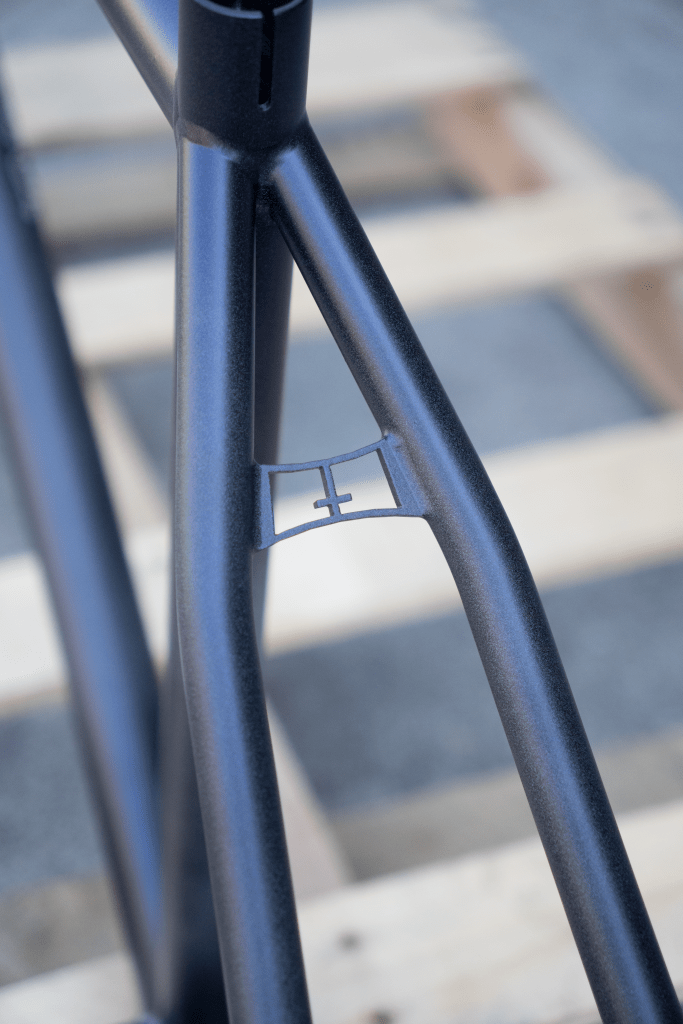

Gallery:

Specifications:

Geometry & Specs.

• Frame Weight: Medium 5 LBS
• Frame Sizes (CM): S // M // L
• Top tube length (CM): S-53.8 // M-55.5 // L-58
• Seat Tube C-T (CM): S-45.7 // M-46.5 // L-50
• Chainstay Length (MM): 385
• Head tube length (MM): S-110 // M-117 // L-127
• Head tube Angle: S-73.25º // M-74º // L-74.25
• Seat Tube Angle: S-74.5º // M-74º // L-73.5º
• (MAX) Tire Clearance: S-43C // M-43C // L-43C
• Seatpost Dia. (MM): 27.2
• Seat Tube O.D. (MM): 31.8
• Headset Type: 1-1/8″ Threadless Integrated, 45ºX45º SPC*
• B.B. Shell Width (mm): 68
• B.B. Type: English
• B.B Drop (mm): 35
• Rear Hub Spacing (mm): 120
• Wheel Size: 700C / 650B
• 2024 OMEN FITS ANY TRACK CRANKSET WITH UP TO A 48T CHAINRING
• Material: True Temper, 4130 Chromoly
