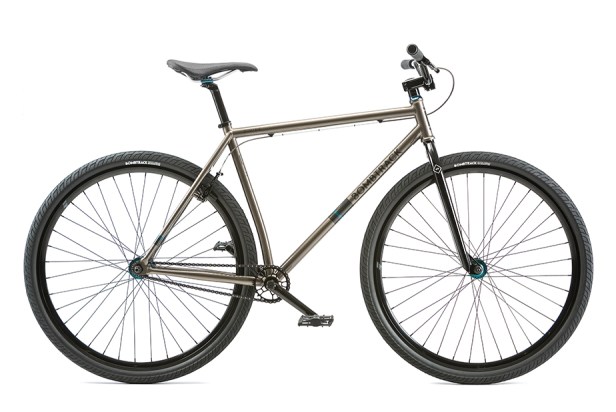

Bombtrack Divide 2016

Description:

The Divide has always been part urban commuter and part fixed gear freestyle, this blend of personalities gave the bike a diverse appeal. At the core of the bike is still the tough and dependable 4130 crmo tubed frame. The geometry of a steeper head tube and a shorter chain stay gives the bike its characteristic nimble feel. For 2016 there is a little more comfort designed into the geometry with longer head tube lengths to give a little more upright riding position. The fully heat-treated crmo fork and handlebar ensure the Divide can handle the ‘rough and tough’ of city riding with ease.

To make the most of every turn of the three-piece crmo cranks, the Divide hubs feature fully sealed high quality bearings that keeping things rolling nice and smooth. Thanks to the thirty-six hole, double wall rims, the wheels can also take the daily knocks that come with urban riding.

Seeing how more and more riders where using the potential for the Divide as a tough commuter and city bike, for 2016 the bike comes with a cassette driver pre-installed (conversion to fixed is still possible). With the bike set up as a single speed the need for better braking comes about, and this is addressed through an under-mounted mini V-brake on the seat stays. The brake mounts and cable guides are all fully removable so the bike can be kept looking clean if setup as a brakeless fixed gear bike.

Details:

Release Date:

  • 2016

Manufacturer:

  • Bombtrack Bicycle Co.

MSRP: n/a

Color(s):

  • Metallic Grey

Size(s):

  • S
  • M
  • L

Wheel Size:

  • 700c

Gallery:

Promo Content:

Specifications:

GEO:

FRAME

TOPTUBE: (Effective Horiz.) Small – 587mm / Medium – 605mm / Large – 628mm

CHAINSTAY LENGTH: 403mm

HEADTUBE ANGLE: 73°

SEATTUBE ANGLE: 74°

BOTTOM BRACKET: 45mm drop

SEAT TUBE: (C-T) Small – 470mm / Medium – 510mm / Large – 560mm

HANDLEBAR

RISE: TBA

WIDTH: 680mm

BACKSWEEP: 6°

UPSWEEP: 6°

DROP: 3.75″

CLAMPING: 22.2mm

SPEC:

COLOR: metallic grey

FRAME: 4130 full crmo frame, heat treated dropout, removable brake pivots & guides

FORK: BT BIKES “Divide” full 4130 crmo fork

BARS: heat treated 4130 crmo bar

GRIPS: SALTPLUS “XL” Vex compound grips

STEM: BT BIKES cnc’d alloy, front loading stem

HEADSET: SALT “PRO” int. headset, sealed bearing

LEVER: TEKTRO “RT-354A” alloy brake levers

BRAKES: TEKTRO “800A” caliper front, “RX6” mini v-brake rear

CRANKS: BT BIKES tubular 3pc crmo, 48 spline cranks

BB: mid size, press fit, sealed bearing

PEDALS: SALTPLUS “Stealth” nylon/fiberglass pedals

CHAIN: SALTPLUS “Warlock” halflink chain

CHAINRING: BT BIKES “Chromatic” crmo 27t sprocket

DRIVER: 10T sealed bearing cassette driver

DERAILLEUR: –

SHIFTER: –

FRONT HUB: BT BIKES fully sealed hub, 3/8″ axle, 36h

REAR HUB: BT BIKES cassette hub, fully sealed, 14mm hollow axle, 36h

FRONT RIM: BT BIKES “CX26” double wall rim, 36h

REAR RIM: BT BIKES “CX26” double wall rim, 36h

SEAT: BT BIKES “Team” slim padded rail seat

SEAT POST: BT BIKES “620” alloy micro-adjust seat post

SEAT CLAMP: BT BIKES forged alloy seat clamp

TIRES: BT Bikes “Helix V2” tires 700c x 45c

MUDGUARDS: –

WEIGHT: 13kg (28.7lbs) – Medium
