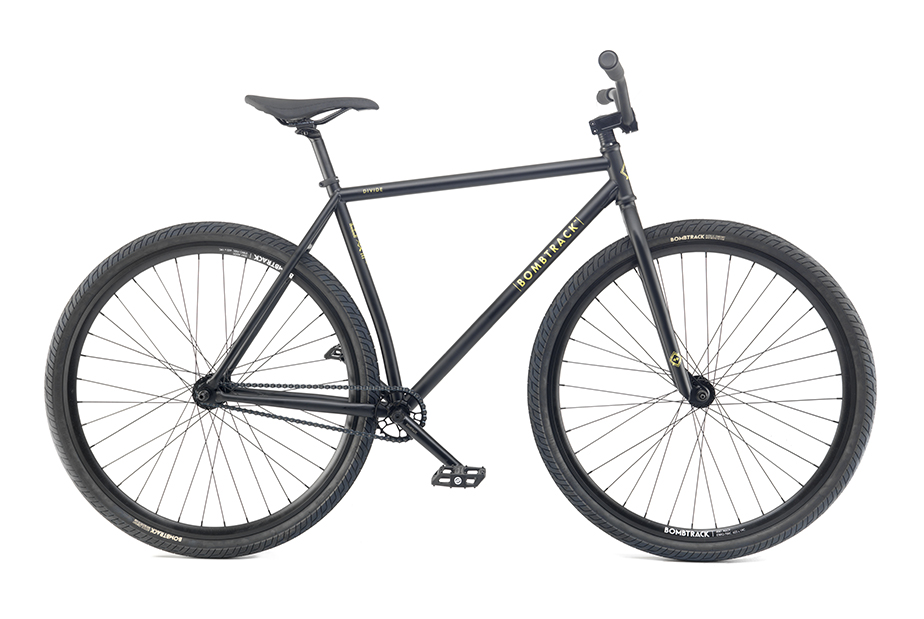

Bombtrack Divide 2015

Description:

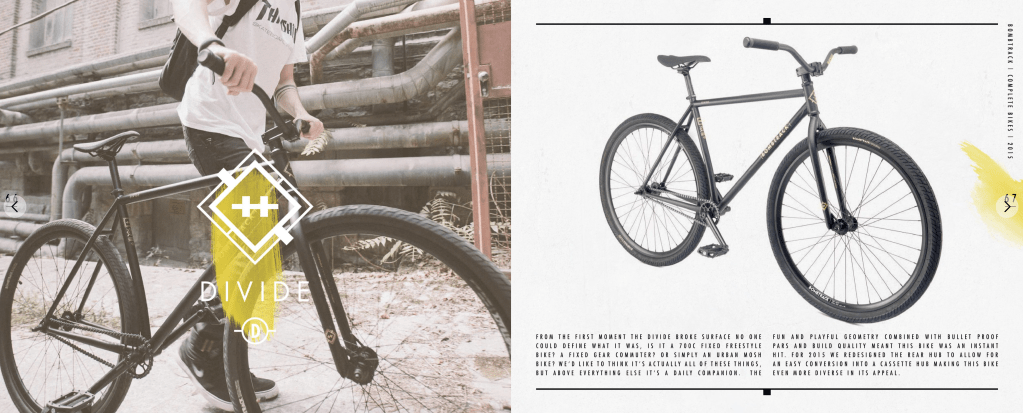

From the first moment the Divide broke surface no one could define what it was, is it a 700c fixed freestyle bike? a fixed gear commuter? or simply an urban mosh bike? We’d like to think it’s actually all of these things, but above everything else it’s a daily companion. The fun and playful geometry combined with bullet proof pars and build quality meant this bike was an instant hit. For 2015 we redesigned the rear hub to allow for an easy conversion into a cassette hub making this bike even more diverse in its appeal.

Details:

Release Date:

2015

Manufacturer:

Bombtrack Bicycle Co.

MSRP: n/a

Color(s):

Matte Black
Metallic Grey

Size(s):

S
M
L

Wheel Size:

700c

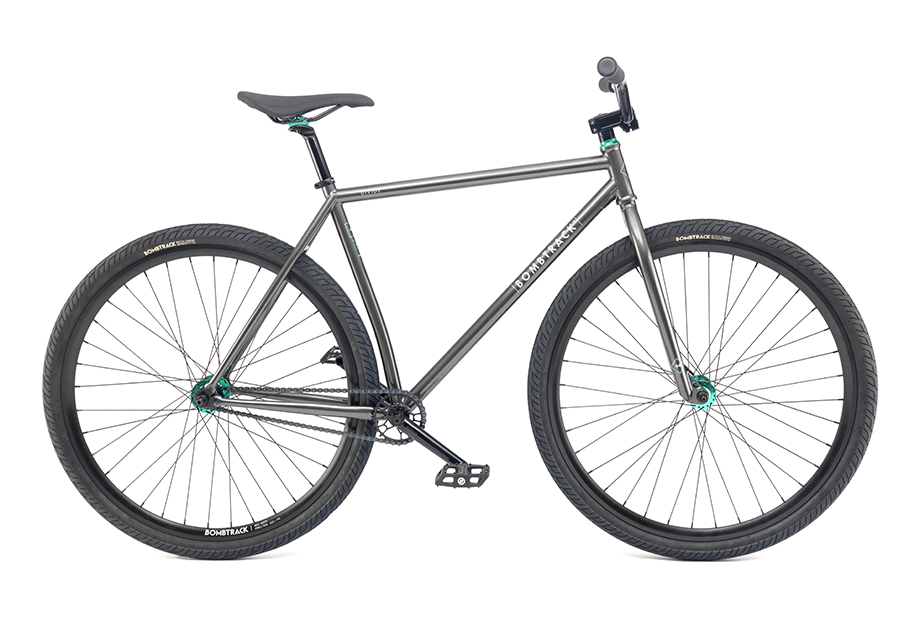

Gallery:

Specifications:

GEO:

FRAME

TOPTUBE: (Effective Horiz.) Small – 587.61mm / Medium – 605.72mm / Large – 628mm

CHAINSTAY LENGTH: 403mm

HEADTUBE ANGLE: 73°

SEATTUBE ANGLE: 74°

BOTTOM BRACKET: 45mm drop

SEAT TUBE: (C-T) Small – 470mm / Medium – 510mm / Large – 560mm

HANDLEBAR

RISE: 3.75″

WIDTH: 26.8″

BACKSWEEP: 6°

UPSWEEP: 6°

CLAMPING: 22.2mm

SPEC:

COLOR 1: matt black

COLOR 2: metallic grey

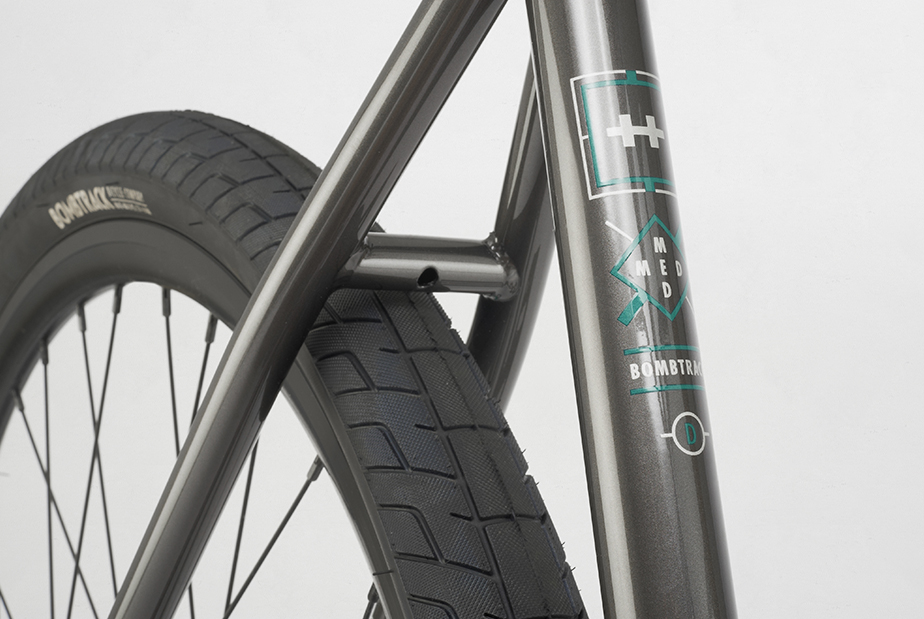

FRAME: 4130 full crmo frame, heat treated dropout

FORK: BT BIKES Divide full 4130 crmo fork

BARS: full 4130 crmo bar, full heat treated

GRIPS: BT BIKES Team flangless grips

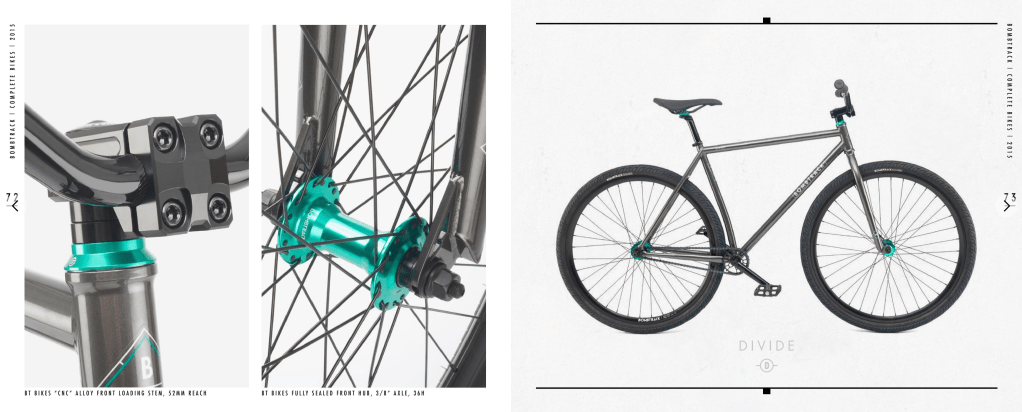

STEM: BT BIKES CNC alloy front loading stem, 52mm reach

HEADSET: SALT AM integ. headset, sealed bearing

LEVER: PROMAX BL-428 alloy brake levers

BRAKES: TEKTRO 800A caliper brakes

CRANKS: BT BIKES tubular 3pc, 48 spline cranks, 165mm (S), 170mm (M,L)

BB: mid size, press fit, sealed bearing

PEDALS: SALT AM nylon/fiberglass pedals

CHAIN: SALTPLUS Warlock halflink chain

CHAINRING: BT BIKES Chromatic cnc, crmo 27t sprocket

DRIVER: 10T 1-piece fixed gear, cog (cassette driver sold separately)

FRONT HUB: BT BIKES fully sealed hub, 3/8» axle, 36h

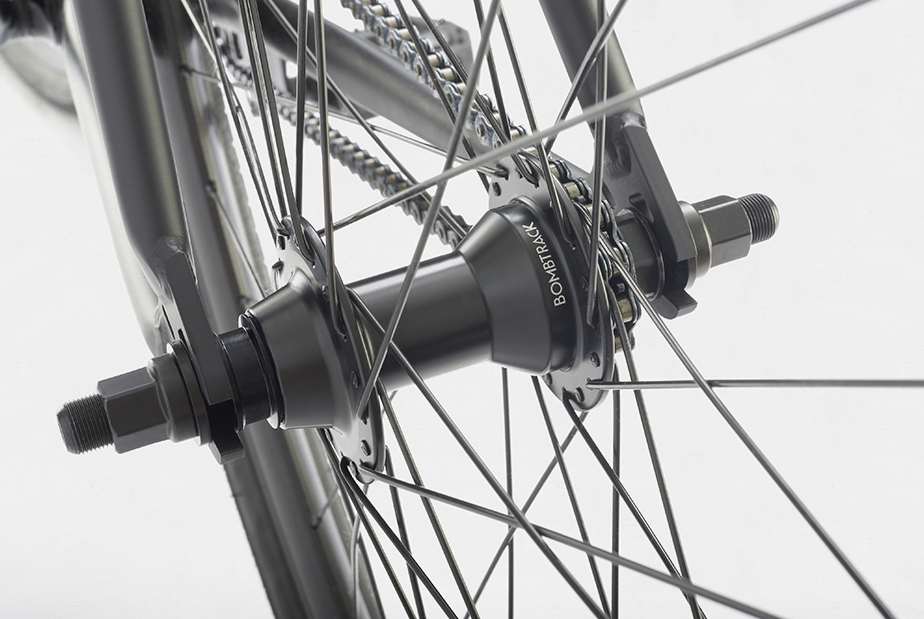

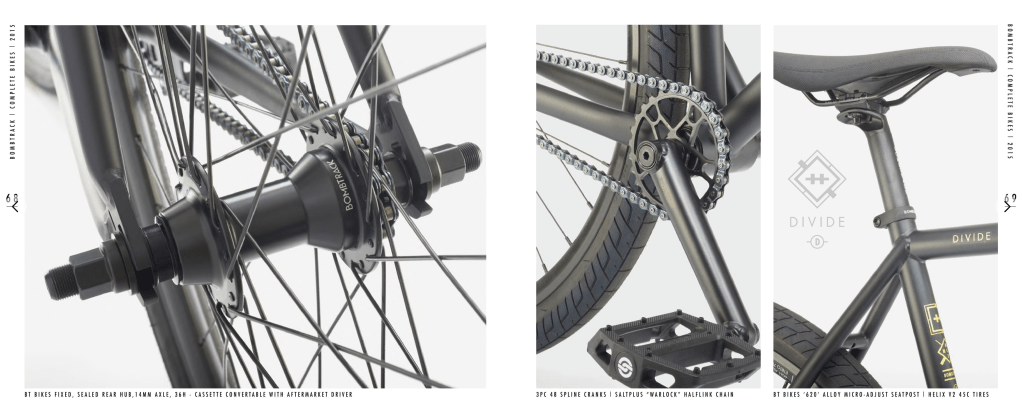

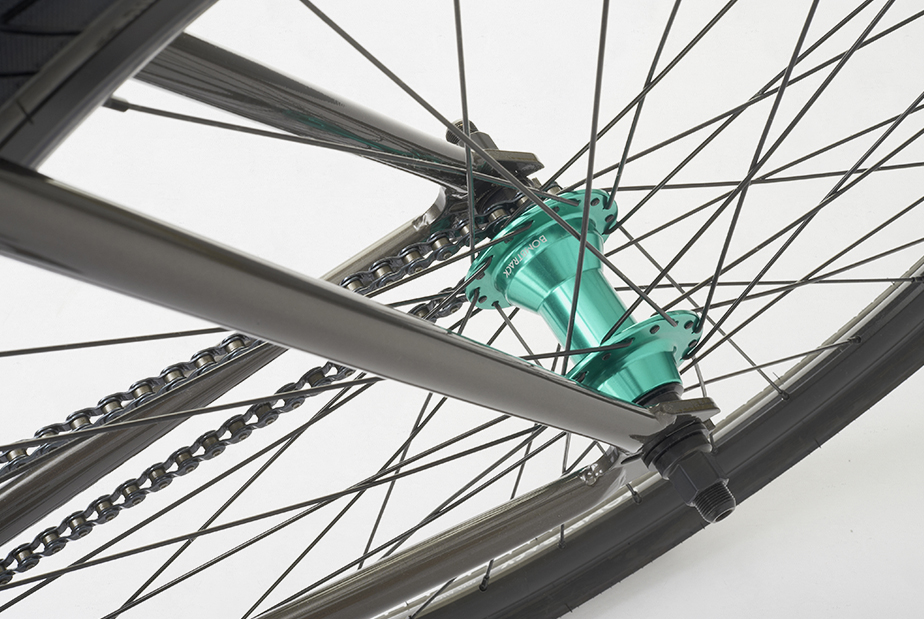

REAR HUB: BT BIKES fixed/cassette sealed hub,14mm hollow axle, 36h

FRONT RIM: BT BIKES CX26 double wall, pin joint rim, 36h

REAR RIM: BT BIKES CX26 double wall, pin joint rim, 36h

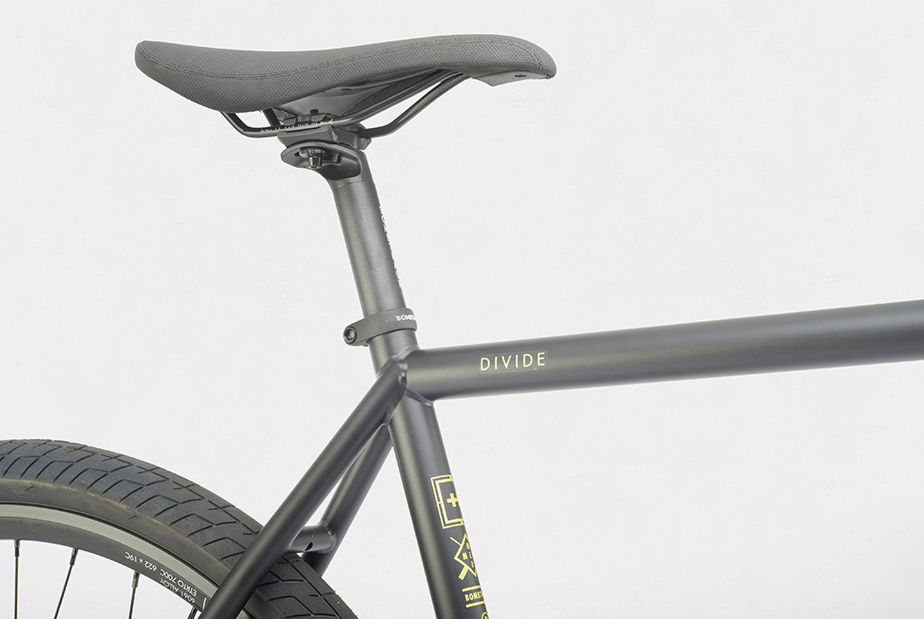

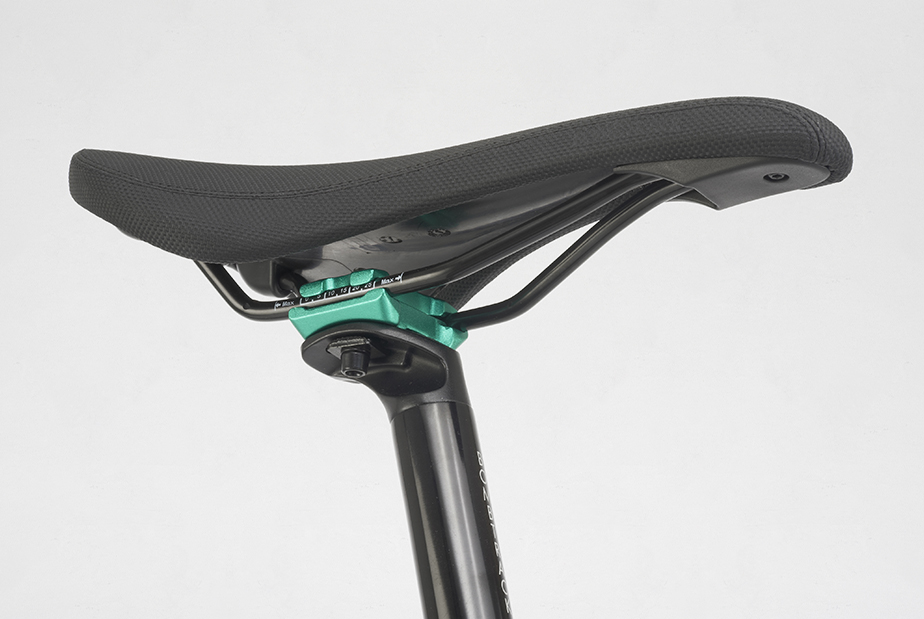

SEAT: BT BIKES rail seat

SEAT POST: BT BIKES ‘620’ alloy micro-adjust seat post

SEAT CLAMP: BT BIKES alloy seat clamp

TIRES: BT Bikes Helix v2 tires 700c x 45c

WEIGHT: 12.1kg (26.6lbs) – Medium
