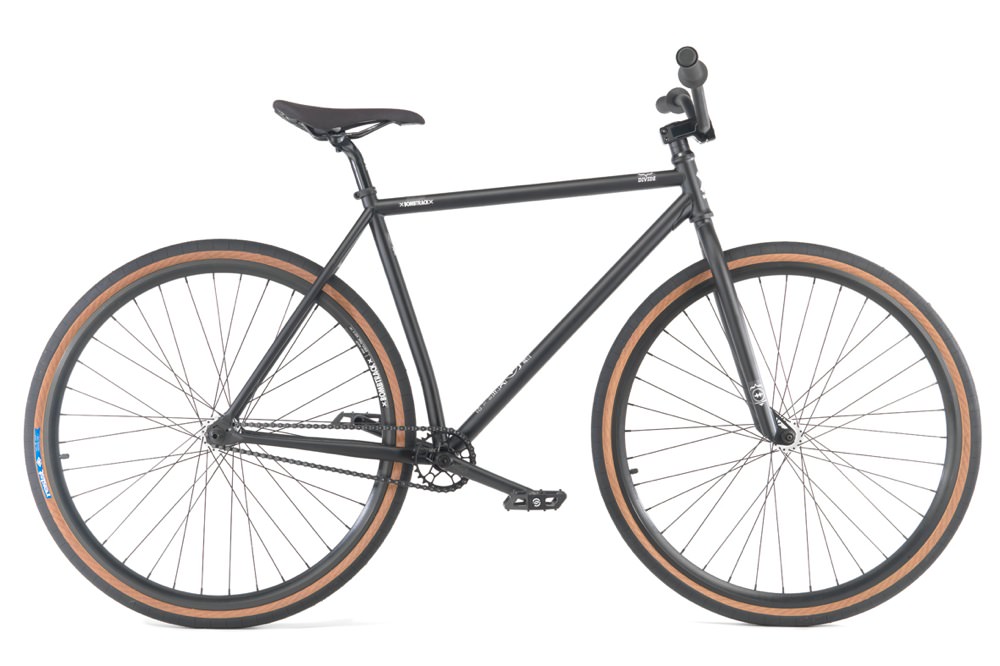

Bombtrack Divide 2013

Description:

The ‘Divide’ feeds the demand for a long lasting urban fixed gear bike, which is both an “undestroyable courier work-bike for daily (ab)use” and has the advantageous characteristics of a fixed gear freestyle bike. This is a bike that the market has so far been unable to offer, with other brands opting only for the 26” route. The ‘Divide’ is equally happy going for a “light” tricking session as it is cutting across the city at blistering speed but in total comfort. Jump curbstones and stairsets, throw your bars while still being able to commute to office, school or university and mosh your urban area full speed ahead. This bike really is a daily companion.

For those pure FGFS 700c riders we recommend to take a look onto S size with its deep sloped top tube (also available as frame only).

Details:

Release Date:

  • 2013

Manufacturer:

  • Bombtrack Bicycle Co.

MSRP: n/a

Color(s):

  • Matte Black
  • Matte White

Size(s):

  • S
  • M
  • L

Wheel Size:

  • 700c

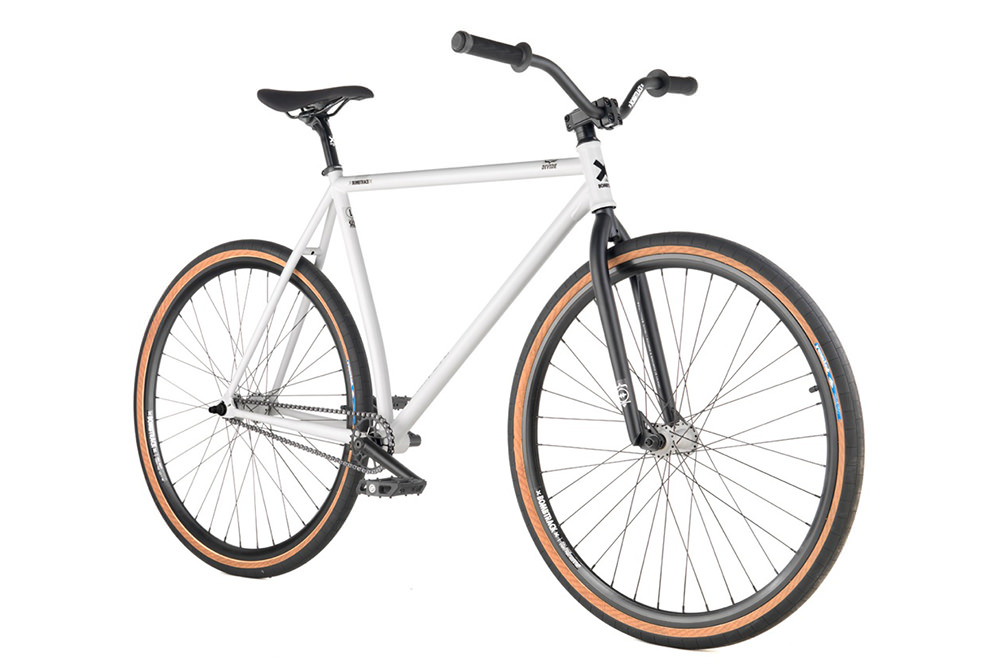

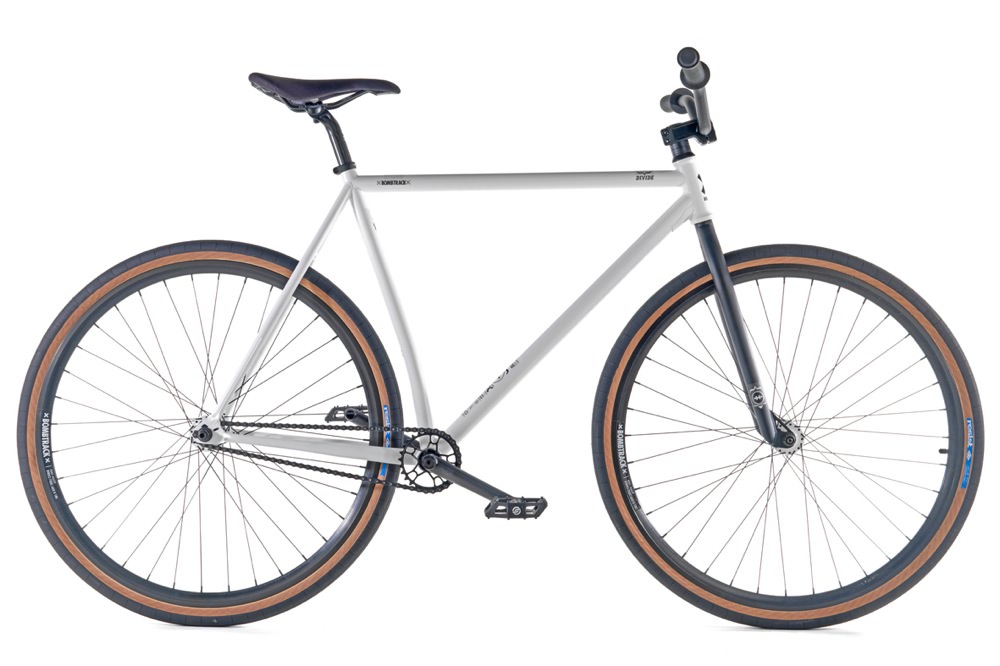

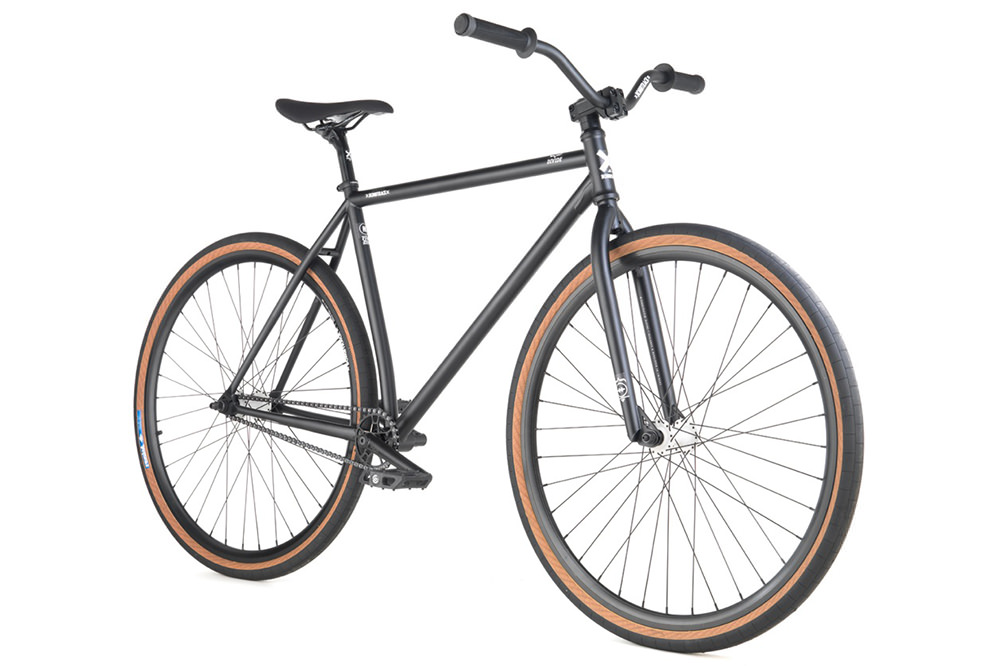

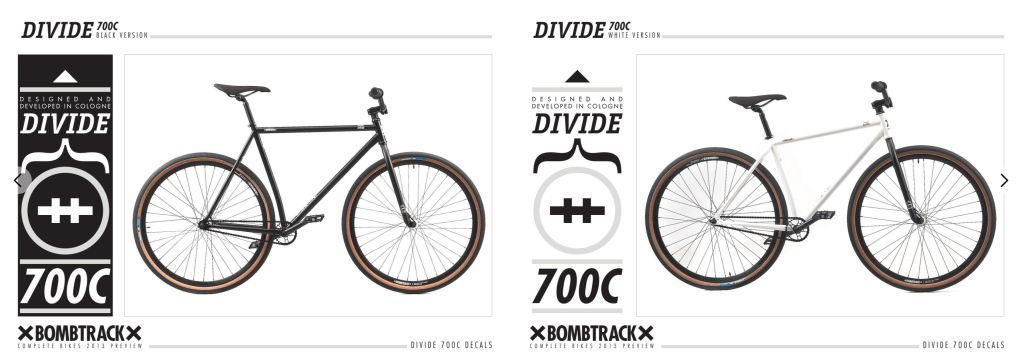

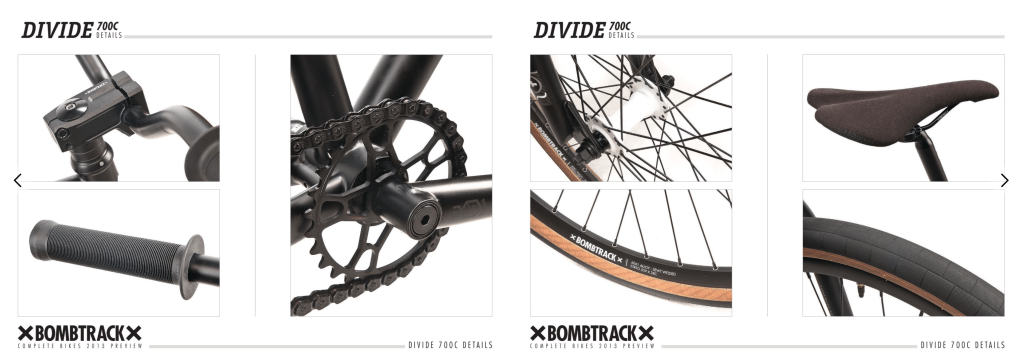

Gallery:

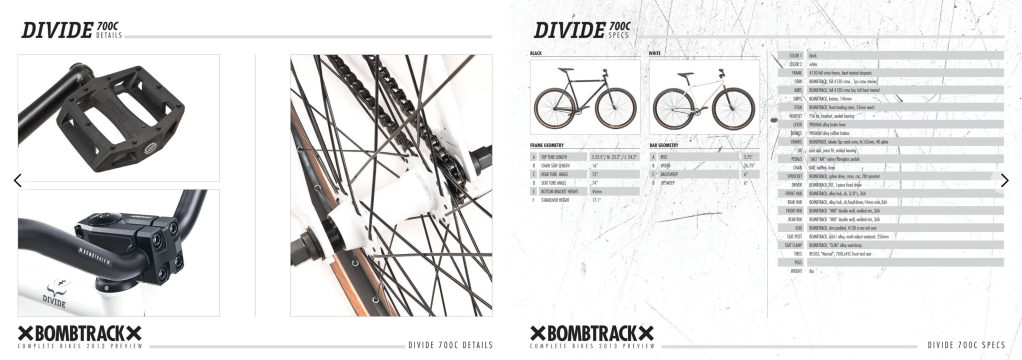

Specifications:

Spec:

COLOR 1: matt black

COLOR 2: matt white

FRAME: 4130 full crmo frame, heat treated dropout laser cutted

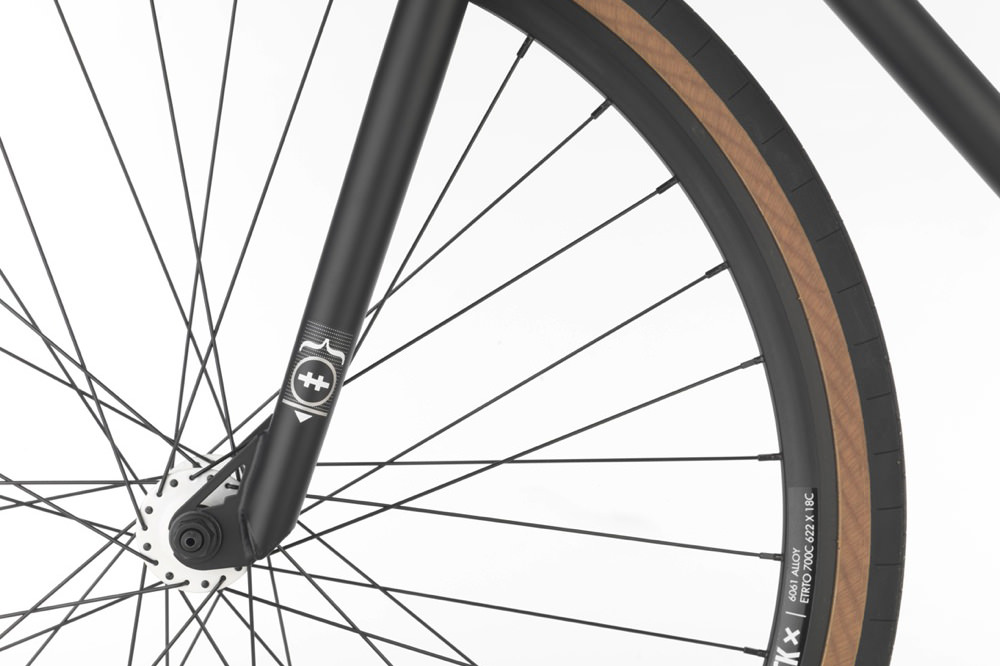

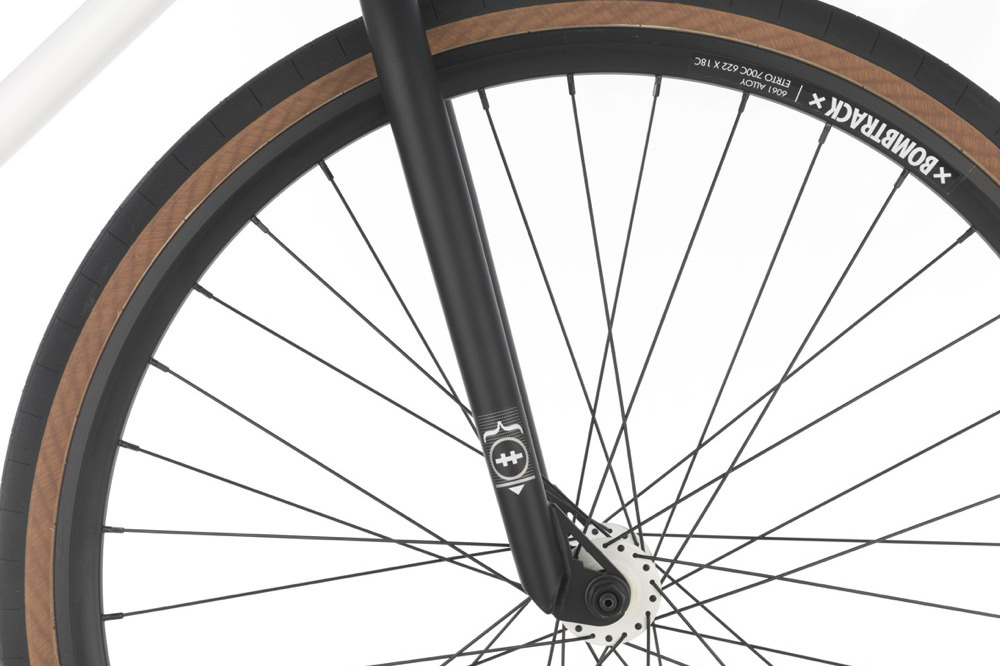

FORK: full 4130 crmo fork

BARS: full 4130 crmo bar, full heat treated

GRIPS: mushroom style grips, 148mm

STEM: BT BIKES “CNC” alloy front loading stem, 52mm reach

HEADSET: SALT “AM-V2″ int. headset, sealed bearing

CRANKS: BT BIKES “Major” 3pc crank, 165mm for S, 170mm for M & L.

BB: mid size, press fit, sealed bearing

PEDALS: SALT “AM” nylon/fibreglass pedals

CHAIN: SALTPLUS “Warlock” halflink chain

SPROCKET: BT BIKES “Chromatic” cnc, crmo 27t sprocket

DRIVER: 10T 1-piece fixed grear, cog

FRONT HUB: BT BIKES fully sealed front hub, 3/8″s axle,

REAR HUB: BT BIKES fixed rear hub, sb,14mm axle, 36h with M30 FW thread

FRONT RIM: BT BIKES “CX26″ double wall, pin joint rim, 36h

REAR RIM: BT BIKES “CX26″ double wall, pin joint rim, 36h

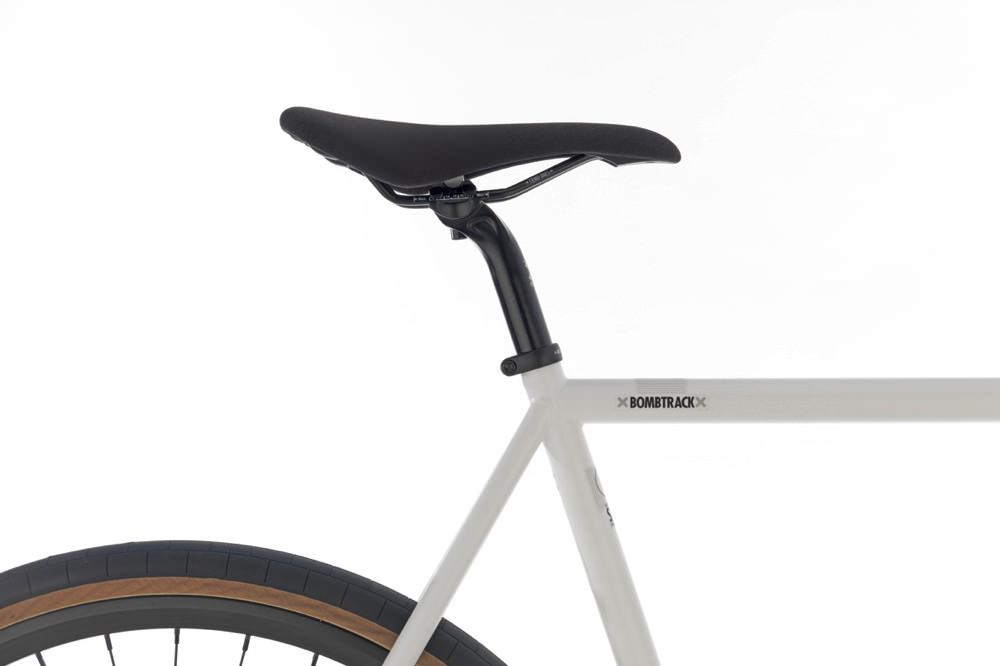

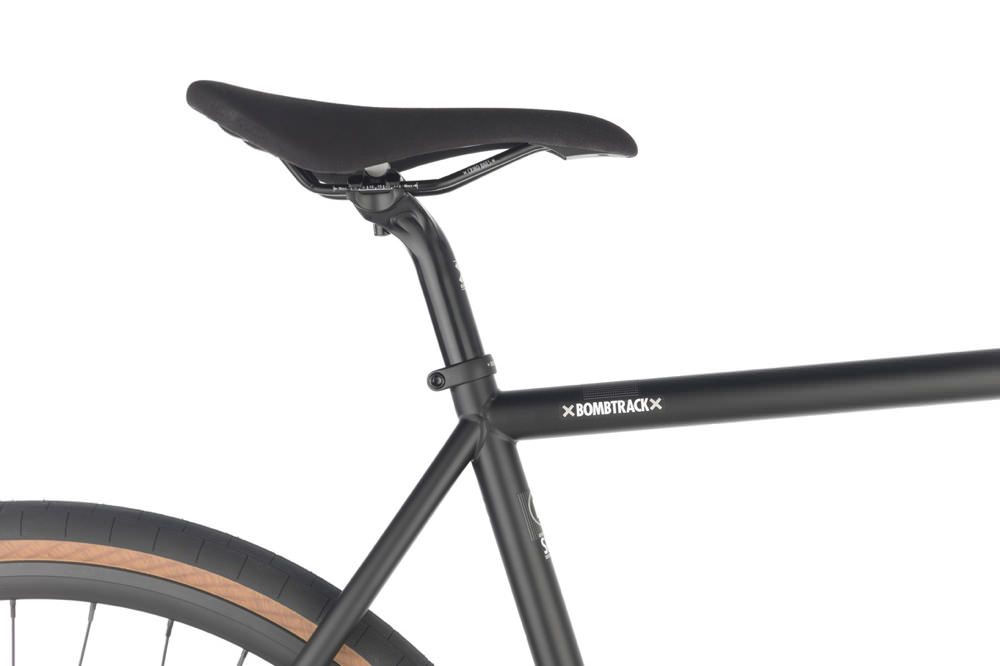

SEAT: BT BIKES crmo, “Team” rail seat

SEAT POST: BT BIKES alloy pivotal seatpost

SEAT CLAMP: BT BIKES alloy seatclamp

TIRES: RESIST “Nomad” 700c x 45c front and rear

WEIGHT: 11.6kg (25.57lbs)

Geo:

FRAME

TOPTUBE: S = 23″, M = 23.75″, L = 24.75″

CHAINSTAY LENGTH: 16″

HEADTUBE ANGLE: 73°

SEATTUBE ANGLE: 74°

BOTTOM BRACKET: mid-bb width: 74mm height: 45mm drop cnc machined and heat-treated

SEAT TUBE LENGTH: S – 470mm / M – 510mm / L – 560mm

HEADTUBE: cnc machined and heat-treated, int. h/set

HANDLEBAR

RISE: 3.75″

WIDTH: 26.8″

BACKSWEEP: 6°

UPSWEEP: 6°
