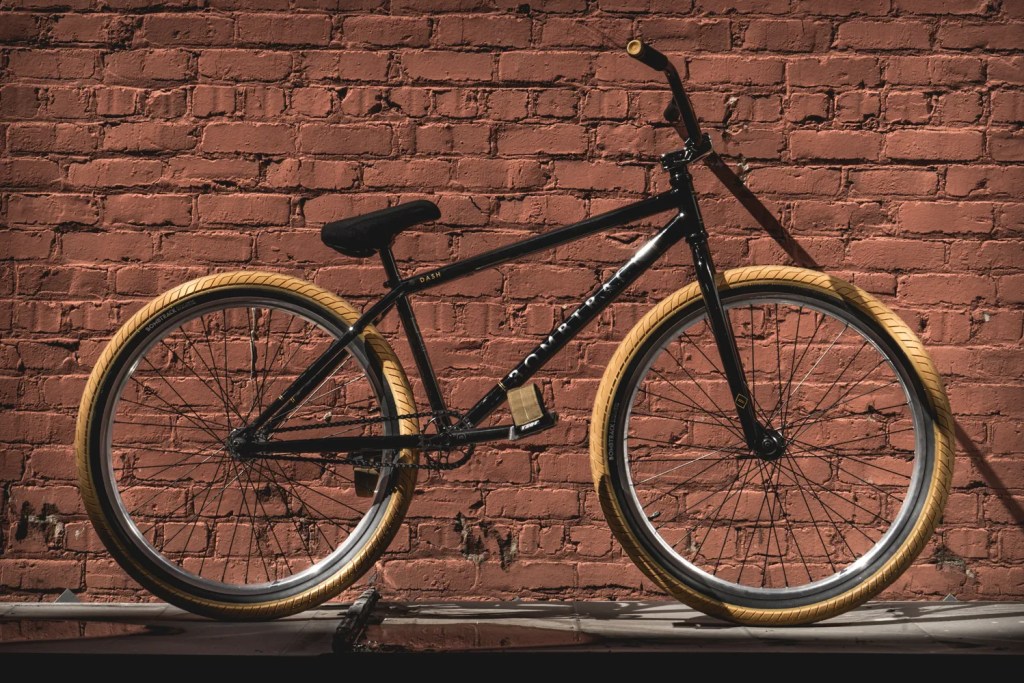

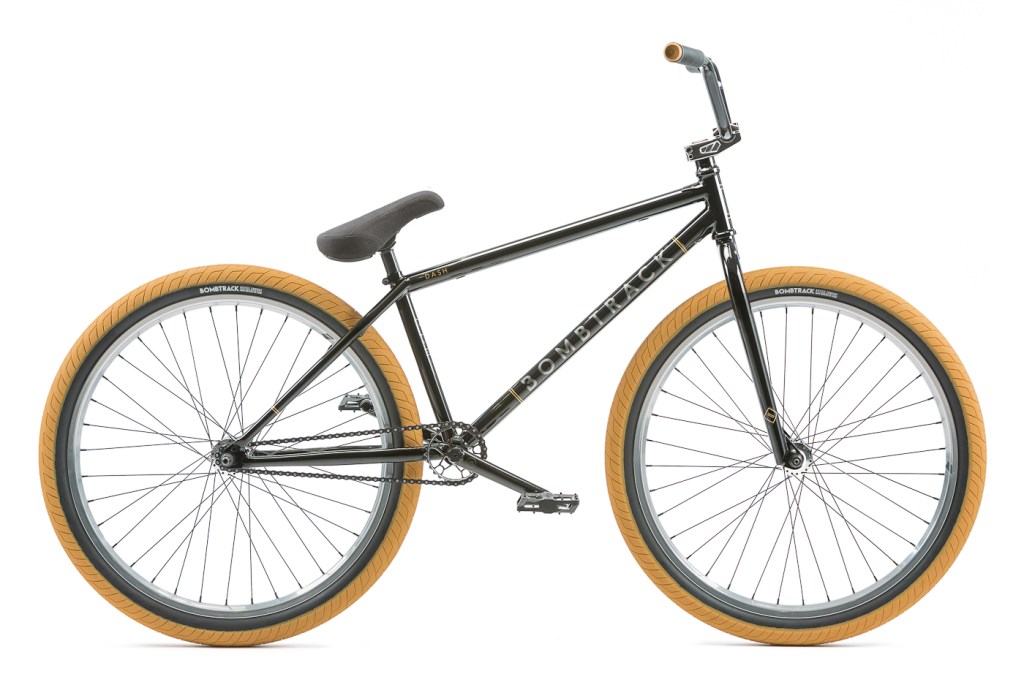

Bombtrack Dash 2016

Description:

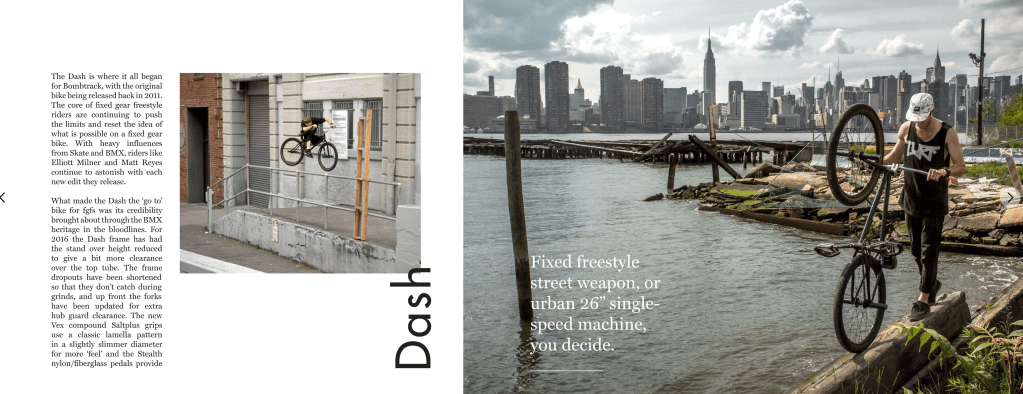

The Dash is where it all began for Bombtrack, with the original bike being released back in 2011. The core of fixed gear freestyle riders are continuing to push the limits and reset the idea of what is possible on a fixed gear bike. With heavy influences from Skate and BMX, riders like Elliott Milner and Matt Reyes continue to astonish with each new edit they release.

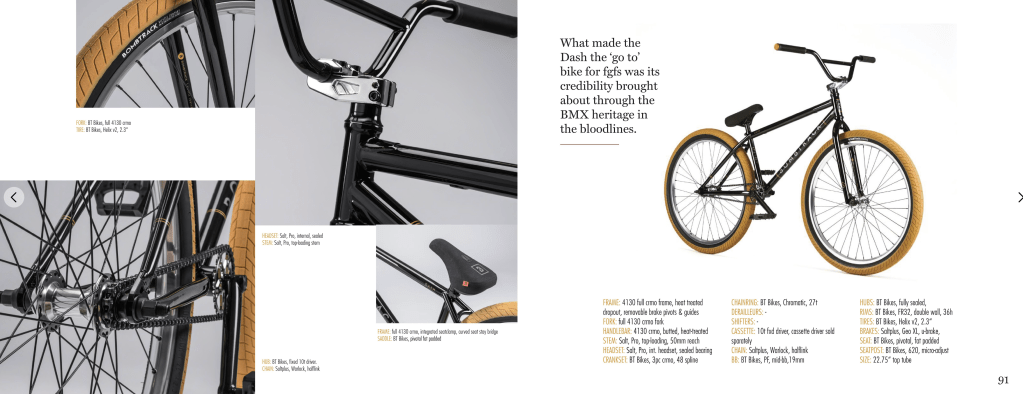

What made the Dash the ‘go to’ bike for fgfs was its credibility brought about through the BMX heritage in the bloodlines. For 2016 the Dash frame has had the stand over height reduced to give a bit more clearance over the top tube. The frame dropouts have been shortened so that they don’t catch during grinds, and up front the forks have been updated for extra hub guard clearance. The new Vex compound Saltplus grips use a classic lamella pattern in a slightly slimmer diameter for more ‘feel’ and the Stealth nylon/fiberglass pedals provide improved grip and a solid base for pedal grinds.

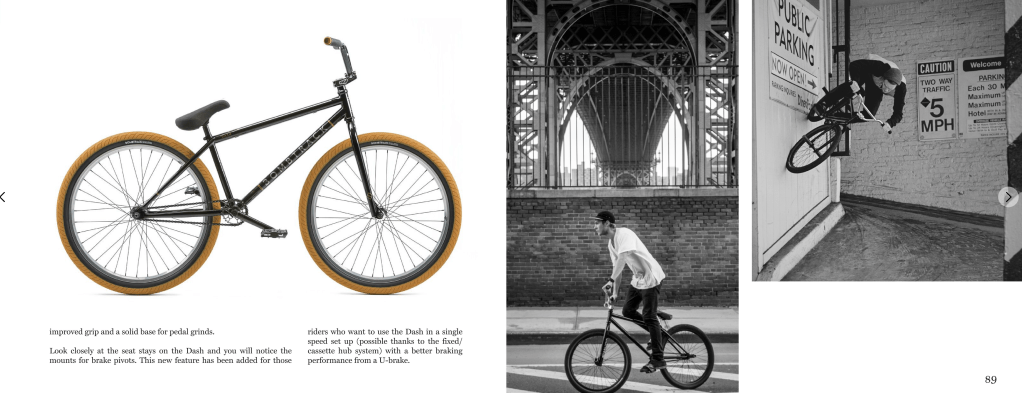

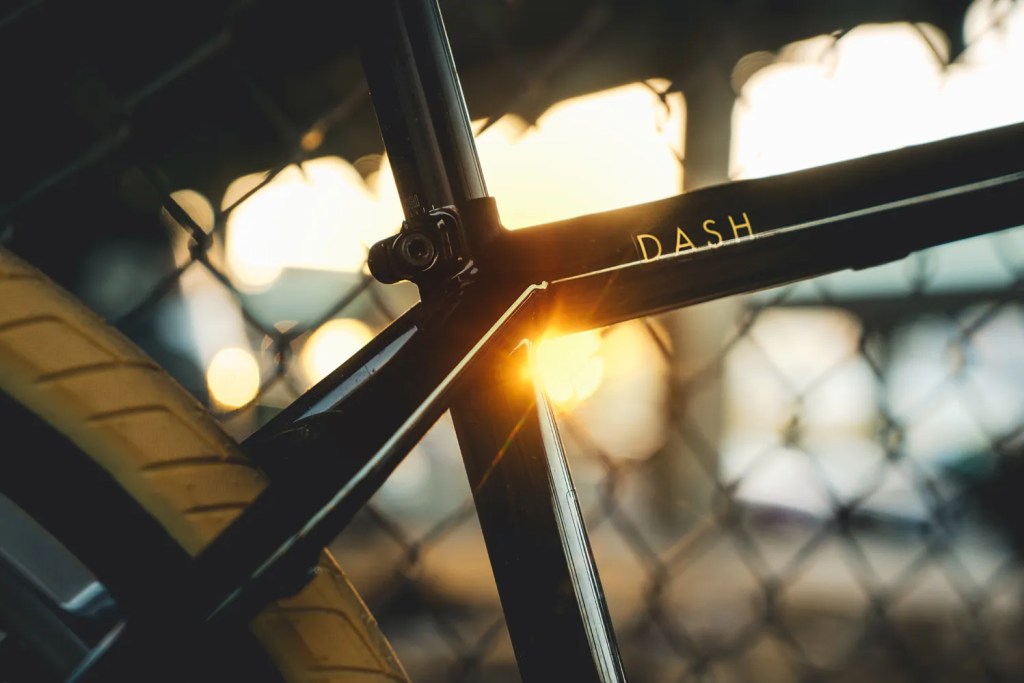

Look closely at the seat stays on the Dash and you will notice the mounts for brake pivots. This new feature has been added for those riders who want to use the Dash in a single speed set up (possible thanks to the fixed/cassette hub system) with a better braking performance from a u-brake.

Details:

Release Date:

  • 2016

Manufacturer:

  • Bombtrack Bicycle Co.

MSRP: n/a

Color(s):

  • Metallic Black

Size(s):

  • One size

Wheel Size:

  • 26″

Gallery:

Promo Content:

Specifications:

GEO:

FRAME

TOPTUBE: (actual) 578mm (22.75″)

CHAINSTAY LENGTH: 393mm (15.4″)

HEADTUBE ANGLE: 75°

SEATTUBE ANGLE: 71°

BOTTOM BRACKET: 10mm

SEAT TUBE: (C-T) 332mm (13.1″)

HANDLEBAR

WIDTH: 29″

BACKSWEEP: 10°

UPSWEEP: 4°

RISE: 5.5″

CLAMPING: 22.2mm

SPEC:

COLOR: metallic black

FRAME: 4130 full crmo frame, heat treated dropout, removable pivots & guides

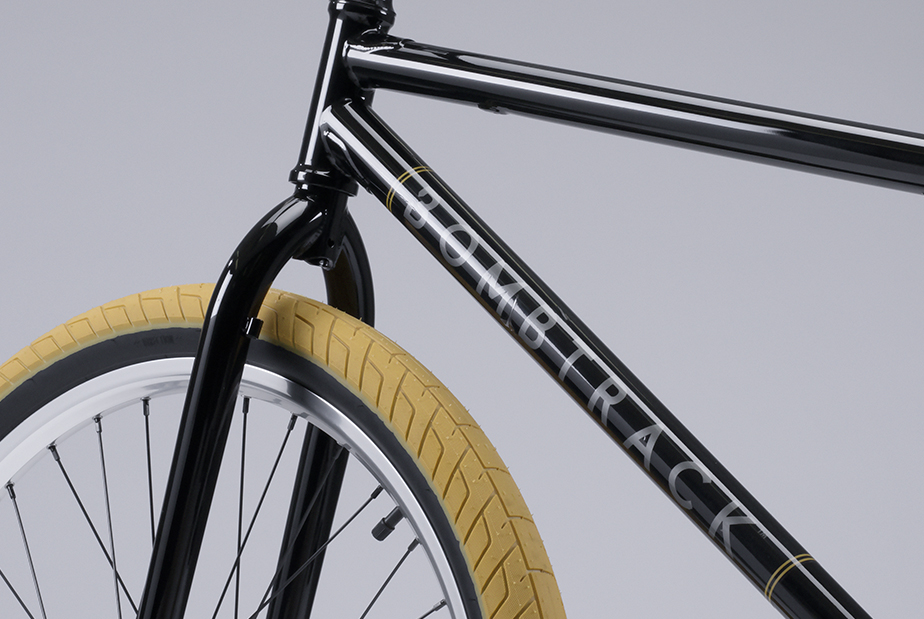

FORK: full 4130 crmo fork – steerer with integ. crown race. tapered blades

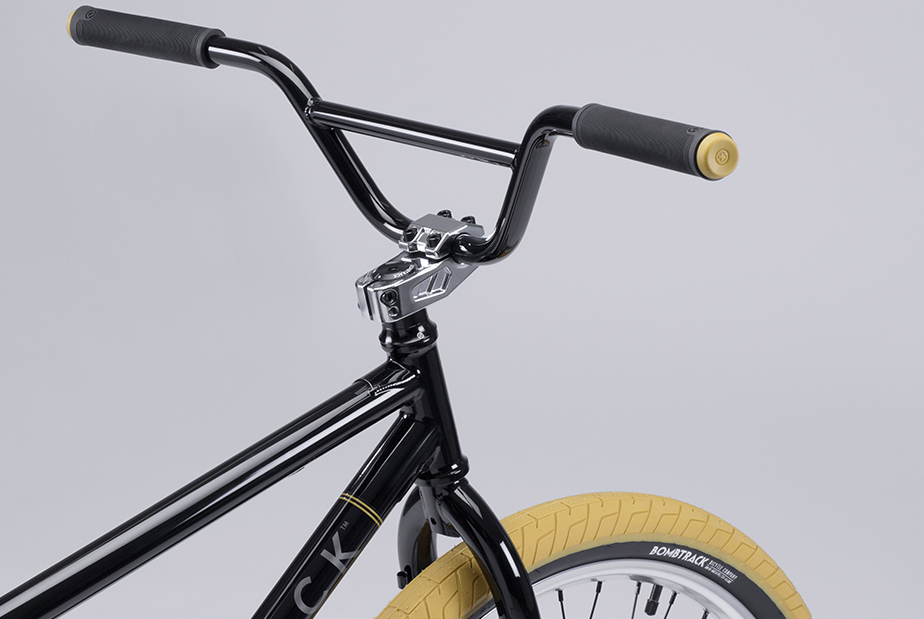

BARS: heat treated 4130, butted crmo bar

GRIPS: SALTPLUS “XL” Vex compound grips

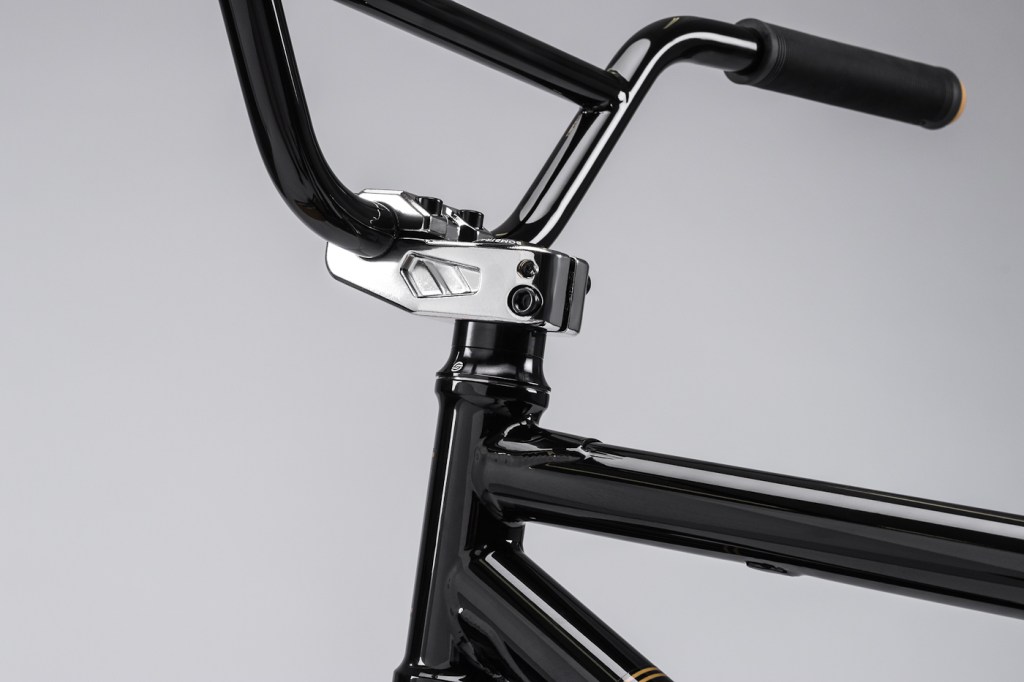

STEM: SALT “Pro” top loading stem, 50mm reach

HEADSET: SALT “PRO” int. headset, sealed bearing

LEVER: TEKTRO “XL-510” brake levers

BRAKES: TEKTRO “C324” front, SALTPLUS “Geo XL” rear u-brake

CRANKS: BT BIKES tubular 3pc, 48 spline cranks

BB: mid size, press fit, sealed bearing

PEDALS: SALTPLUS “Stealth” nylon/fiberglass pedals

CHAIN: SALTPLUS “Warlock” halflink chain

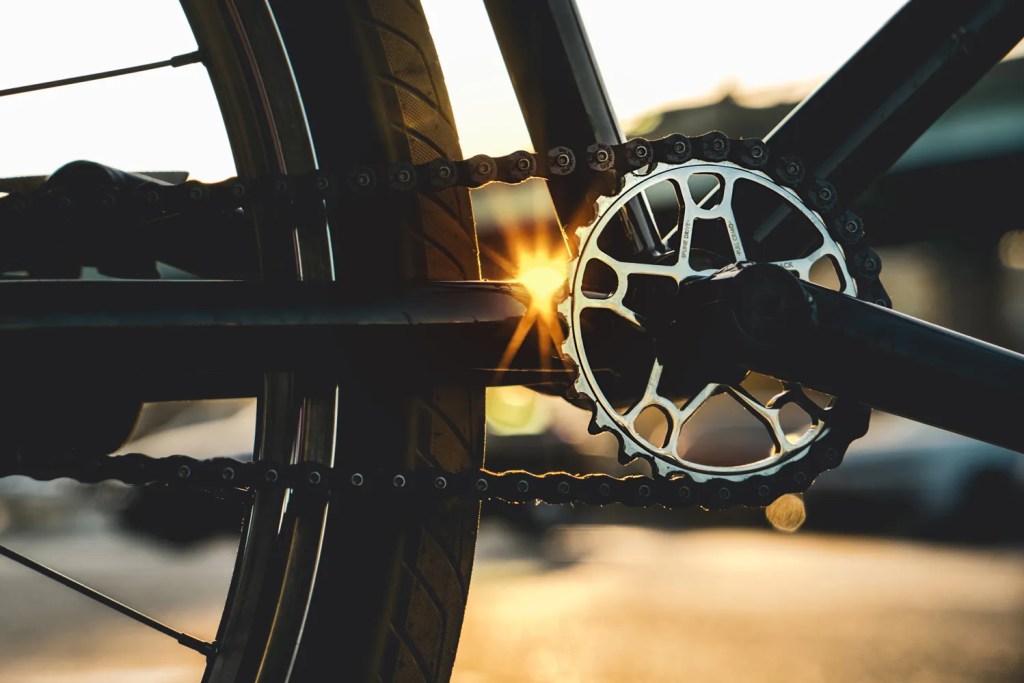

CHAINRING: BT BIKES “Chromatic” crmo 26t sprocket

DRIVER: 10T 1-piece, fixed driver

DERAILLEUR: –

SHIFTER: –

FRONT HUB: BT BIKES fully sealed front hub, 3/8″s axle, 36h

REAR HUB: BT BIKES fixed sealed rear hub,14mm axle, 36h

FRONT RIM: BT BIKES  “FR32” double wall rim with eyelets, 36h

REAR RIM: BT BIKES  “FR32” double wall rim with eyelets, 36h

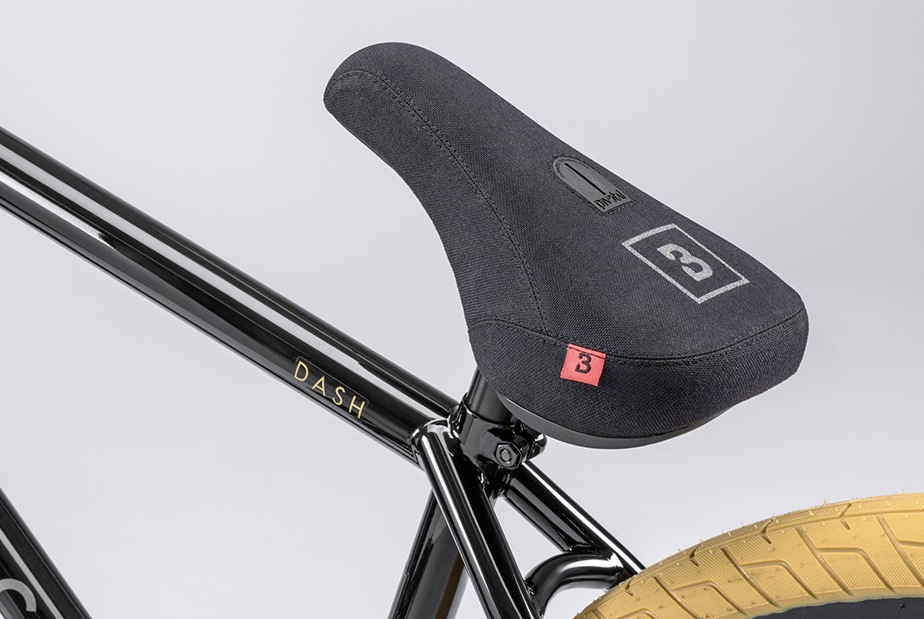

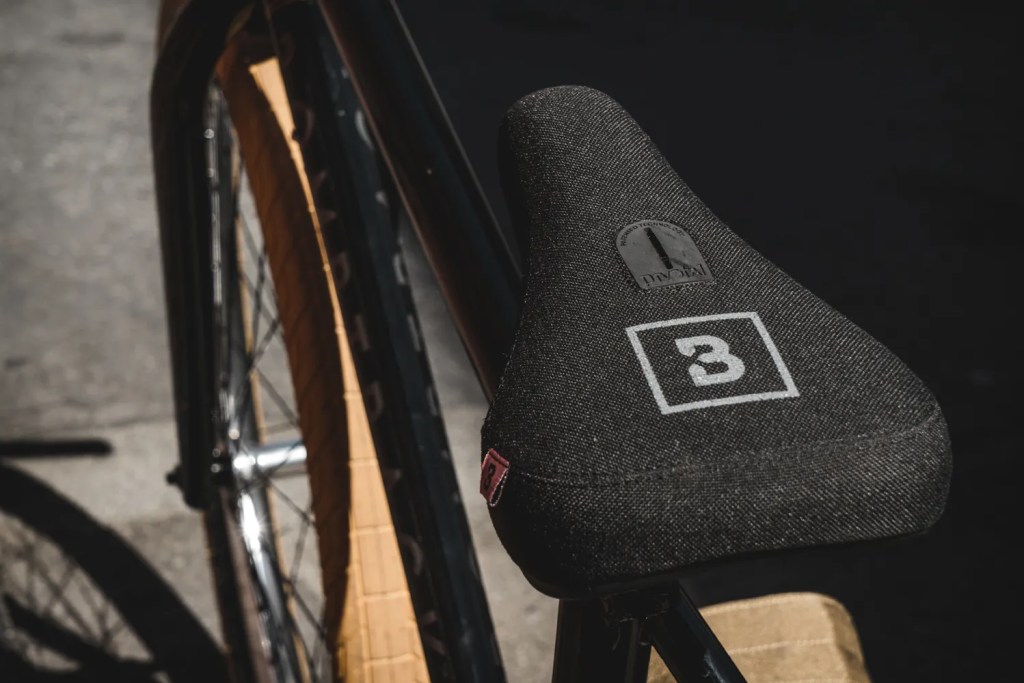

SEAT: BT BIKES fat padded pivotal seat

SEAT POST: BT BIKES alloy pivotal seat post

SEAT CLAMP: integrated

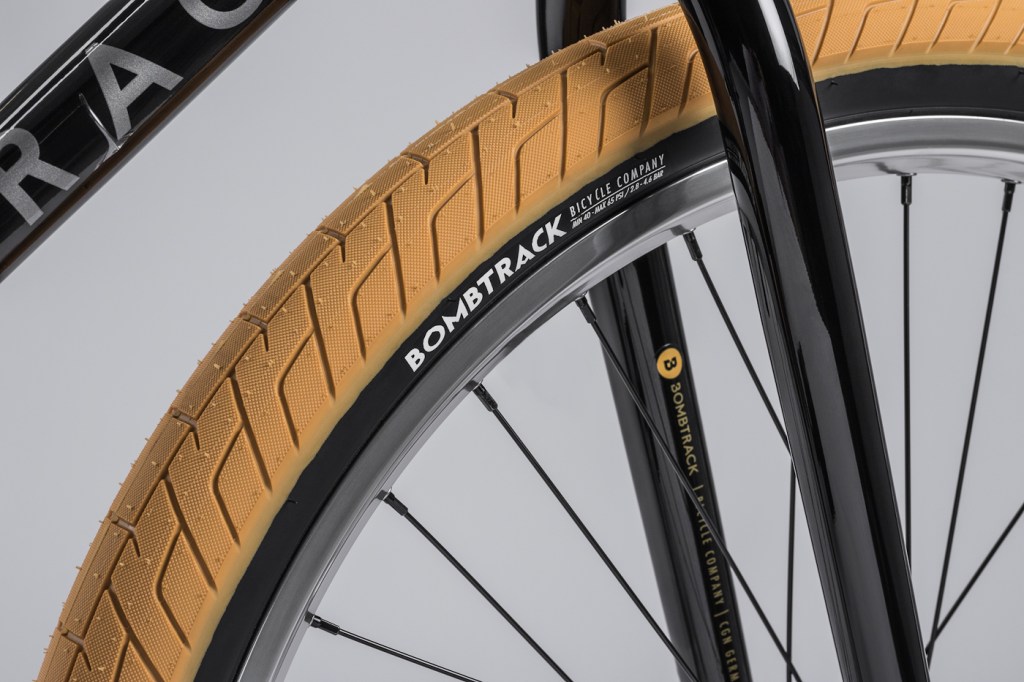

TIRES: BT BIKES “Helix v2″ 26″ x 2.3” tires

MUDGUARDS: –

WEIGHT: 12.6kg (27.8lbs)
