Bombtrack Dash 2015

Description:

Well established in the fixed freestyle world as the go-to for an out of the box street weapon the Dash is now something of a benchmark in the sport. The bike continues to evolve, with input from team rider Elliott Milner, the stand over height is lower, the bars are taller and the dropouts smaller. The Dash is also laying down some new rubber in the form of the Helix v2 street tires, and in a perfect 2.3” width they round off this incredible machine.

Details:

Release Date:

  • 2015

Manufacturer:

  • Bombtrack Bicycle Co.

MSRP: n/a

Color(s):

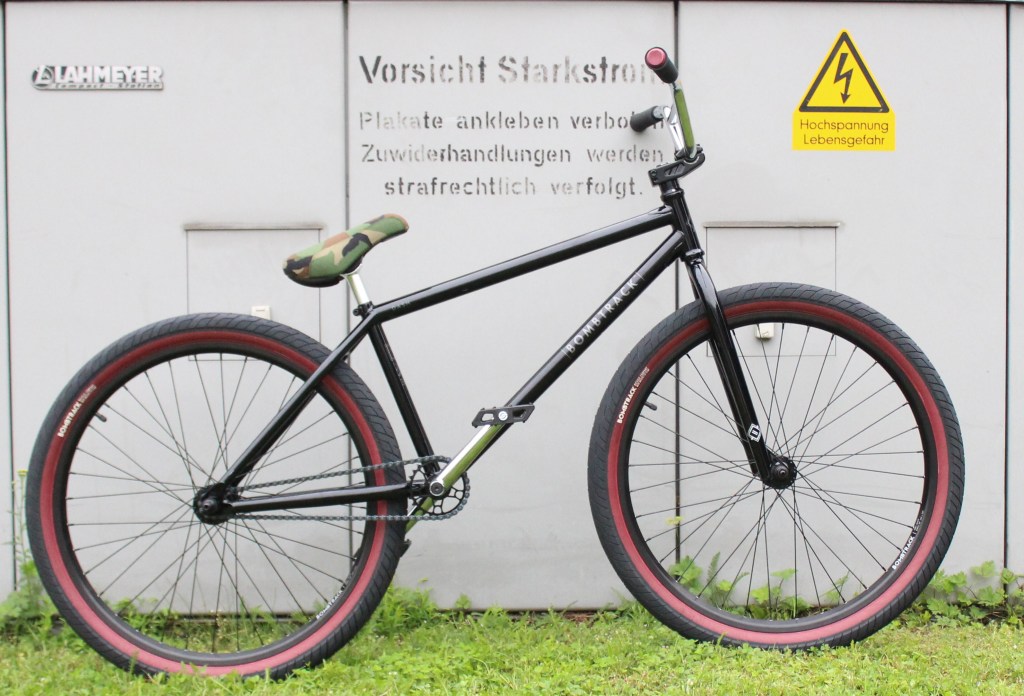

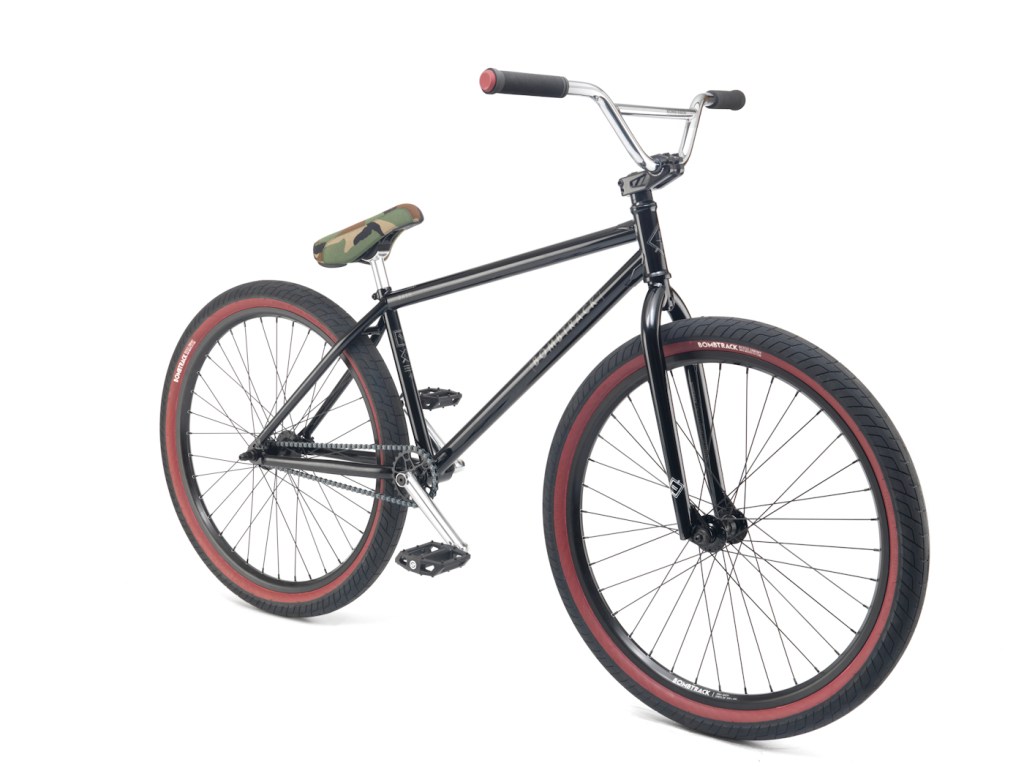

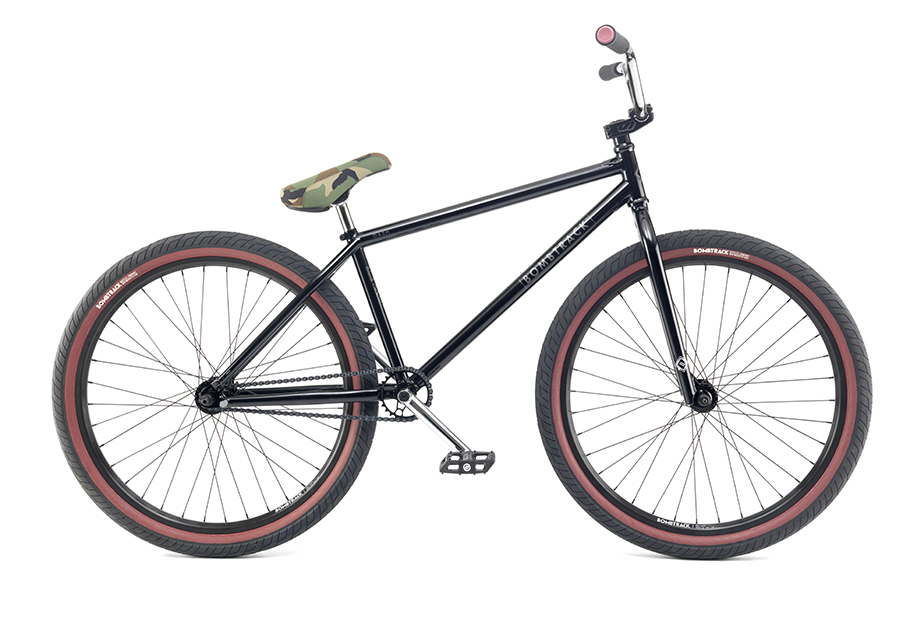

  • Glossy Black

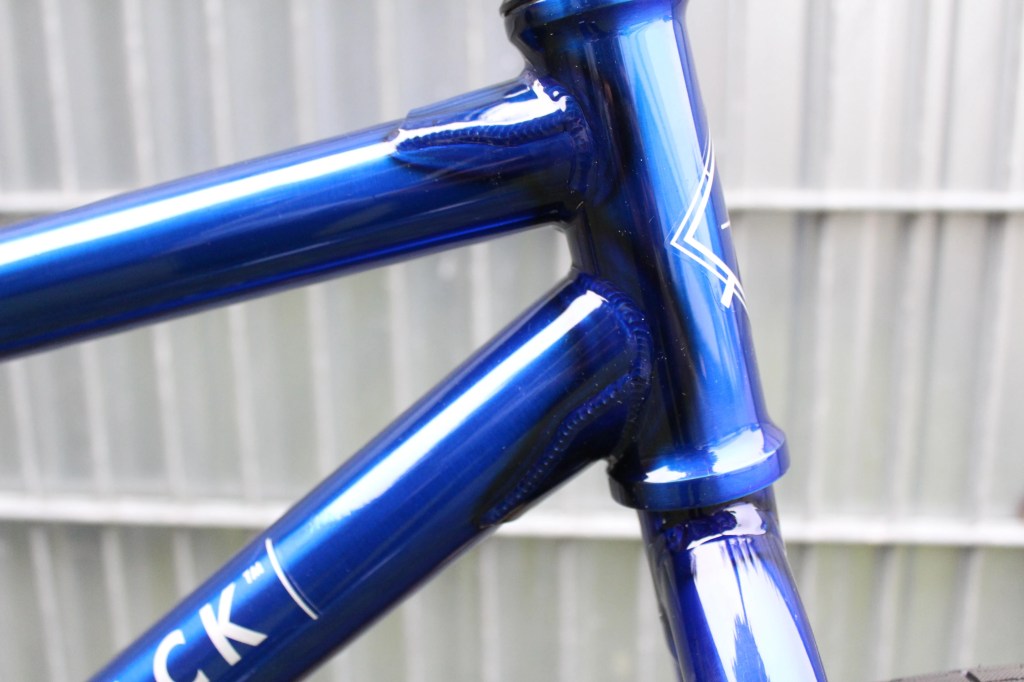

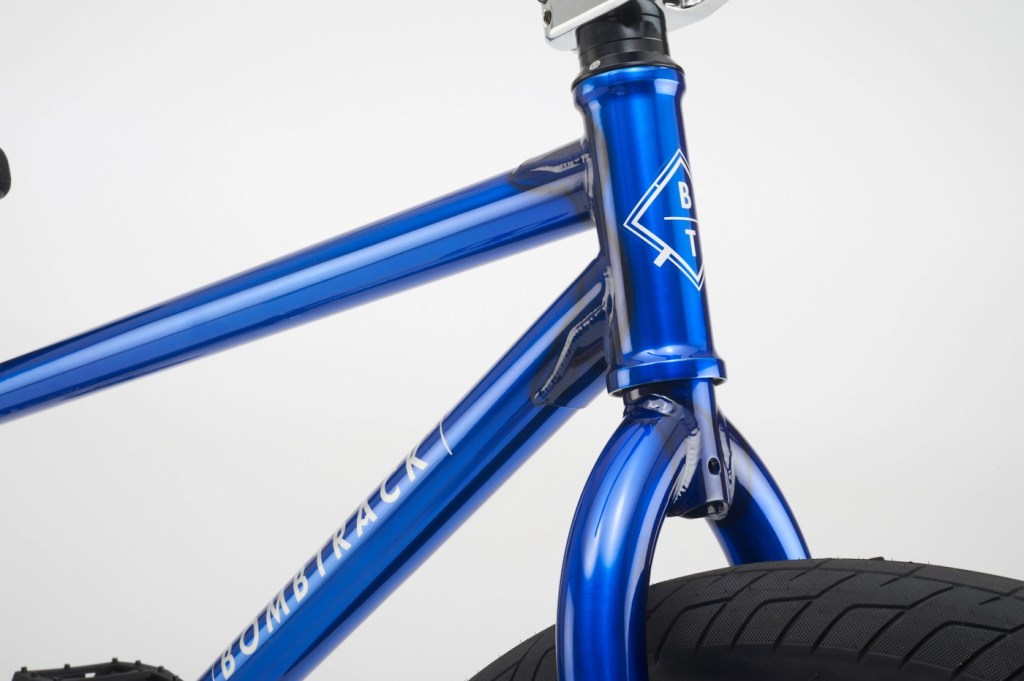

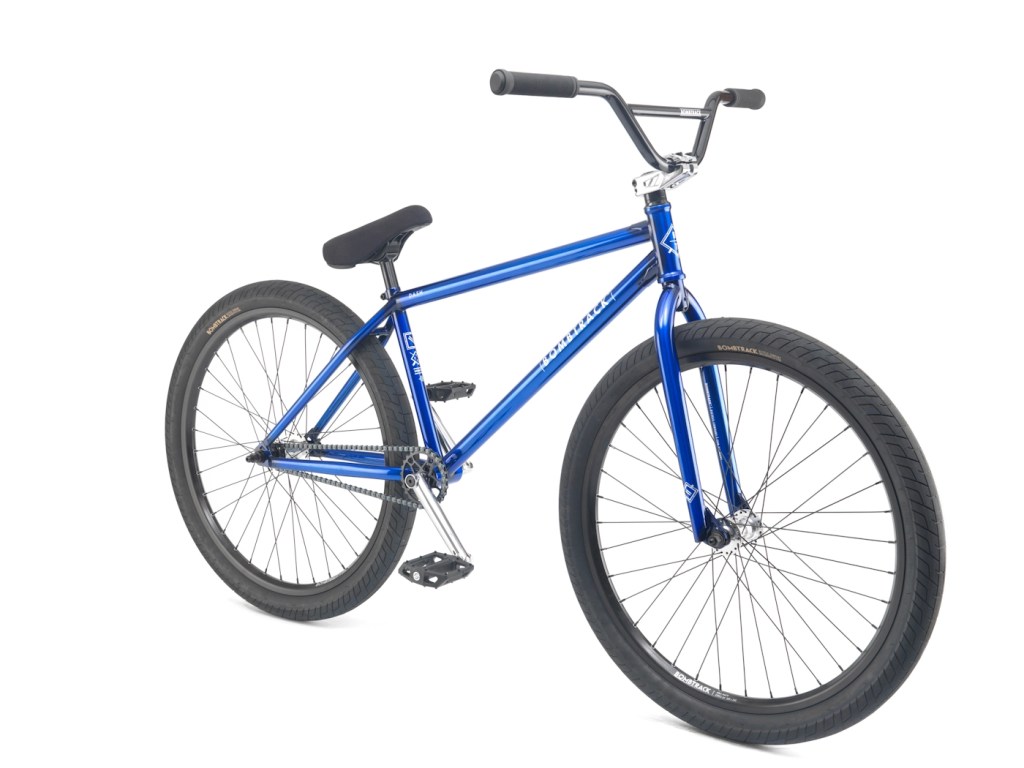

  • Translucent Blue

Size(s):

  • One size

Wheel Size:

  • 26″

Gallery:

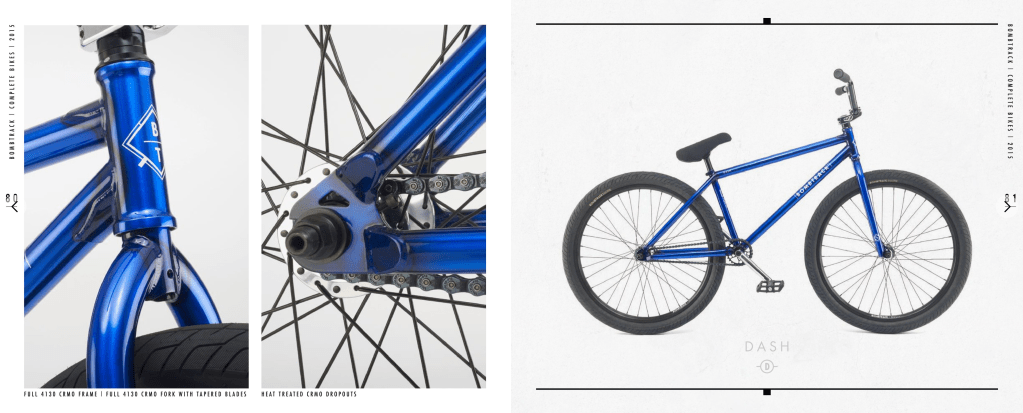

Promo Content:

Specifications:

GEO:

FRAME

TOPTUBE: (actual) 578mm (22.75″)

CHAINSTAY LENGTH: 393mm (15.4″)

HEADTUBE ANGLE: 75°

SEATTUBE ANGLE: 71°

BOTTOM BRACKET: –

SEAT TUBE: (C-T) 350mm (13.8)

HANDLEBAR

RISE: 5.5″

WIDTH: 29″

BACKSWEEP: 10°

UPSWEEP: 4°

CLAMPING: 22.2mm

SPEC:

COLOR 1: glossy black

COLOR 2: translucent blue

FRAME: 4130 full crmo frame, heat treated laser cut dropout, integ. chain tensioner

FORK: full 4130 crmo fork – steerer with integ. crown race; tapered blades

BARS: full 4130 crmo bar, butted, full heat treated

GRIPS: BT BIKES Team flangless grip

STEM: SALT “PRO” toploading stem, 50mm reach

HEADSET: SALT “AM″ integ. headset, sealed bearing

LEVER: TEKTRO XL-510 brake levers

BRAKES: TEKTRO C324 front, 800A rear alloy caliper brakes

CRANKS: BT BIKES tubular 3pc, 48 spline crmo cranks, 175mm

BB: mid size, press fit, sealed bearing

PEDALS: SALT AM nylon/fibreglass pedals

CHAIN: SALTPLUS Warlock halflink chain

CHAINRING: BT BIKES Chromatic cnc, crmo 26t sprocket

DRIVER: 10T 1-piece fixed gear, cog (cassette driver sold separately)

FRONT HUB: BT BIKES fully sealed front hub, 3/8″s axle, 36h

REAR HUB: BT BIKES fixed/cassette sealed hub,14mm hollow axle, 36h

FRONT RIM: BT BIKES FR32 double wall, pin joint rim, with eyelets, 36h

REAR RIM: BT BIKES FR32 double wall, pin joint rim, with eyelets, 36h

SEAT: BT BIKES fat padded pivotal seat

SEAT POST: BT BIKES alloy pivotal seatpost

SEAT CLAMP: integrated

TIRES: BT BIKES Helix V2 tires 26″ x 2.3″

MUDGUARDS: –

WEIGHT: 12.8kg (28.22lbs)
