Bombtrack Dash 2015 Frame

Description:

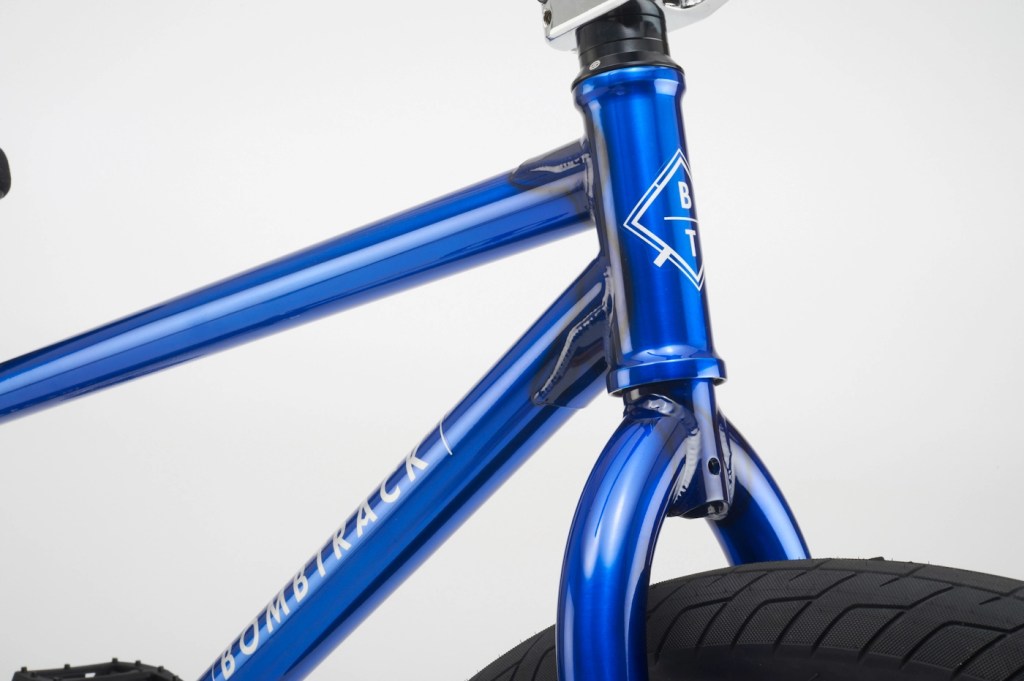

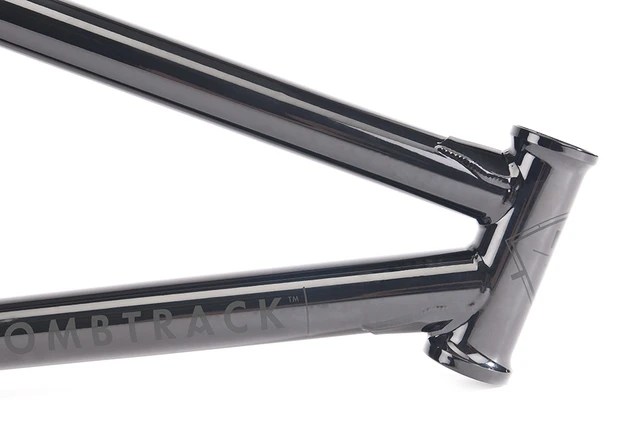

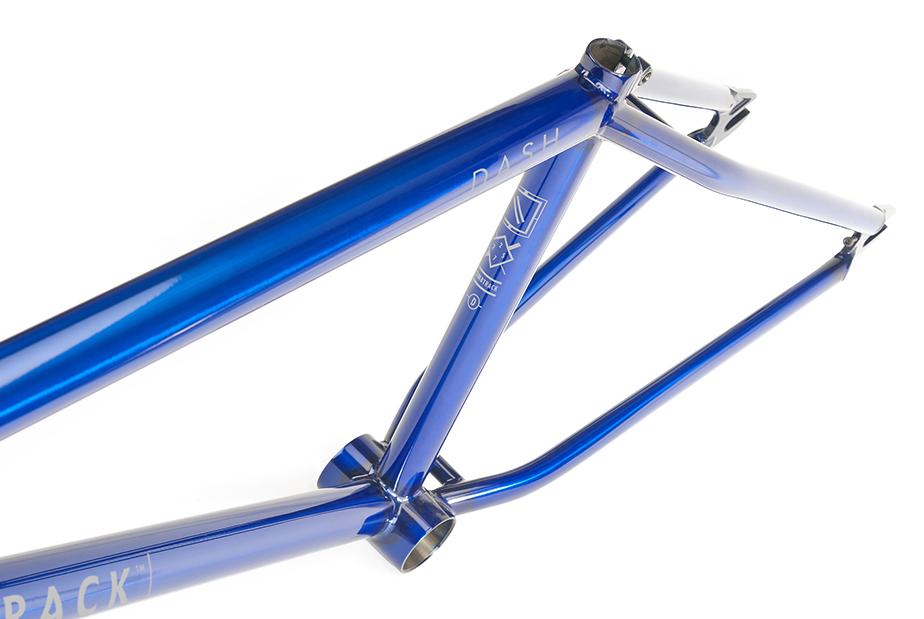

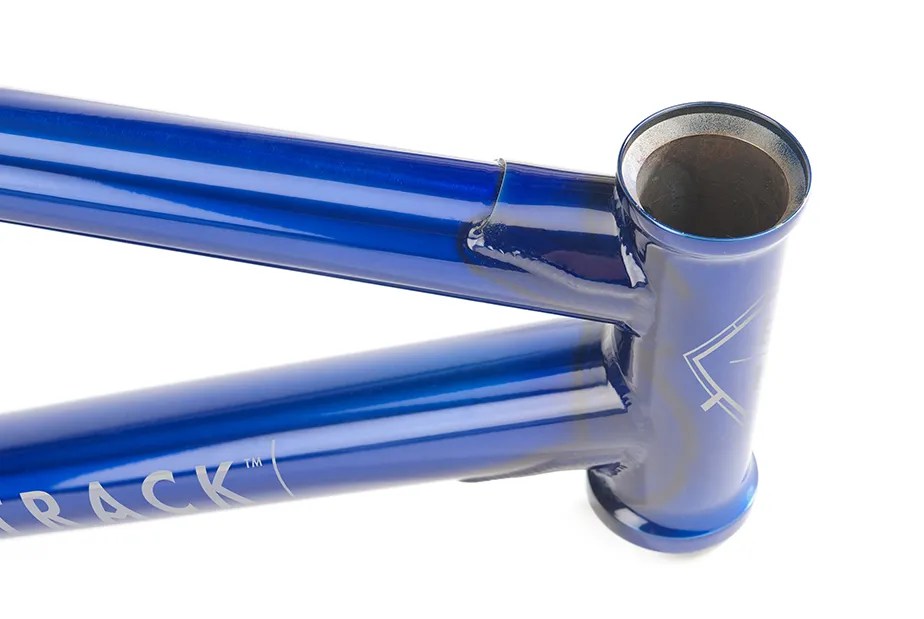

Well established in the fixed freestyle world, the Dash is known as something of a benchmark in the sport. The frame continues to evolve in parallel with this progressive sport, and is loaded with features like never before. Built from Sanko crmo tubing that is heat treated before welding allowing for the weight benefit of thinner tubing but with the strength of a much thicker gauge. The head tube junction is beefed up with top and down tube gussets. The oval and tapered chain and seat stays allow for anything up to 2.3” tires to be run without a problem. Out back the dropouts are cnc’d with an integrated chain tensioner to help you dial in the drive train. The stand over height has been lowered for more leg clearance and the head tube is a little steeper for a more responsive feel.

Details:

Release Date:

  • 2015

Manufacturer:

  • Bombtrack Bicycle Co.

MSRP: n/a

Color(s):

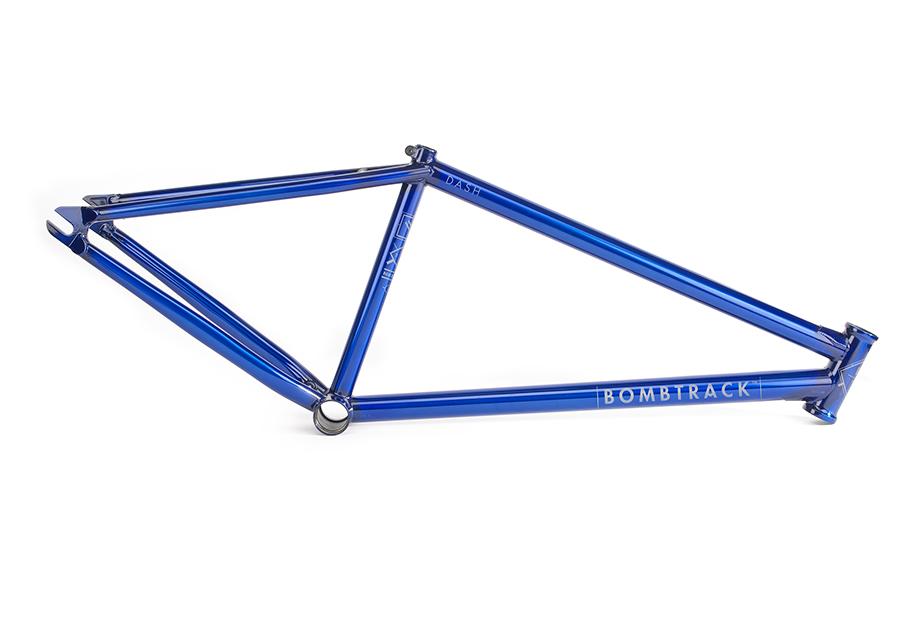

  • Transparent Blue

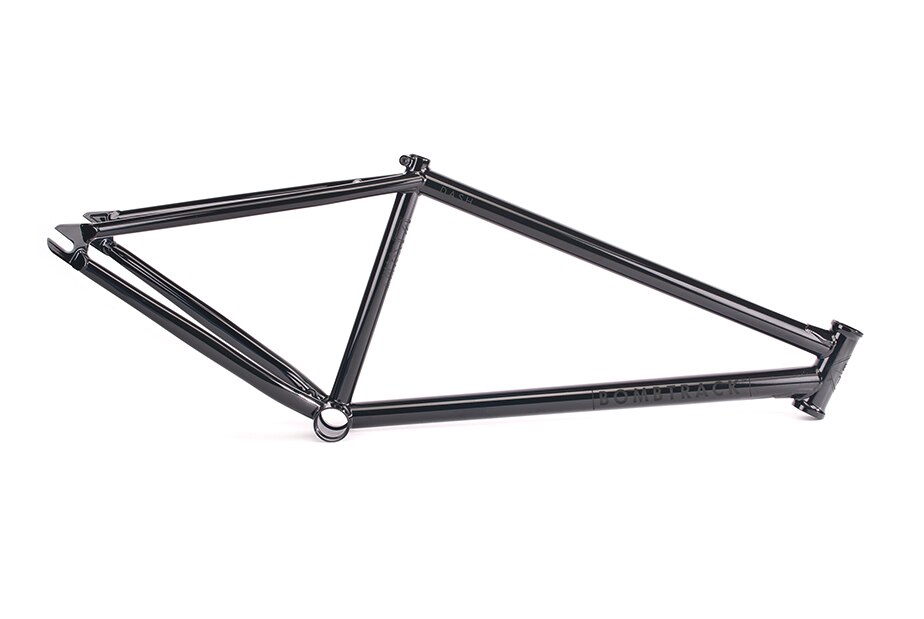

  • Glossy Black

Size(s):

  • One size

Wheel Size:

  • 26″

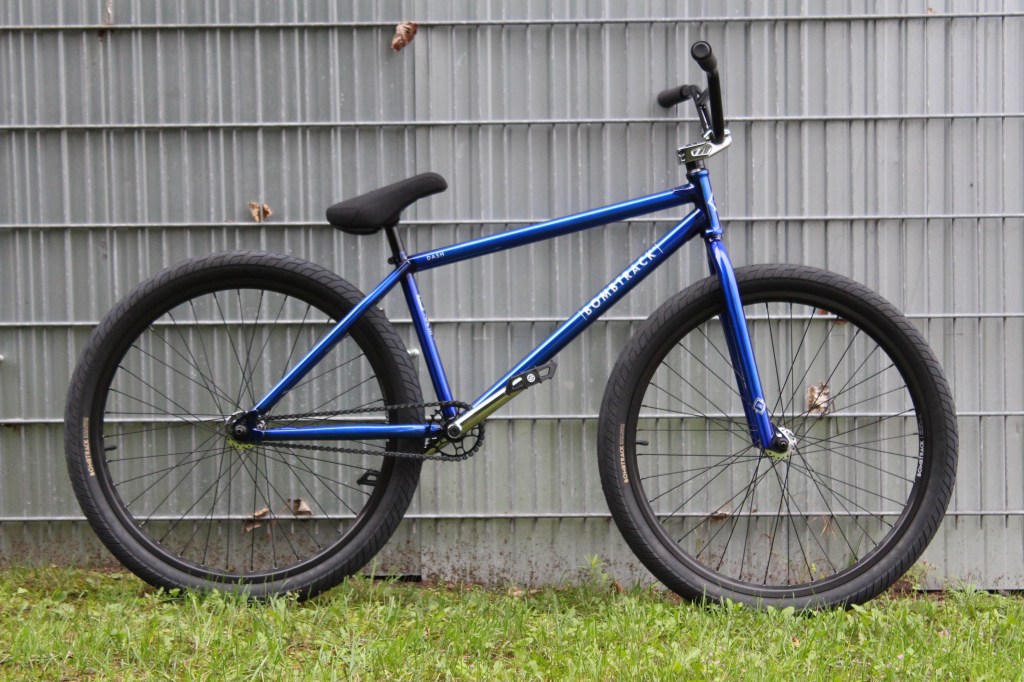

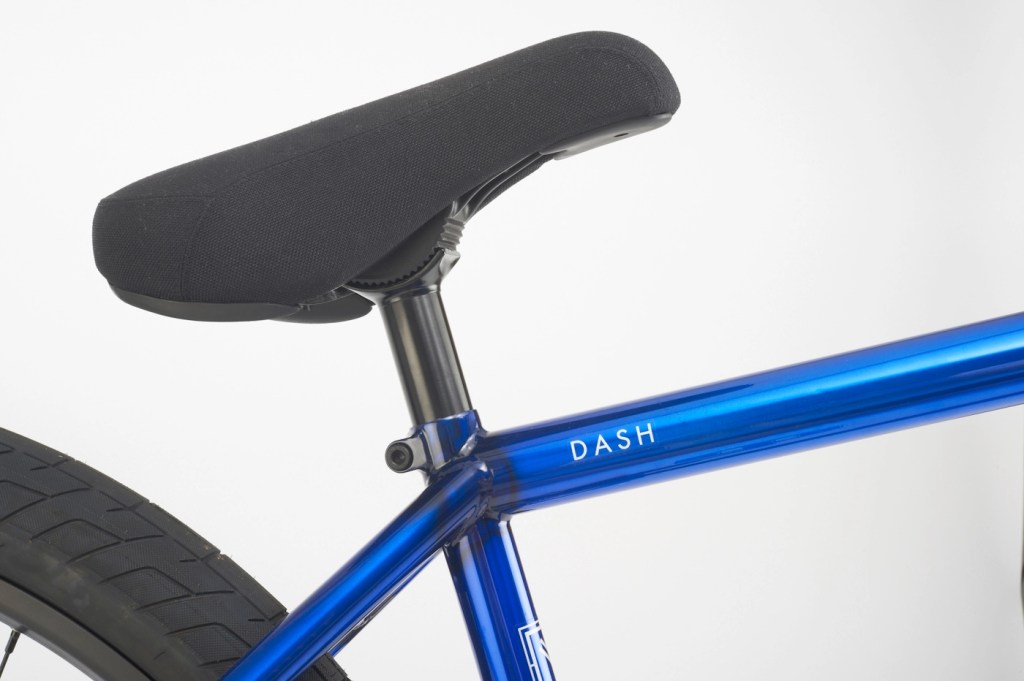

Gallery:

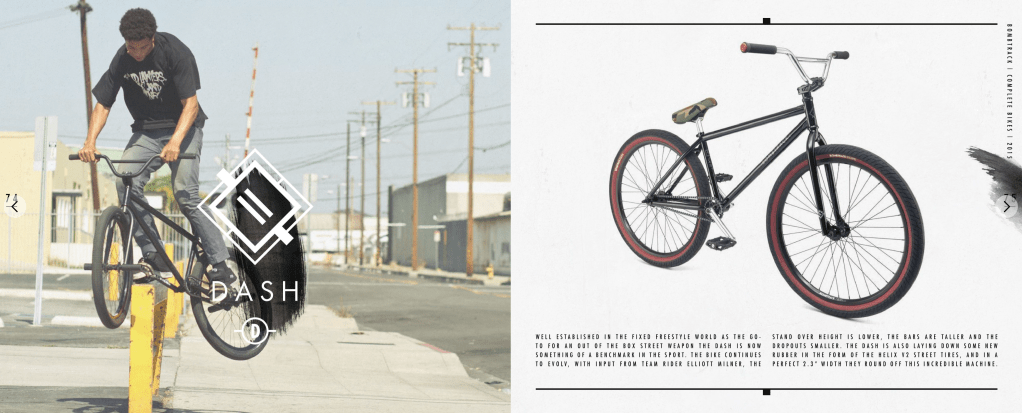

Promo Content:

Specifications:

  • TOPTUBE: (actual) 578mm (22.75″)
  • CHAINSTAY LENGTH: 393mm (15.4″)
  • HEADTUBE ANGLE: 75°
  • SEATTUBE ANGLE: 71°
  • BOTTOM BRACKET: +10mm
  • SEAT TUBE: (C-T) 350mm (13.8″)
  • COLOR 1: glossy black
  • COLOR 2: translucent blue
  • FRAME: full 4130 SANKO crmo, heat treated laser cut dropout, integ. chain tensioner
  • HEADSET: SALT “AM″ integ. headset, sealed bearing
  • BB: mid size, press fit, sealed bearing
  • BRAKE DRILLINGS: yes
  • SEATPOST DIAMETER: 25.4mm
  • DROPOUT SIZE: 6mm width, 14mm slots
  • TIRE CLEARENCE: 2.3″
  • WEIGHT: 2.8kg
