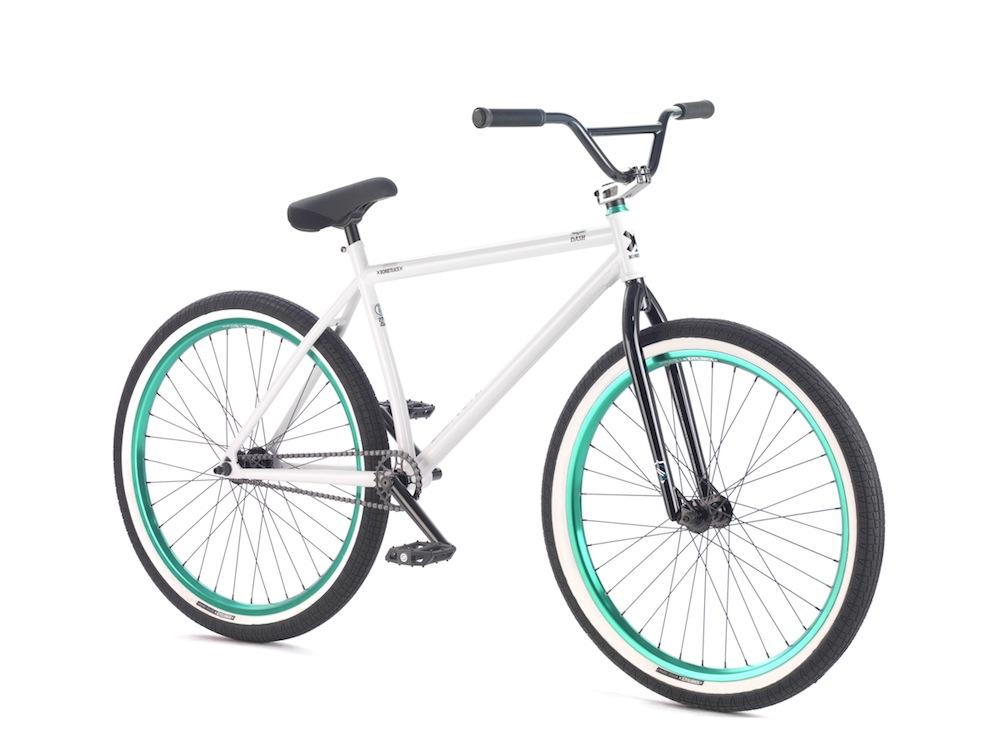

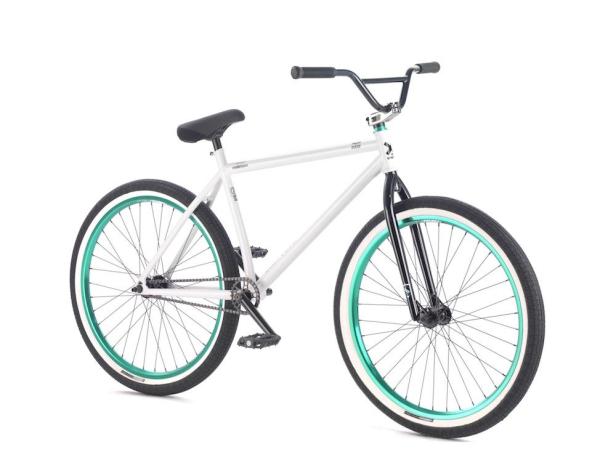

Bombtrack Dash 2014

Description:

The original Bombtrack has been refined and optimised into the new flagship DASH bike, which has been extensively tested and contest proven thanks to team rider Simon “Gomok” Andraca (Europe), Mean (Asia) and Joe McKeag (USA). Starting from a compact wheel base, the bike is set up with ideal toe clearance, a short rear end and playful geometry, forming the core characteristics of this iconic bike. Now honed over three successive years of design and development this bike has no rivals.

Details:

Release Date:

  • 2014

Manufacturer:

  • Bombtrack Bicycle Co.

MSRP: n/a

Color(s):

  • Glossy Black
  • Glossy White

Size(s):

  • One size

Wheel Size:

  • 26″

Gallery:

Specifications:

GEO:

FRAME

TOPTUBE: 23″ (actual)

CHAINSTAY LENGTH: 15.5″

HEADTUBE ANGLE: 74.5°

SEATTUBE ANGLE: 71°

BOTTOM BRACKET: mid-bb width: 74mm height: 13.4″ cnc machined and heat-treated

SEAT TUBE: 15.2″ (center BB – center TT) 387mm

HANDLEBAR

RISE: 5″

WIDTH: 28″

BACKSWEEP: 10°

UPSWEEP: 4°

SPEC:

COLOR 1: glossy black

COLOR 2: glossy white

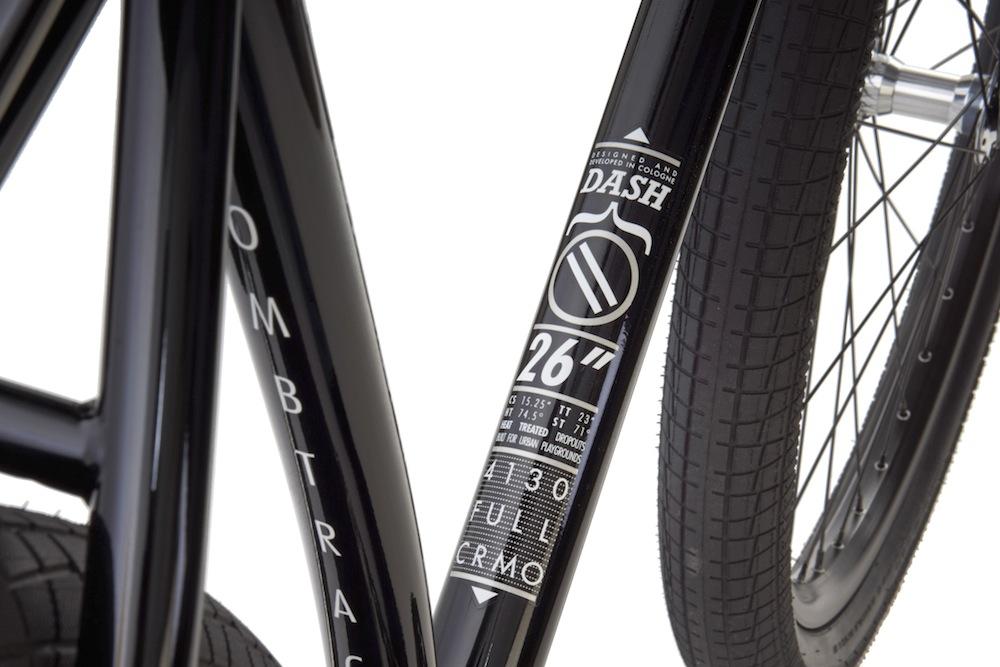

FRAME: 4130 full crmo frame, heat treated laser cut dropout, integ. chain tensioner

FORK: full 4130 crmo fork, updated thicker steerer and single butted legs

BARS: full 4130 crmo bar, butted tubing with full heat treatment

GRIPS: SALT “Team” flangless grips

STEM: SALT “AM” top loading stem, 50mm reach

HEADSET: SALT “AM″ int. headset, sealed bearing

CRANKS: BT BIKES tubular 3pc crank crmo 175mm, 48 spline

BB: mid size, press fit, sealed bearing

PEDALS: SALT “AM” nylon/fibreglass pedals

CHAIN: SALTPLUS “Warlock” halflink chain

SPROCKET: BT BIKES “Chromatic” cnc, crmo 26t sprocket

DRIVER: 10T 1-piece fixed grear, cog

FRONT HUB: BT BIKES fully sealed front hub, 3/8″s axle

REAR HUB: BT BIKES fixed fully sealed rear hub,14mm axle, 36h

FRONT RIM: BT BIKES “FR32″ double wall, pin joint rim, with eyelets, 36h

REAR RIM: BT BIKES “FR32″ double wall, pin joint rim, with eyelets, 36h

SEAT: BT BIKES fat padded pivotal seat

SEAT POST: BT BIKES alloy pivotal seatpost

SEAT CLAMP: BT BIKES alloy seatclamp

TIRES: BT BIKES “Helix” tires 26″ x 2.20″ front and rear

PEGS: steel pegs (1 pair)

WEIGHT: 12.8kg (28.22lbs)
