Bombtrack Dash 2014 Frame

Description:

The original Bombtrack has been refined and optimised into the DASH frame, which has been extensively tested and contest proven thanks to team rider Simon “Gomok” Andraca (Europe), Mean (Asia) and Joe McKeag (USA). Starting from a compact wheel base, the bike is set up with ideal toe clearance, a short rear end and playful geometry, forming the core characteristics of this iconic frame. Now honed over three successive years of design and development this frame built to shred.

Details:

Release Date:

• 2014

Manufacturer:

• Bombtrack Bicycle Co.

MSRP: n/a

Color(s):

• Phosphate Raw
• Gloss Black
• Transparent Blue

Size(s):

• One size

Wheel Size:

• 26″

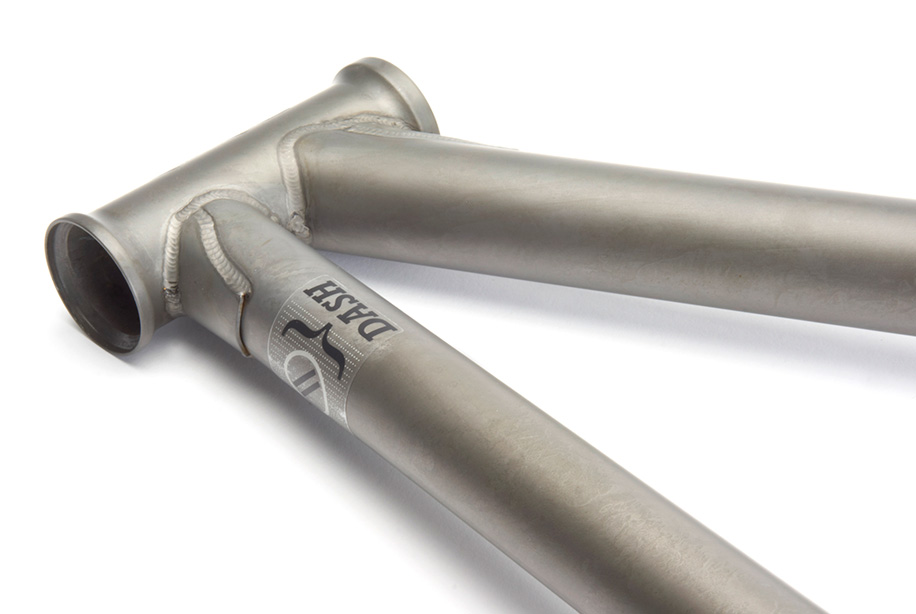

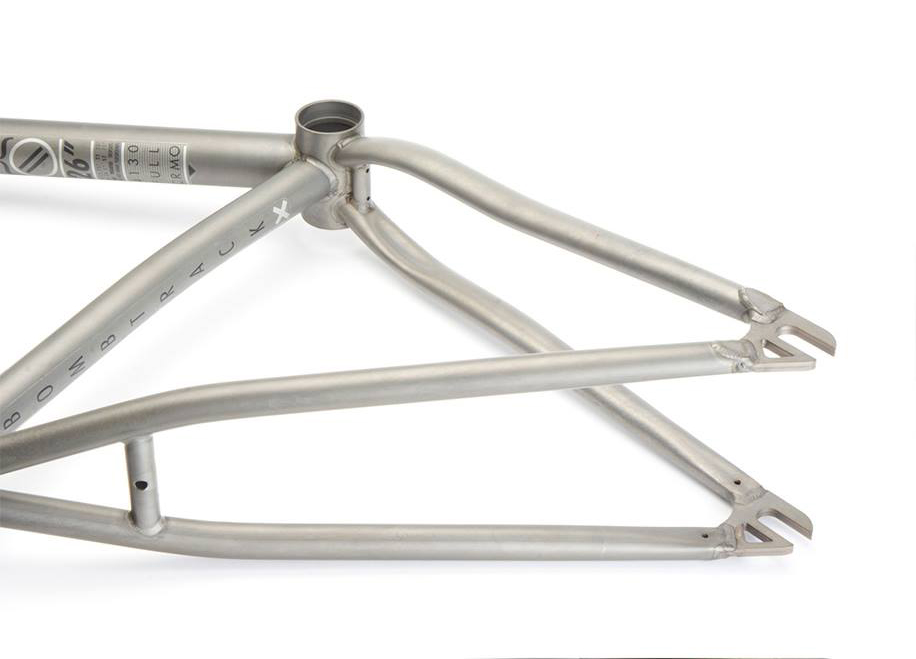

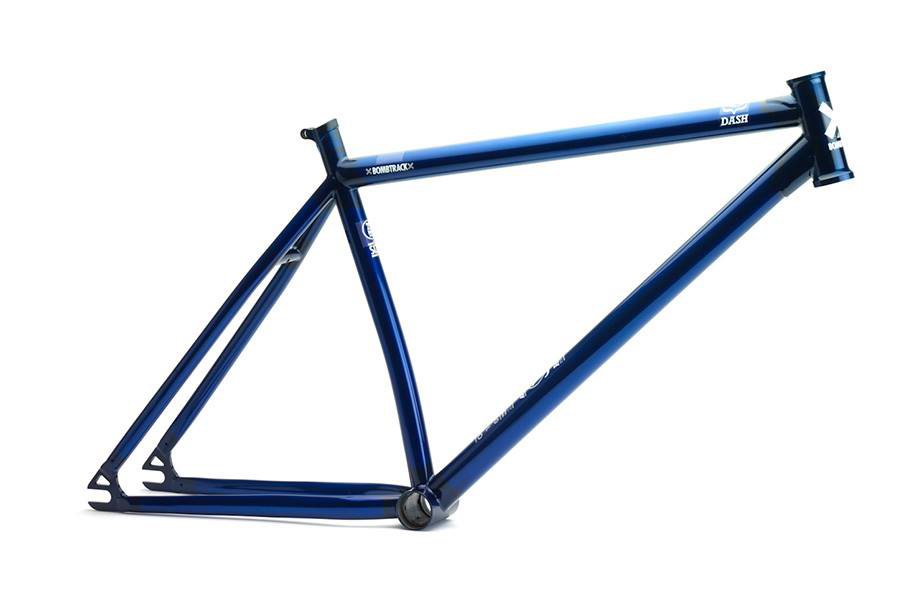

Gallery:

Specifications:

• MATERIAL: 4130 full crmo
• TUBING: butted, seamless 4130 crmo tubing
• TOPTUBE: 23″ (actual)
• CHAINSTAY LENGTH: 15.5″ (394mm)
• HEADTUBE ANGLE: 74.5°
• SEATTUBE ANGLE: 71°
• BOTTOM BRACKET: mid-bb width: 74mm height: 13.4″ cnc machined and heat-treated
• STANDOVER HEIGHT: 15.65″ (387mm) (center BB – center TT)
• HEADTUBE: cnc machined and heat-treated, int h/set
• DROPOUTS: laser cut and heat treated
• SPECIALS: full heat treated rear triangle, integ chain tensioner
• WEIGHT: 3.1kg (6.83lbs)
• COLOR 1: phosphate raw
• COLOR 2: gloss black
• COLOR 3: transparent blue
