Bombtrack Dash 2013

Description:

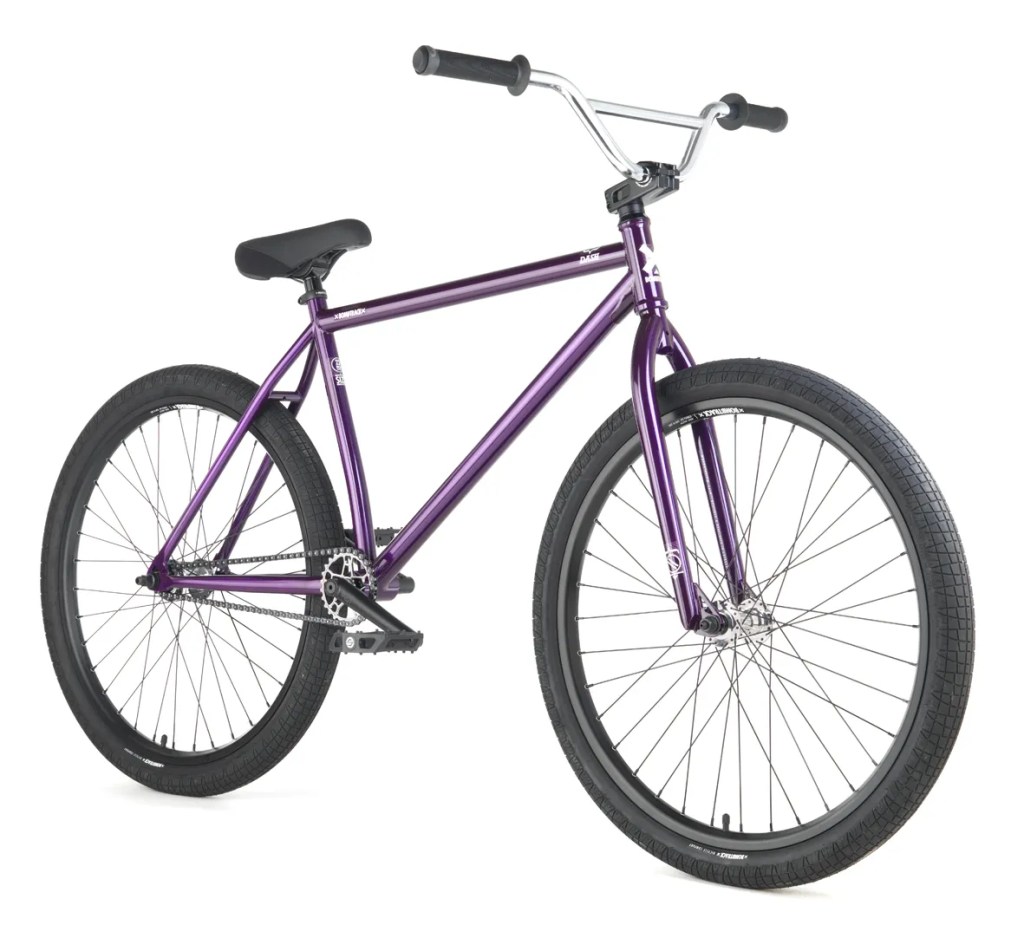

The original Bombtrack has been refined and optimised into the new flagship “Dash” bike, which has been extensively tested and contest proven thanks to team rider Simon “Gomok” Andraca (Europe), Mean (Asia) and Gabe Garcia (USA). The ideal toe clearance, by keeping the wheelbase compact, the short rear end and strong tuning are the core characteristics of the “Dash”, simple but possibly yet unachieved by any of its peers. The “Dash” is available as complete as well as frame only.

Details:

Release Date:

2013

Manufacturer:

Bombtrack Bicycle Co.

MSRP: n/a

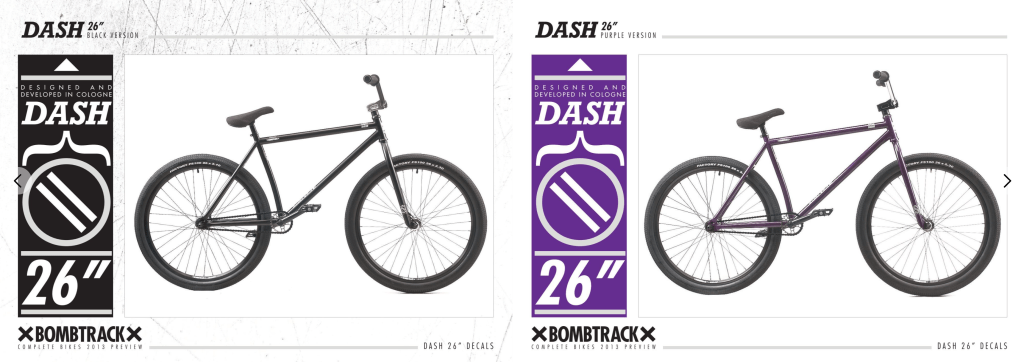

Color(s):

Matte Black

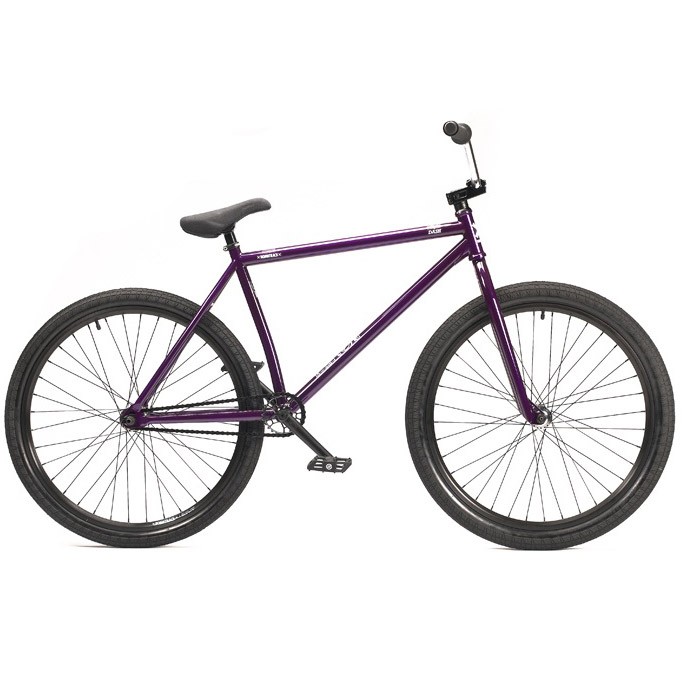

Purple

Size(s):

One size

Wheel Size:

26″

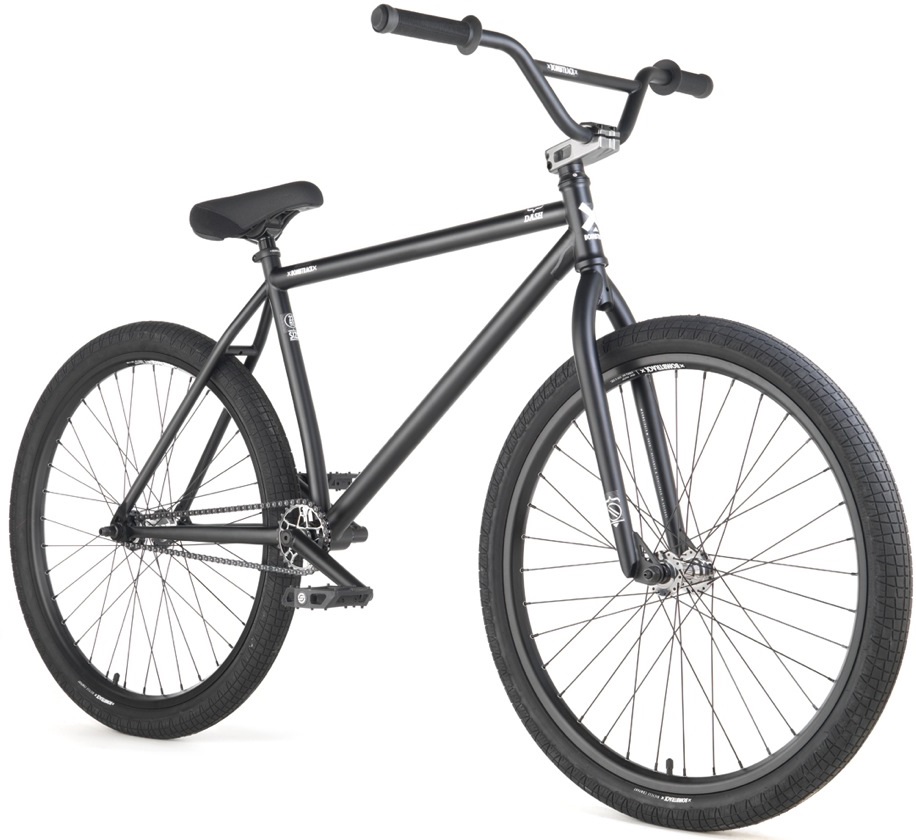

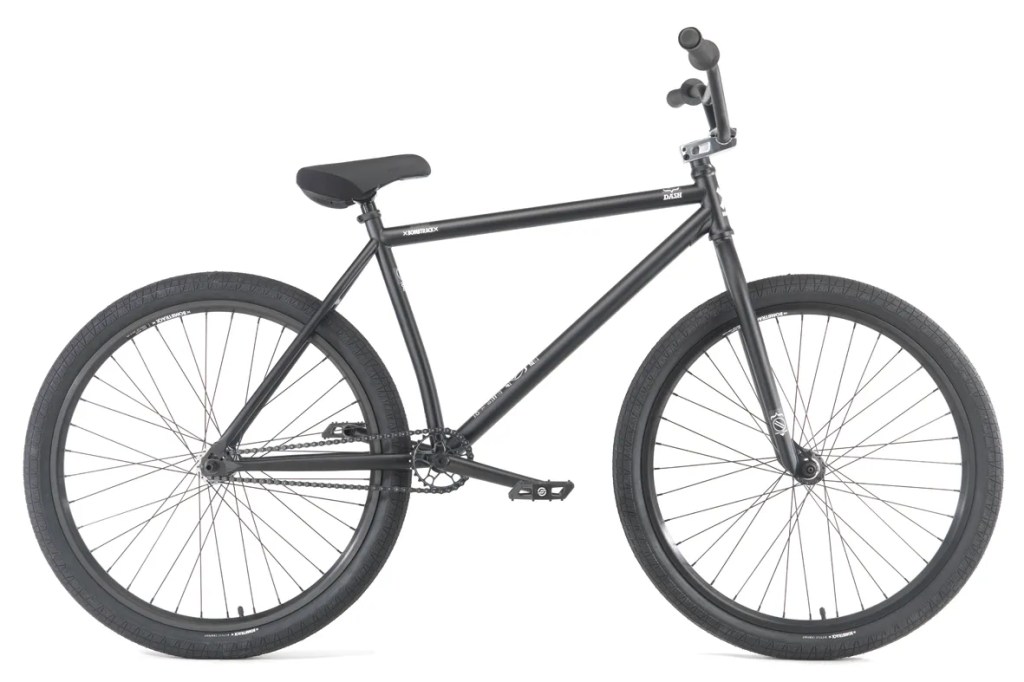

Gallery:

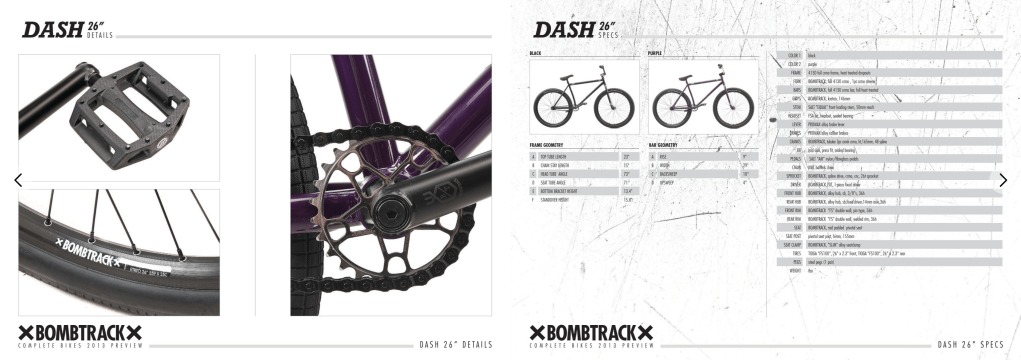

Specifications:

Spec:

COLOR 1: matt black

COLOR 2: purple

FRAME: 4130 full crmo frame, heat treated dropout, laser cut

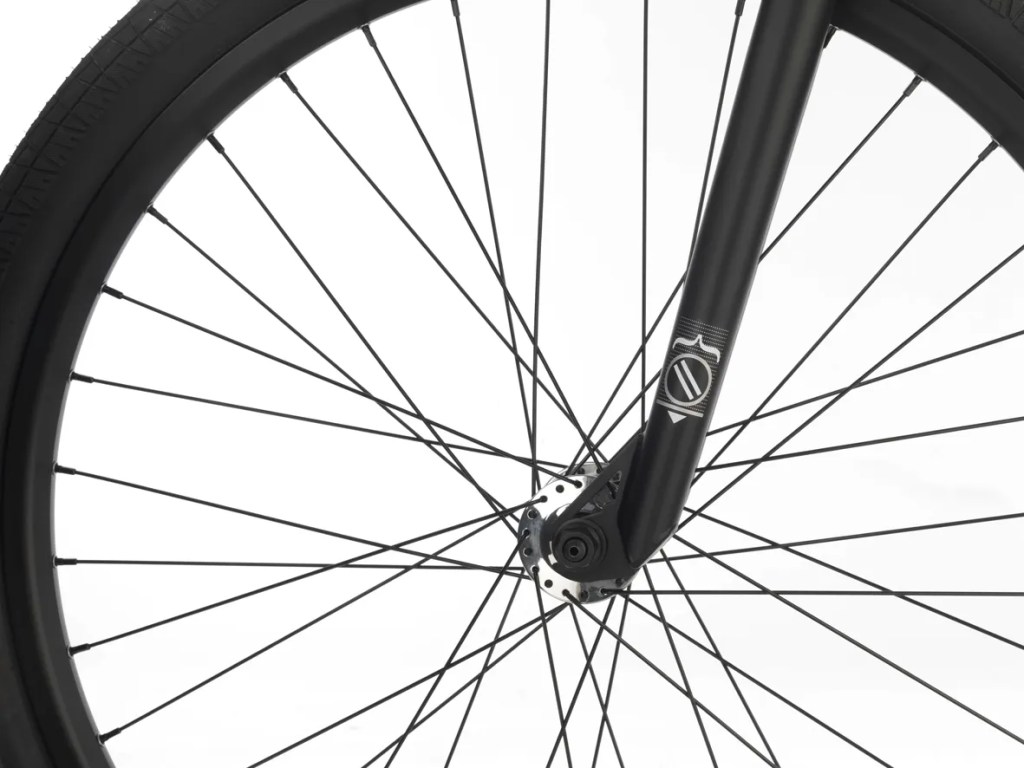

FORK: full 4130 crmo fork

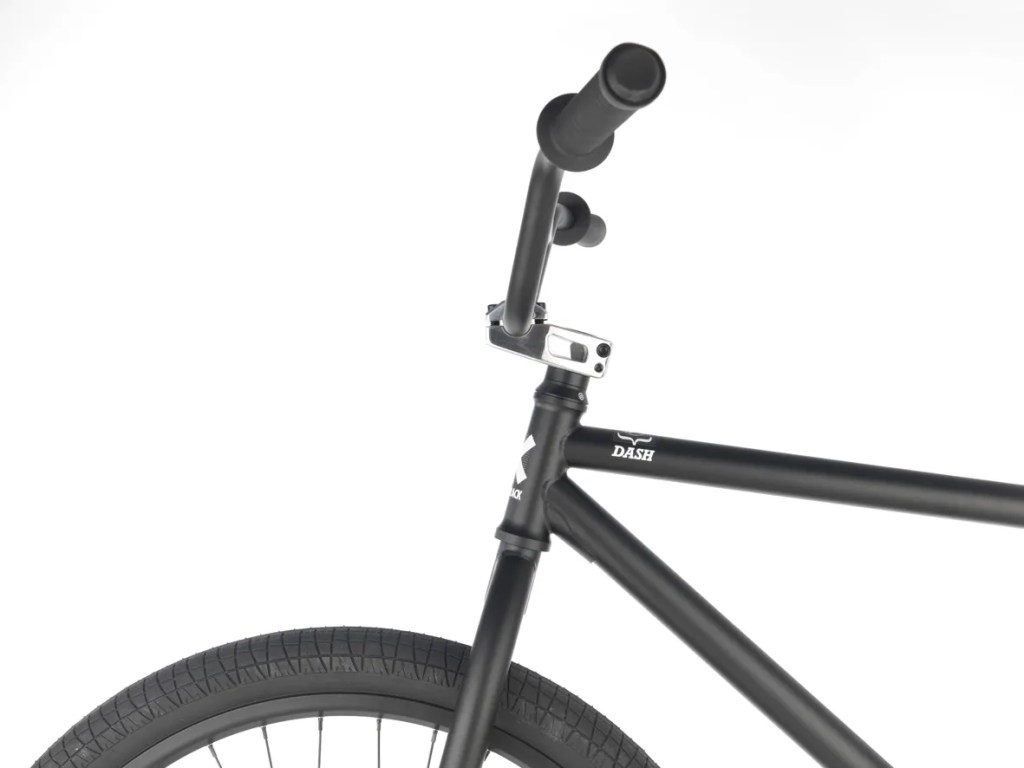

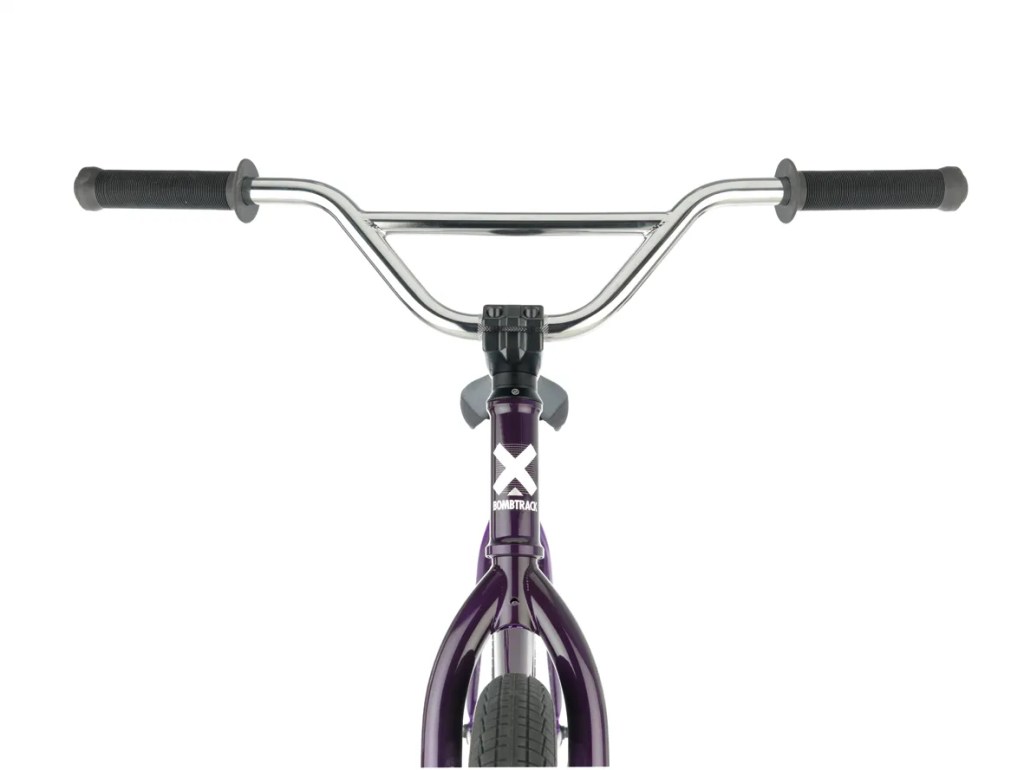

BARS: full 4130 crmo bar, full heat treated

GRIPS: mushroom style grips, 148mm

STEM: SALT “PRO” front loading stem, 51mm reach

HEADSET: SALT “AM-V2″ int. headset, sealed bearing

CRANKS: BT BIKES “Major” tubular 3pc crank crmo 175mm, 48 spline

BB: mid size, press fit, sealed bearing

PEDALS: SALT “AM” nylon/fibreglass pedals

CHAIN: SALTPLUS “Warlock” halflink chain

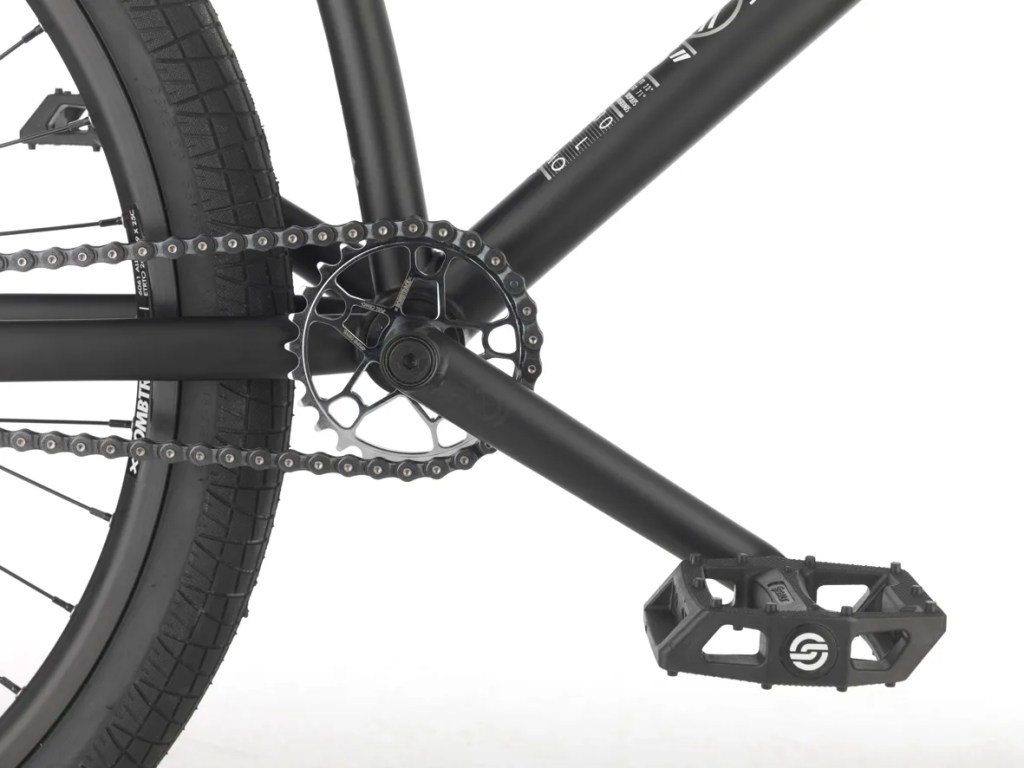

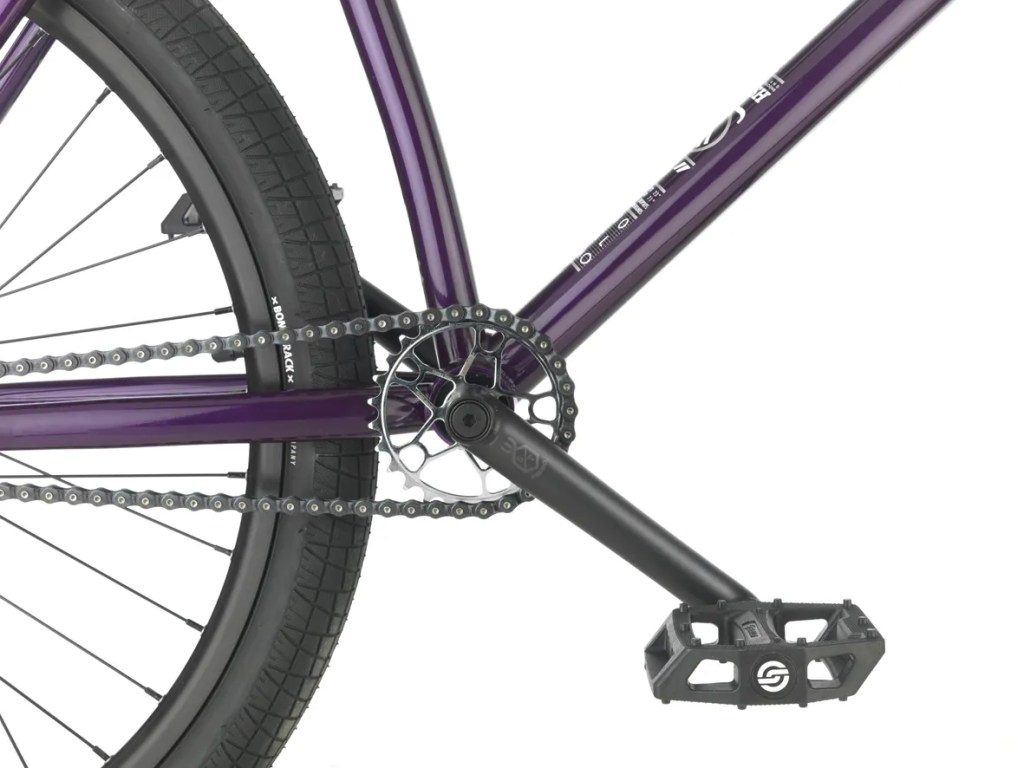

SPROCKET: BT BIKES “Chromatic” cnc, crmo 26t sprocket

DRIVER: 10T 1-piece fixed grear, cog

FRONT HUB: BT BIKES fully sealed front hub, 3/8″s axle

REAR HUB: 36h BT BIKES fixed fully sealed rear hub,14mm axle, 36h

FRONT RIM: BT BIKES “FR32″ double wall, pin joint rim, 36h

REAR RIM: BT BIKES “FR32″ double wall, pin joint rim, 36h

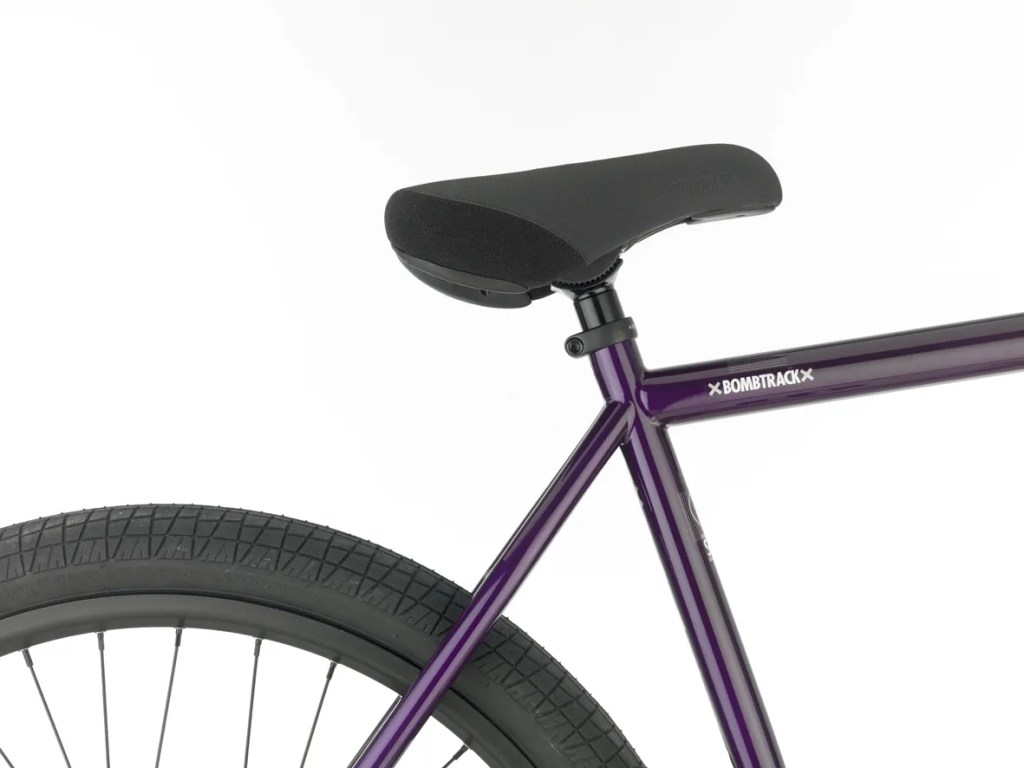

SEAT: BT BIKES pivotal seat

SEAT POST: BT BIKES alloy pivotal seatpost

SEAT CLAMP: BT BIKES alloy seatclamp

TIRES: BT BIKES “Helix” tires 26″ x 2.25″ front and 2.0″ rear

PEGS: steel pegs (1 pair)

WEIGHT: 12.5kg (27.55lbs)

Geometry:

FRAME

TOPTUBE: 23″

CHAINSTAY LENGTH: 15.25″

HEADTUBE ANGLE: 74.5°

SEATTUBE ANGLE: 71°

BOTTOM BRACKET: mid-bb width: 74mm height: 13.5″ cnc machined and heat-treated

STANDOVER HEIGHT: 15.65″

HANDLEBAR

RISE: 5″

WIDTH: 28″

BACKSWEEP: 10°

UPSWEEP: 4°
