All-City New Sheriff Hub

Description:

The New Sheriff was designed ground up in house by All-City and was built to handle the unique stresses and demands of the modern fixed gear rider.

It’s got BMX inspired internals with a flange design influenced by the famous Campagnolo “sheriff star” hubs of yore, 15mm hollow alloy axles offer an amazing strength to weight ratio, high quality Japanese manufactured sealed bearings that will live long and roll smooth, and unique custom mounting hardware that allows for installation with either a 15mm box end or 6mm hex.
*Because we spec stainless bolts for corrosion resistance it’s important to pay attention to the torque specs on the bolts (33nm)

Details:

Release Date:

  • June 2010

Manufacturer:

MSRP: n/a

Color(s):

  • Black
  • Silver
  • Red
  • Gold

Hole Count(s):

  • 32h
  • 36h

Axle Size(s):

  • 10mm

Attachment Type(s):

  • Threaded

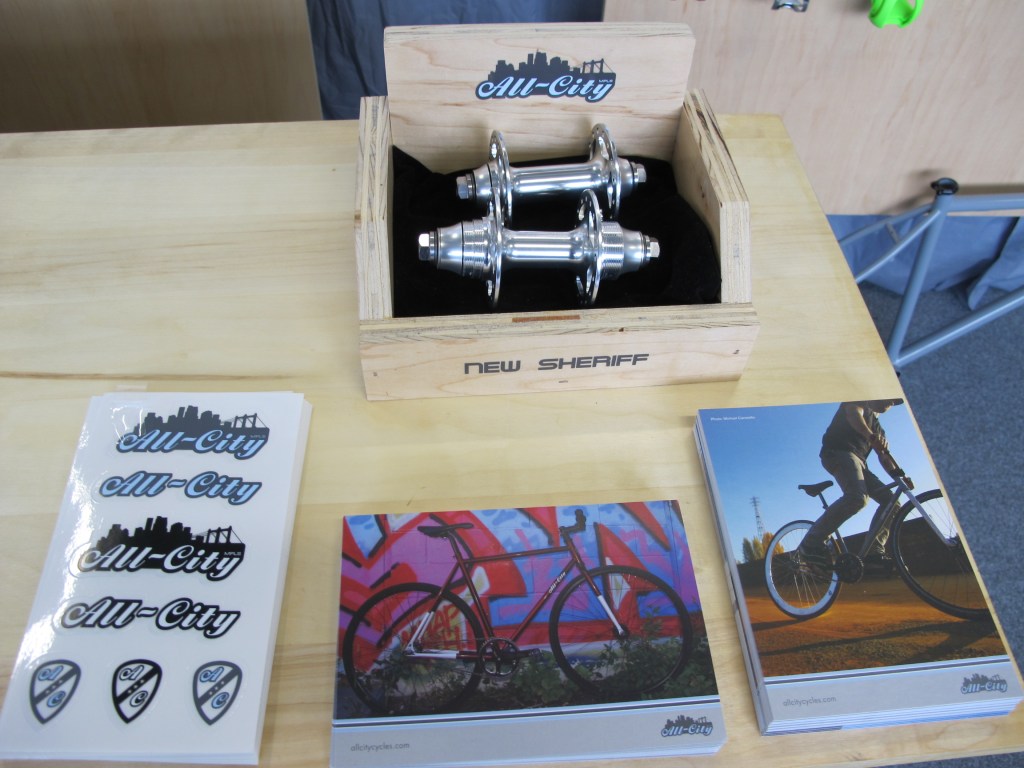

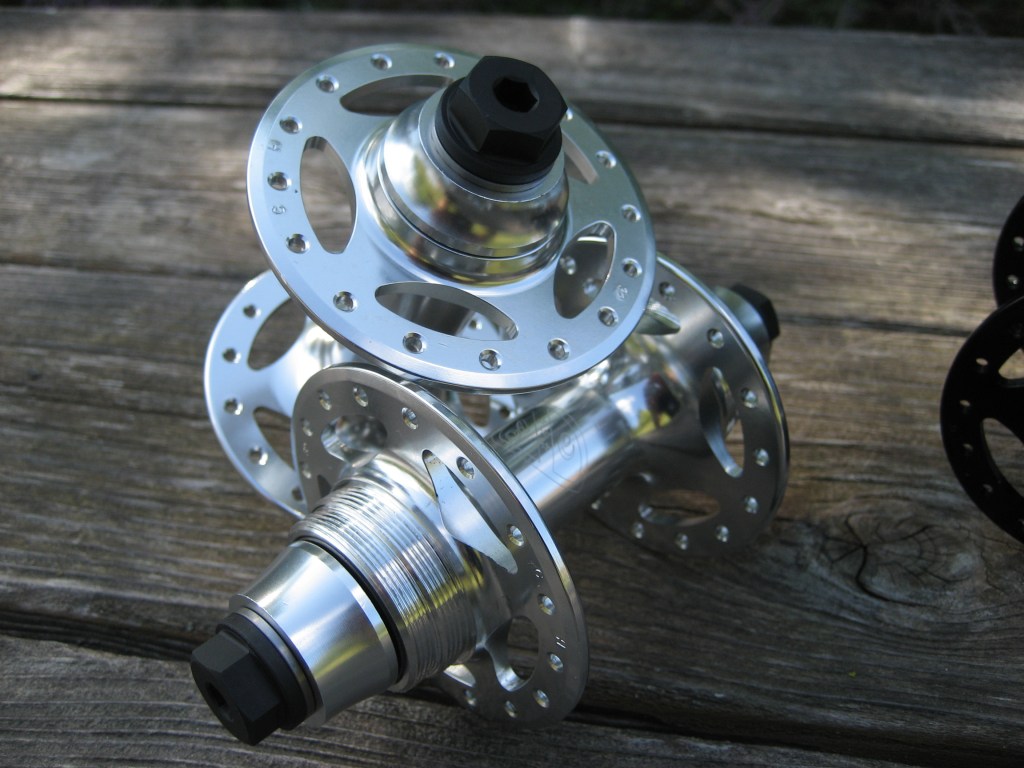

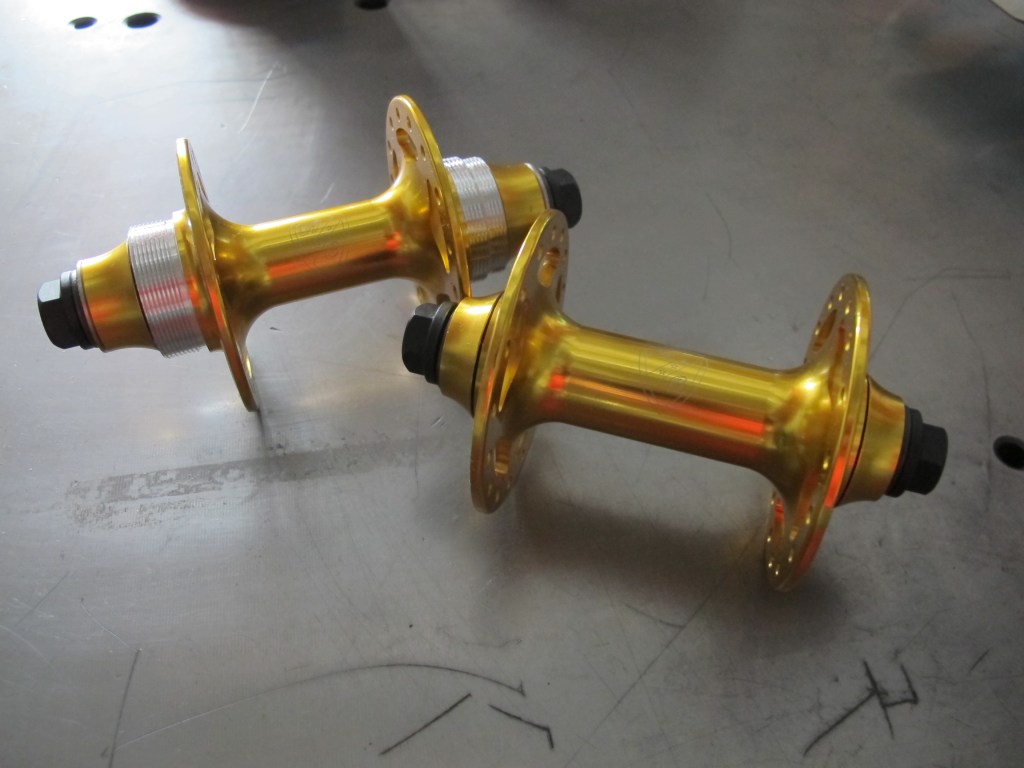

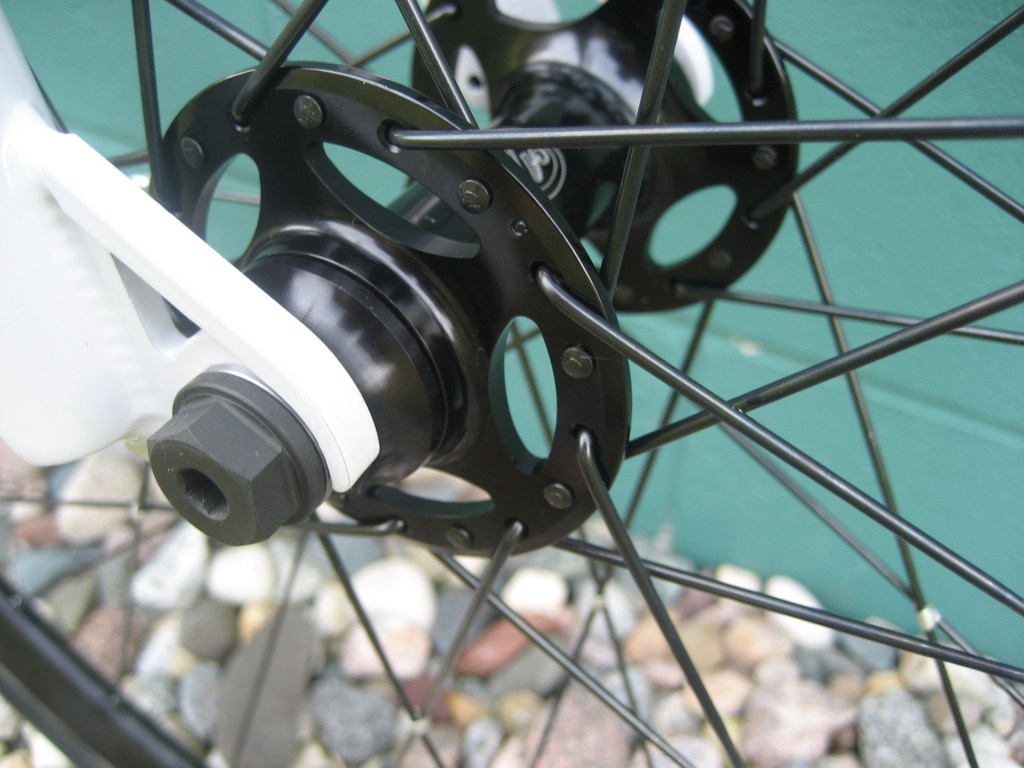

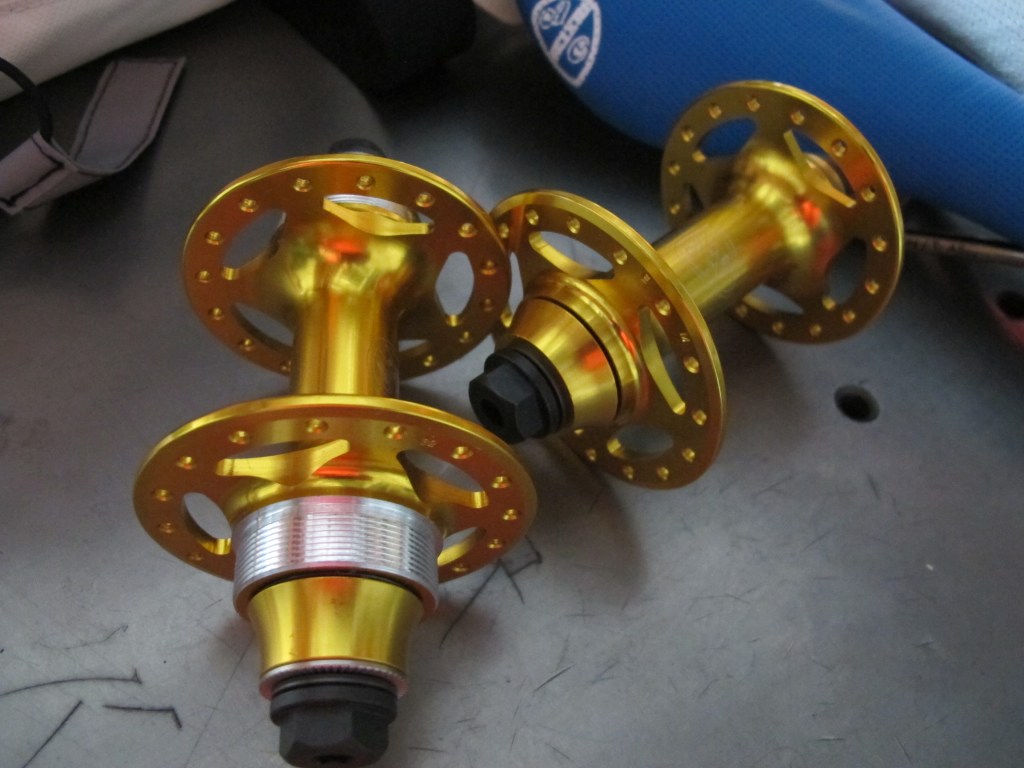

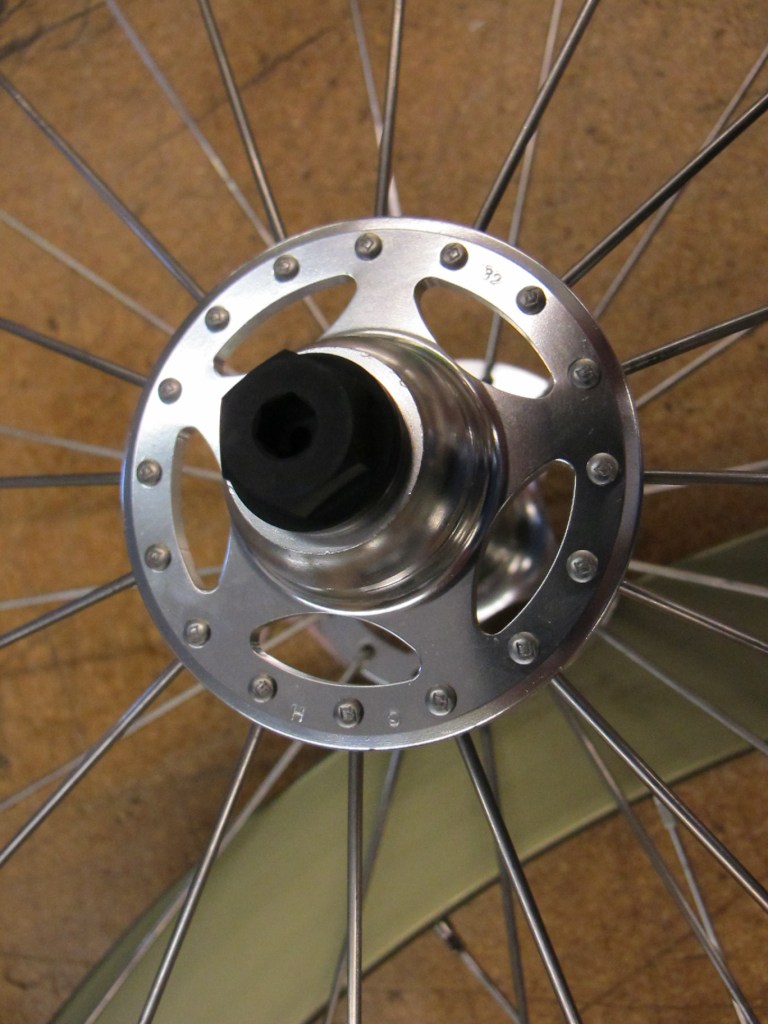

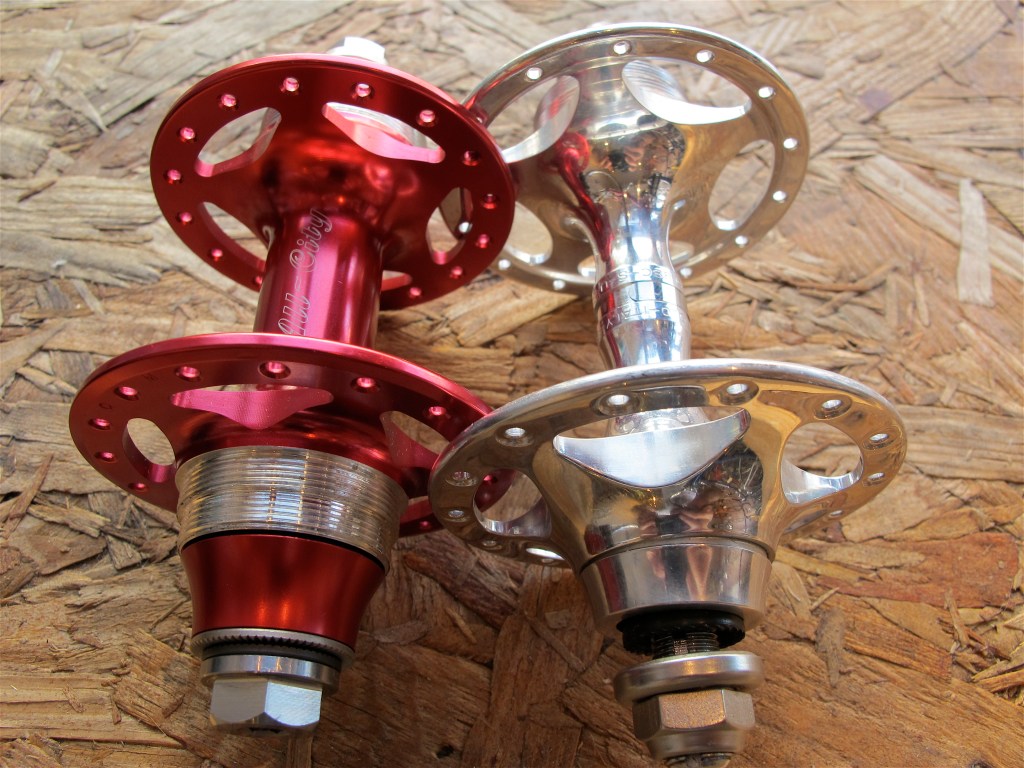

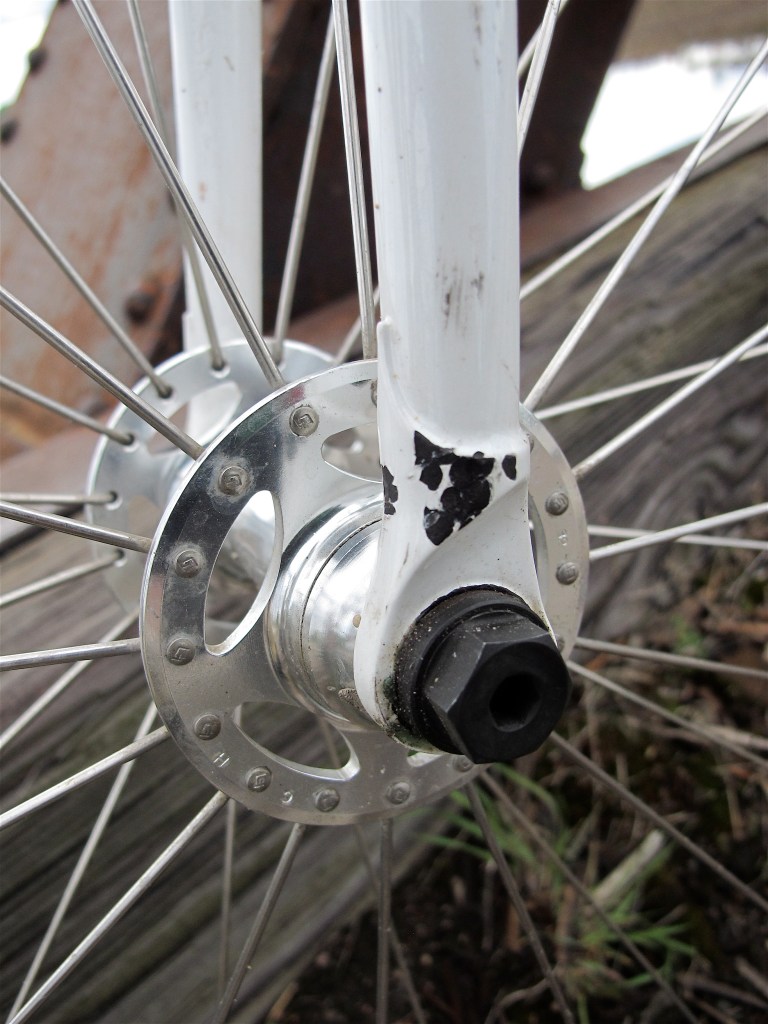

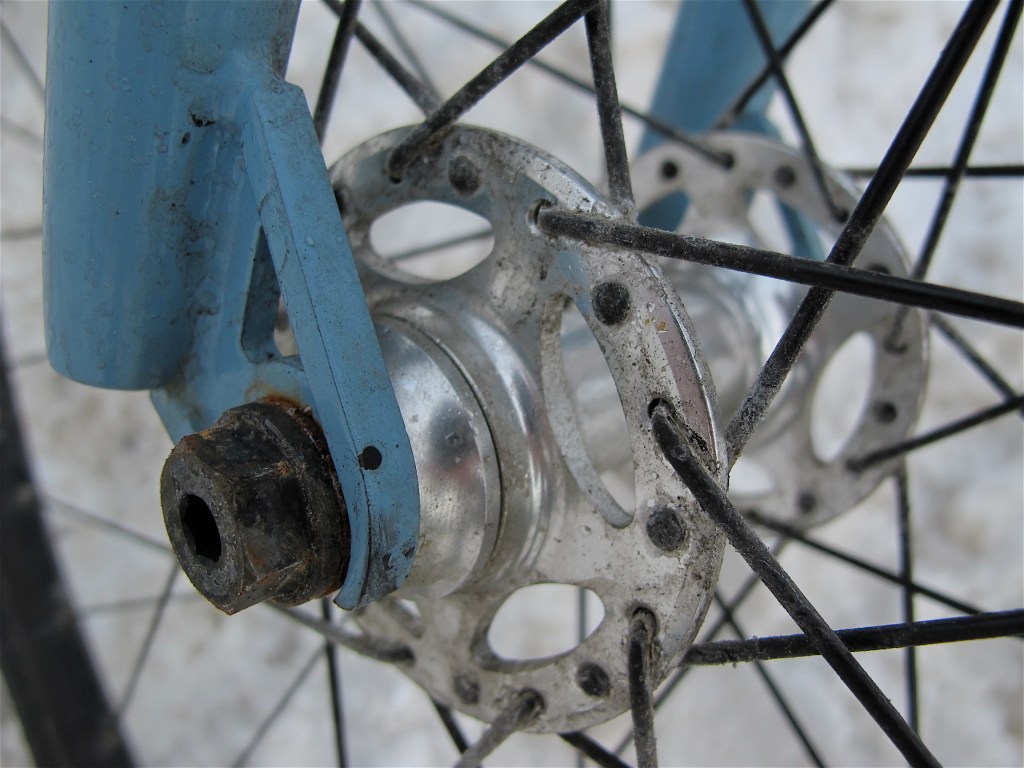

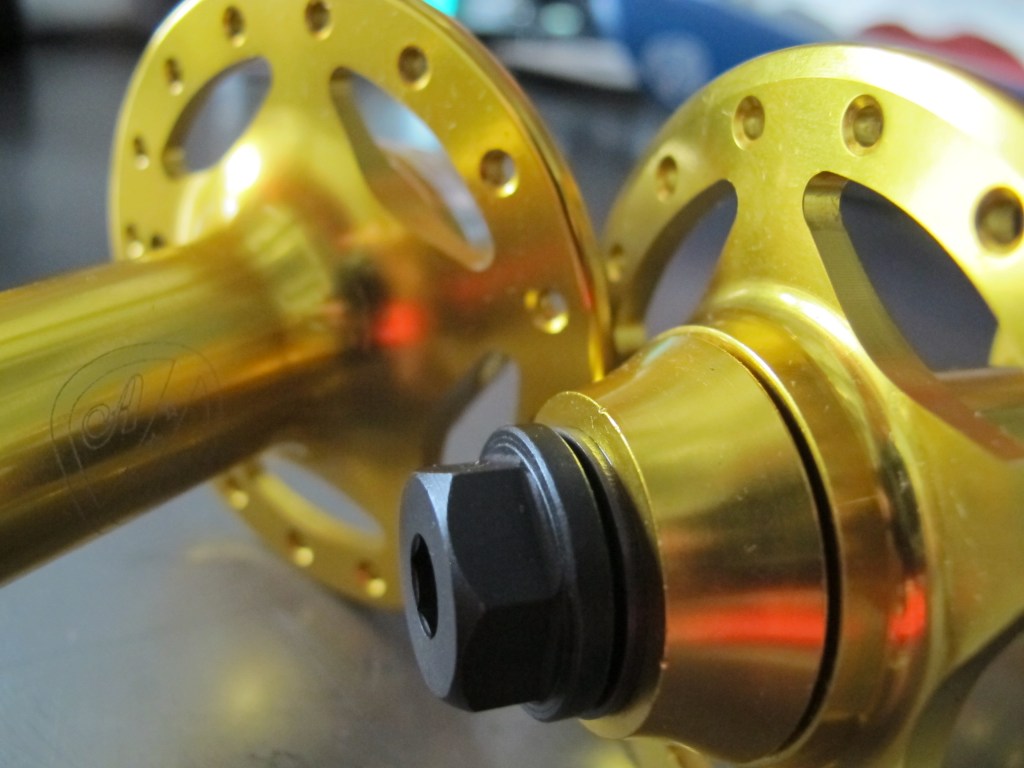

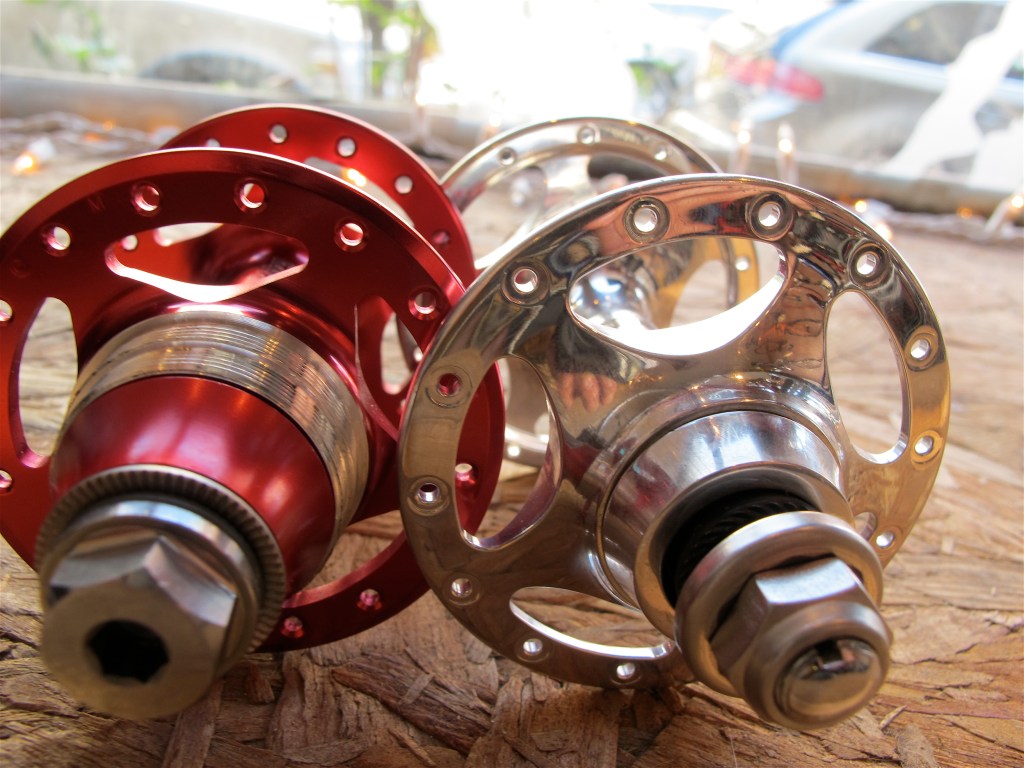

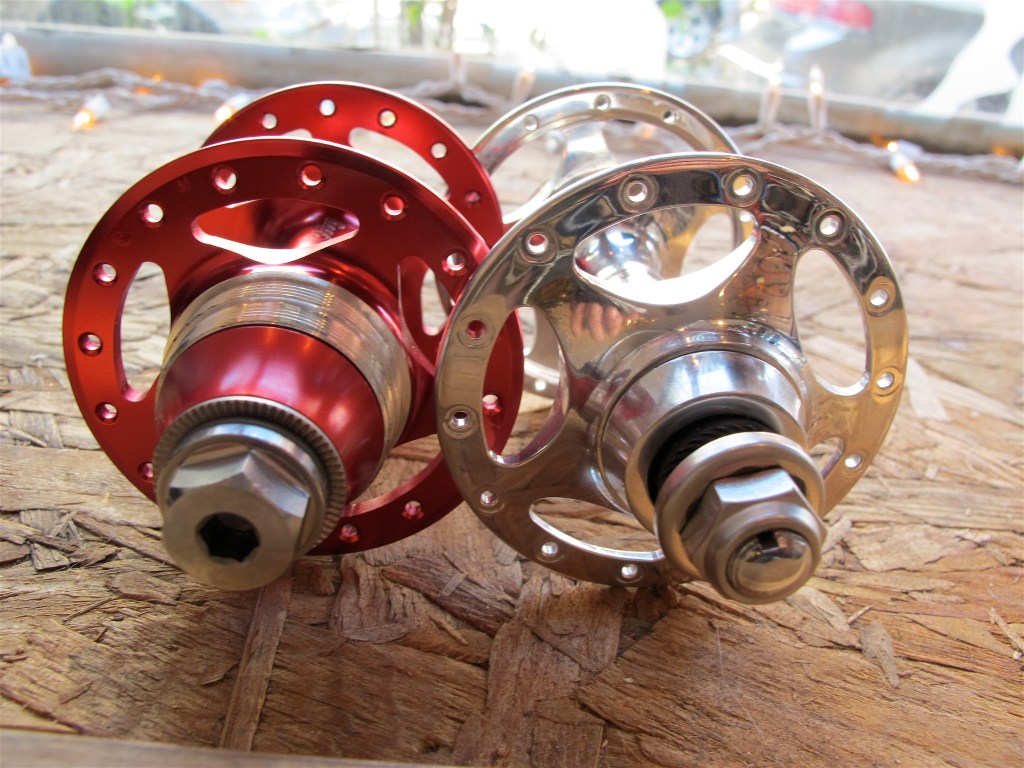

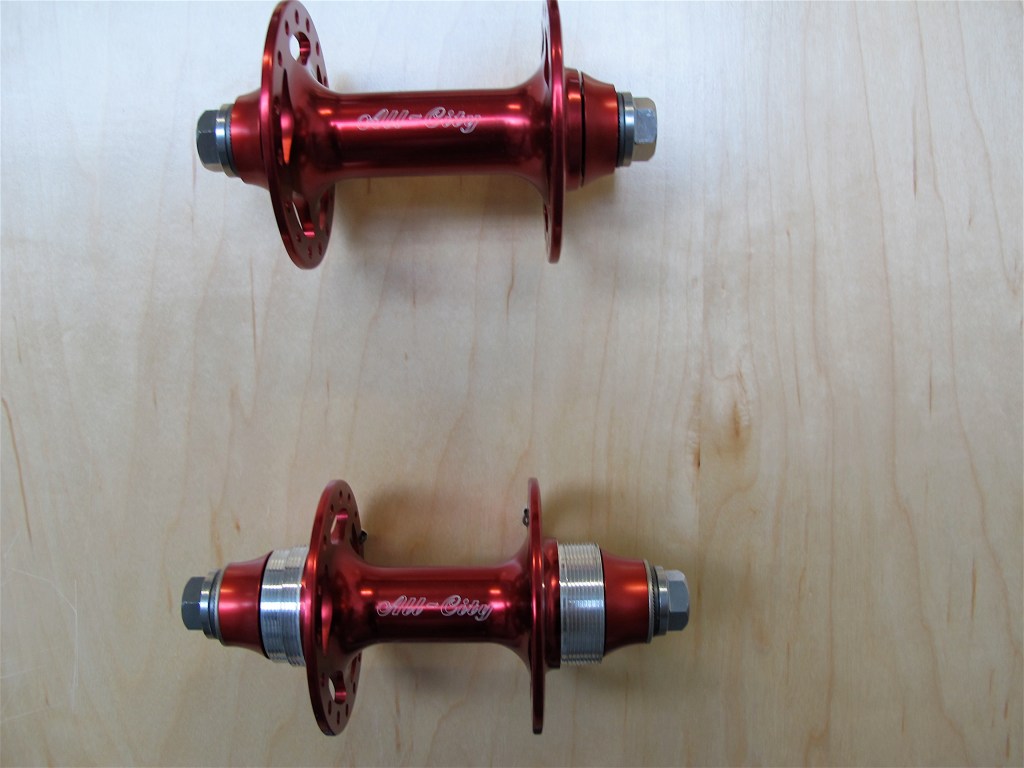

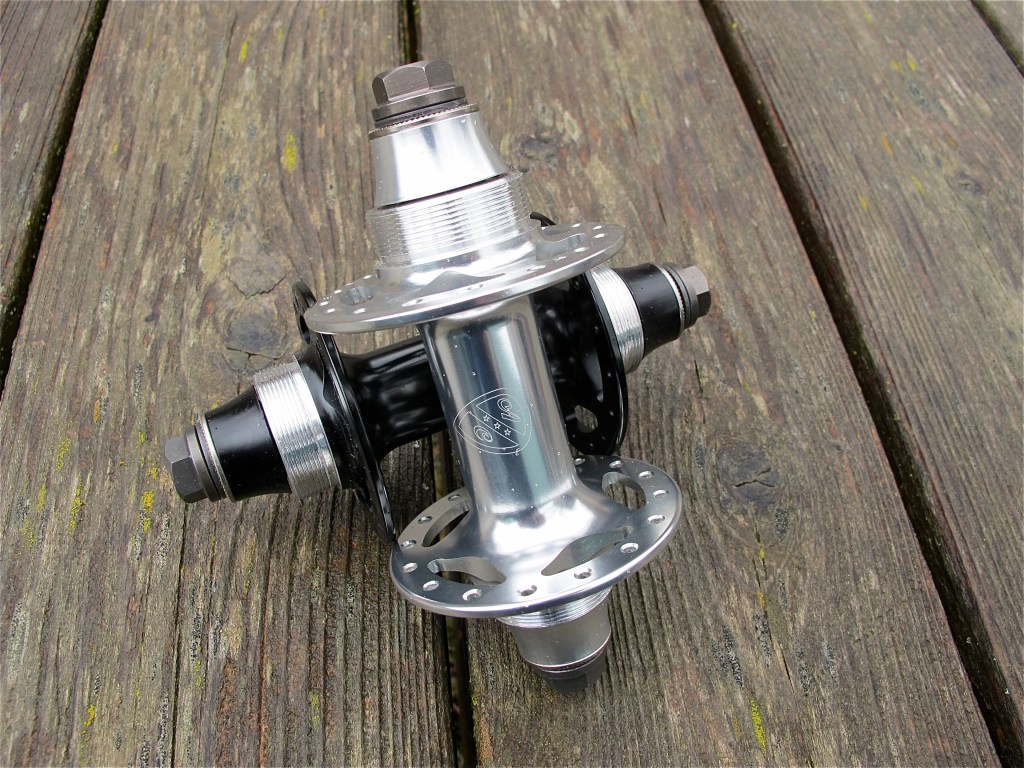

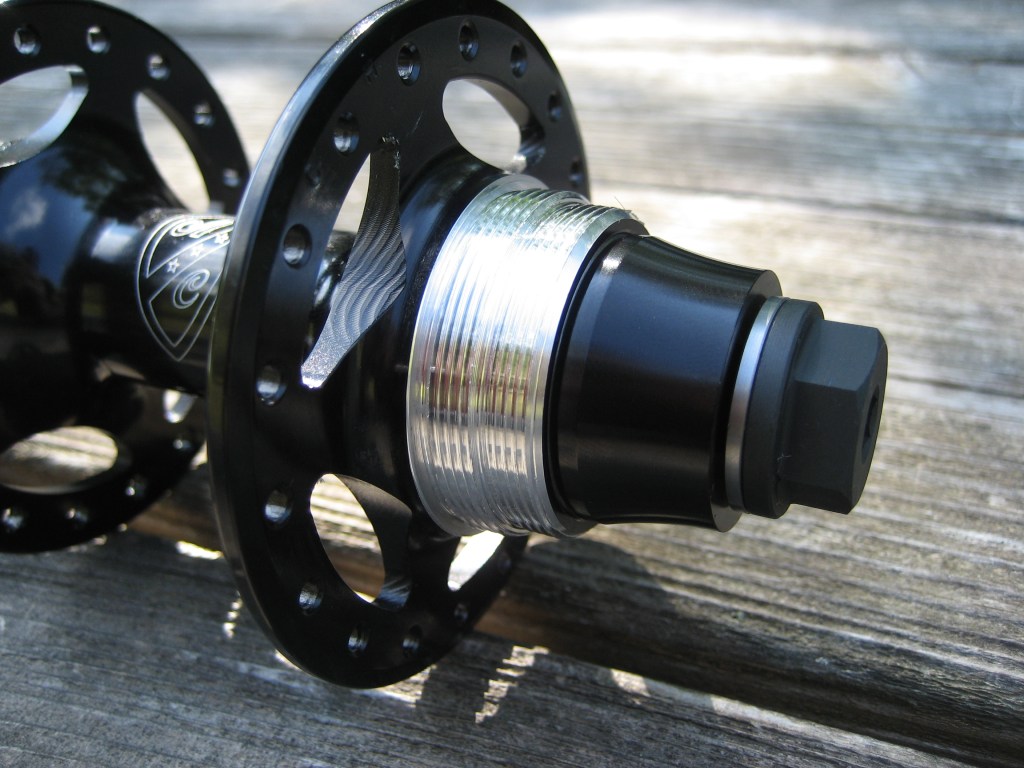

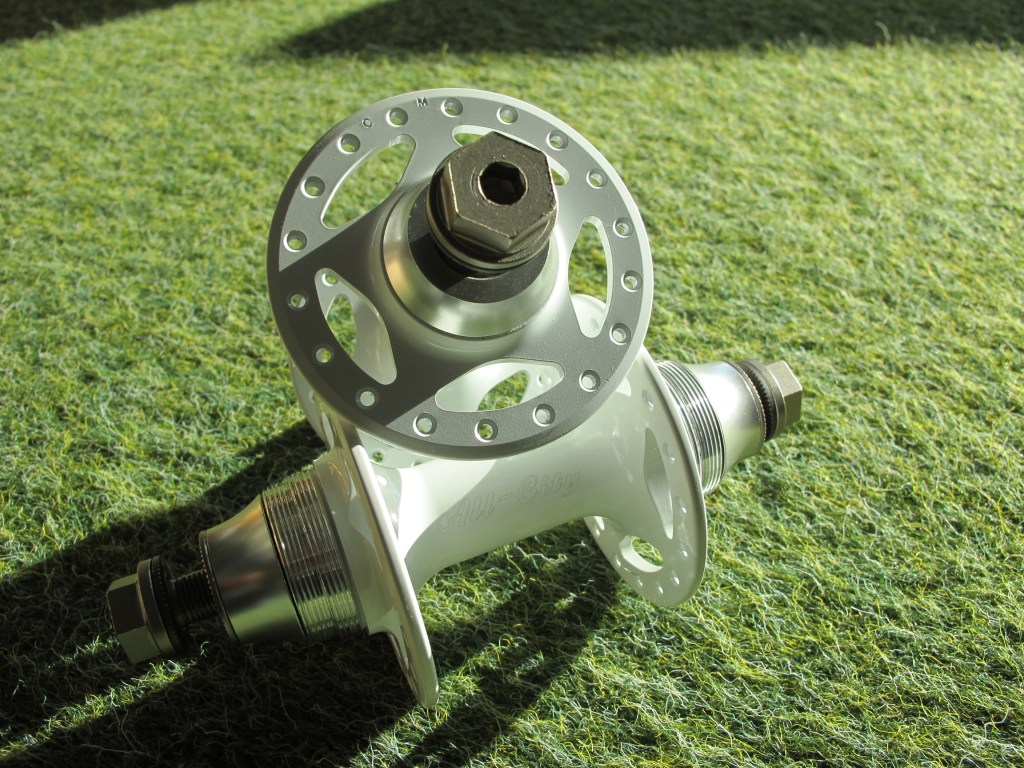

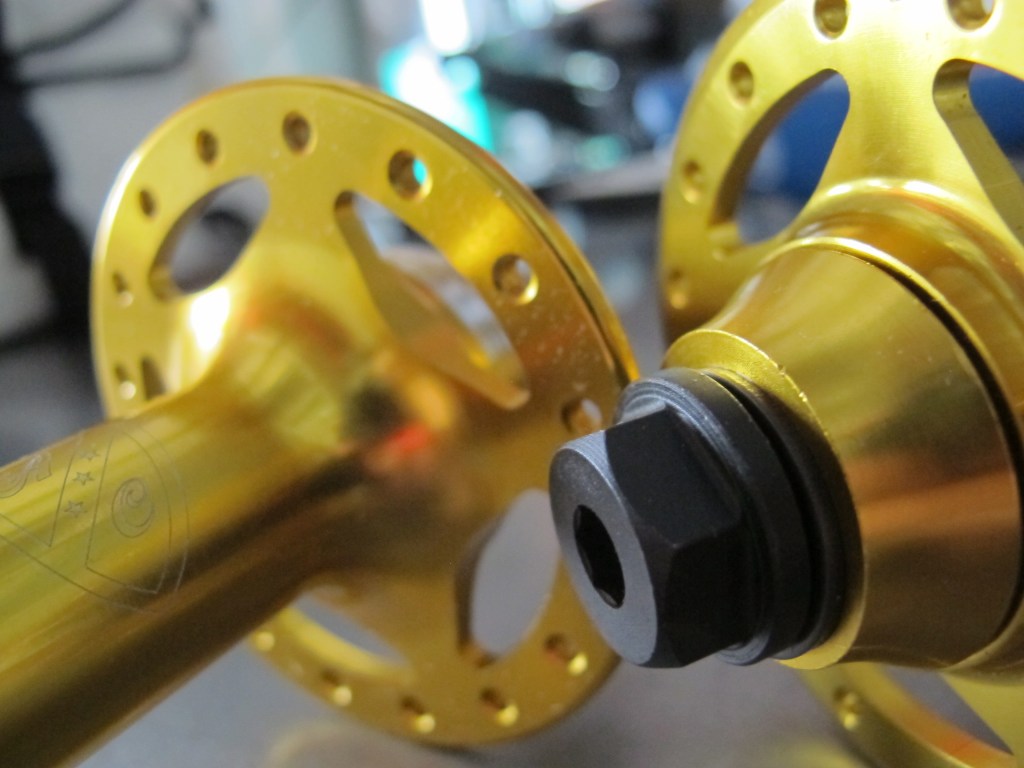

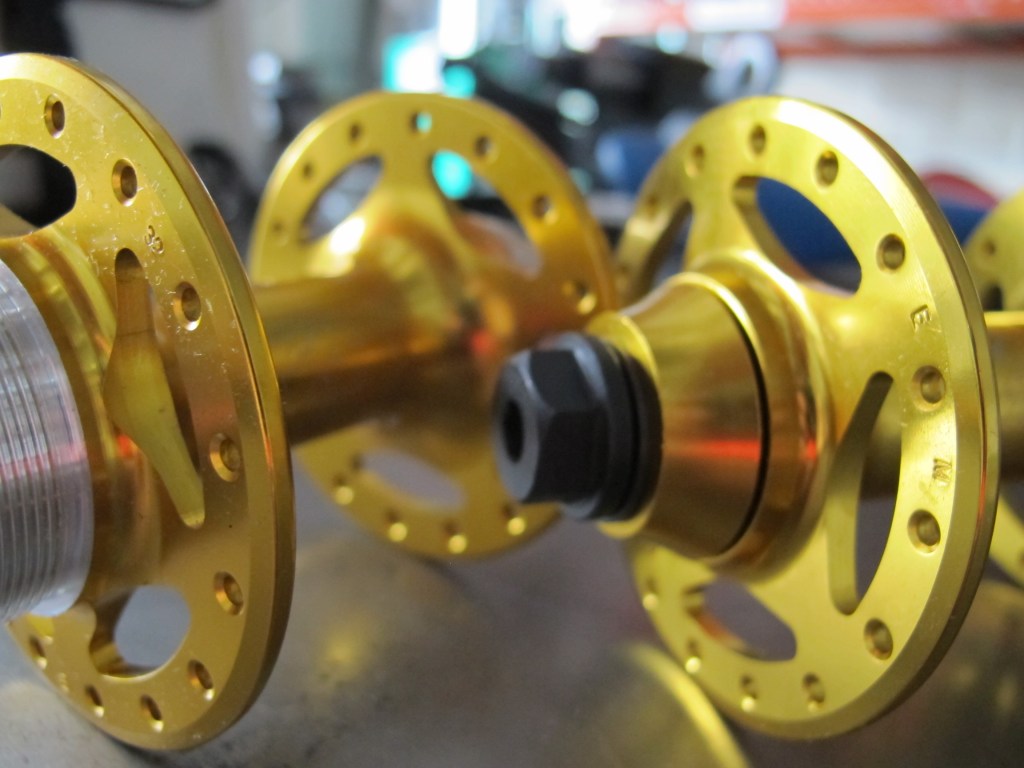

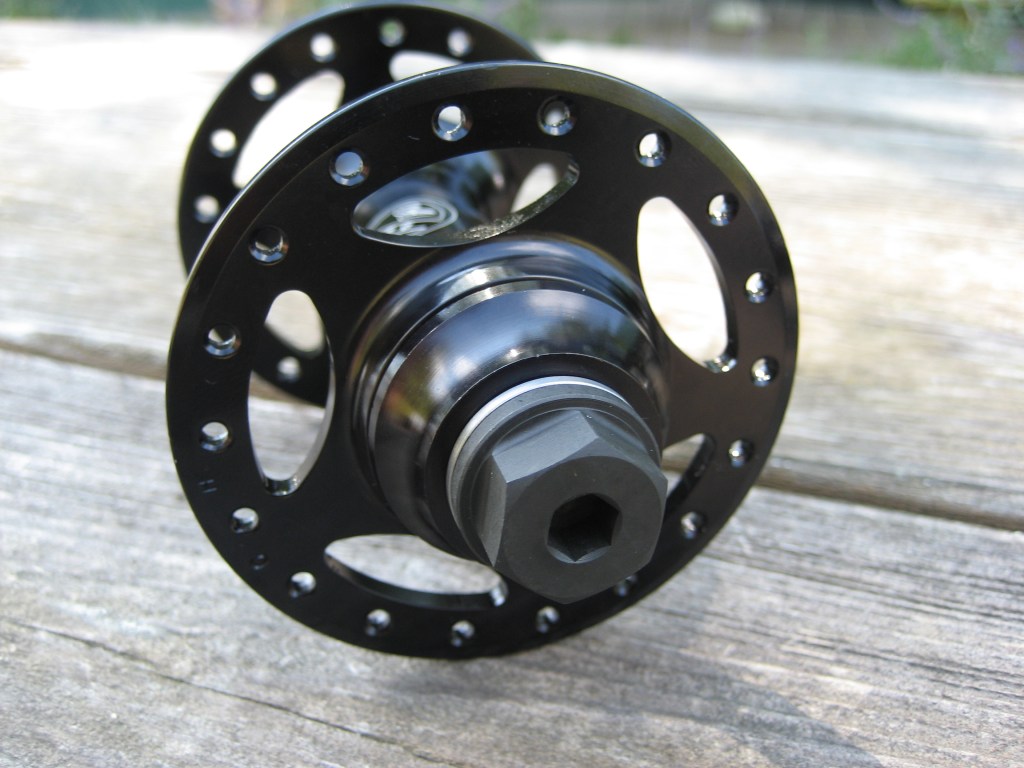

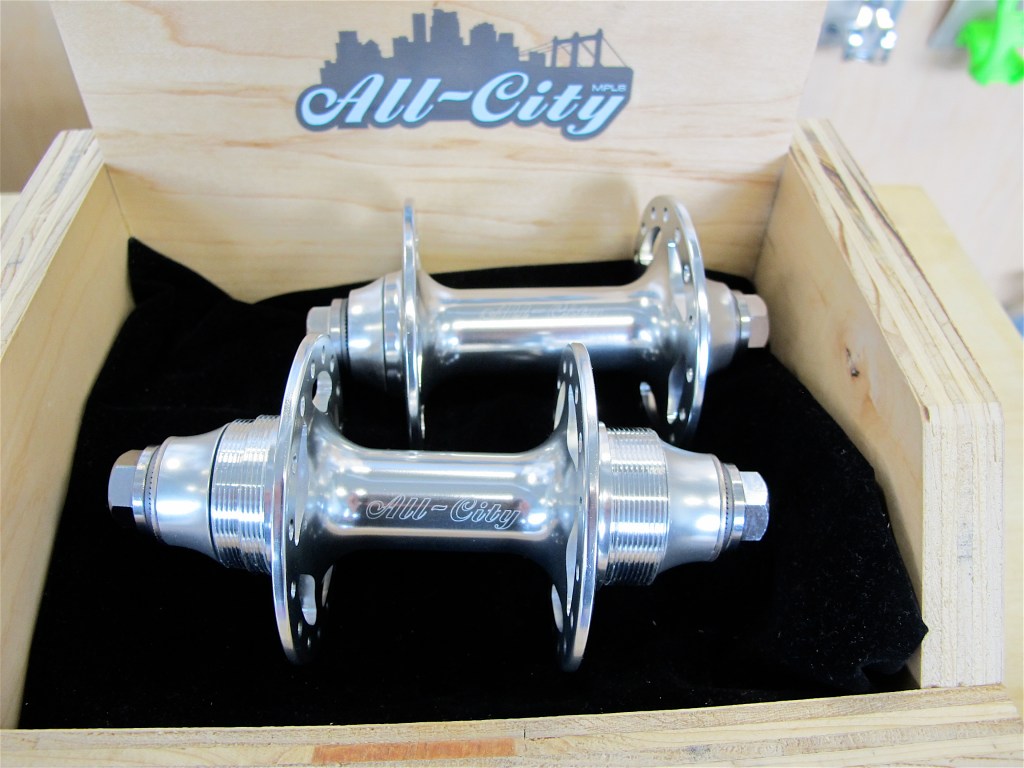

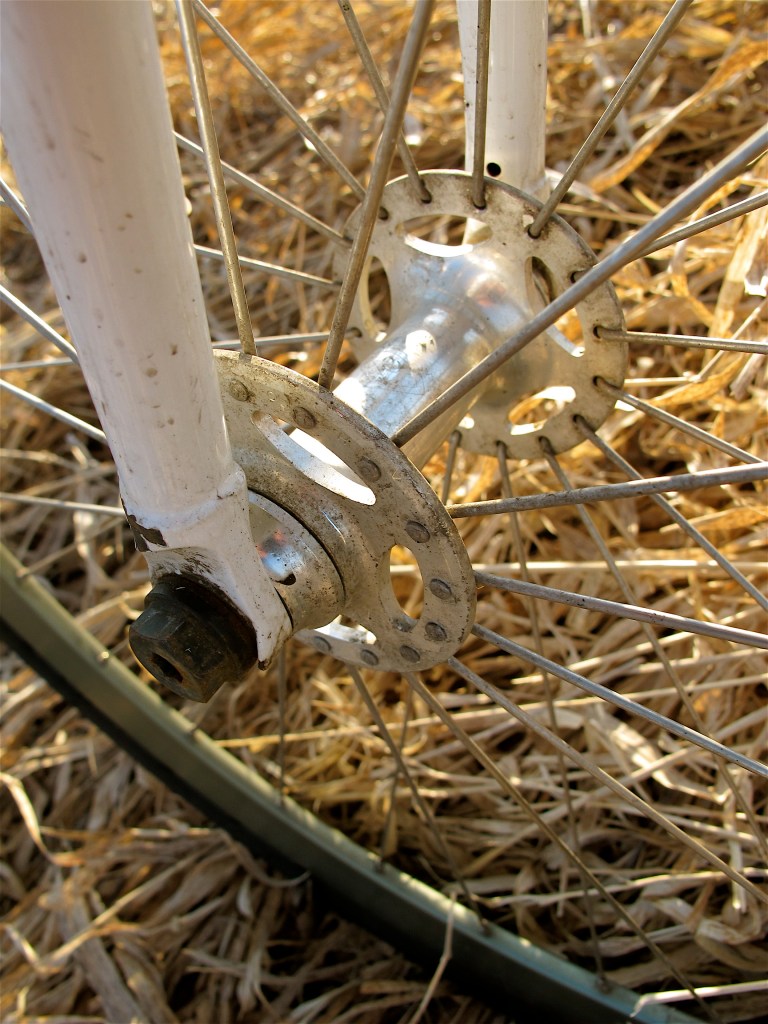

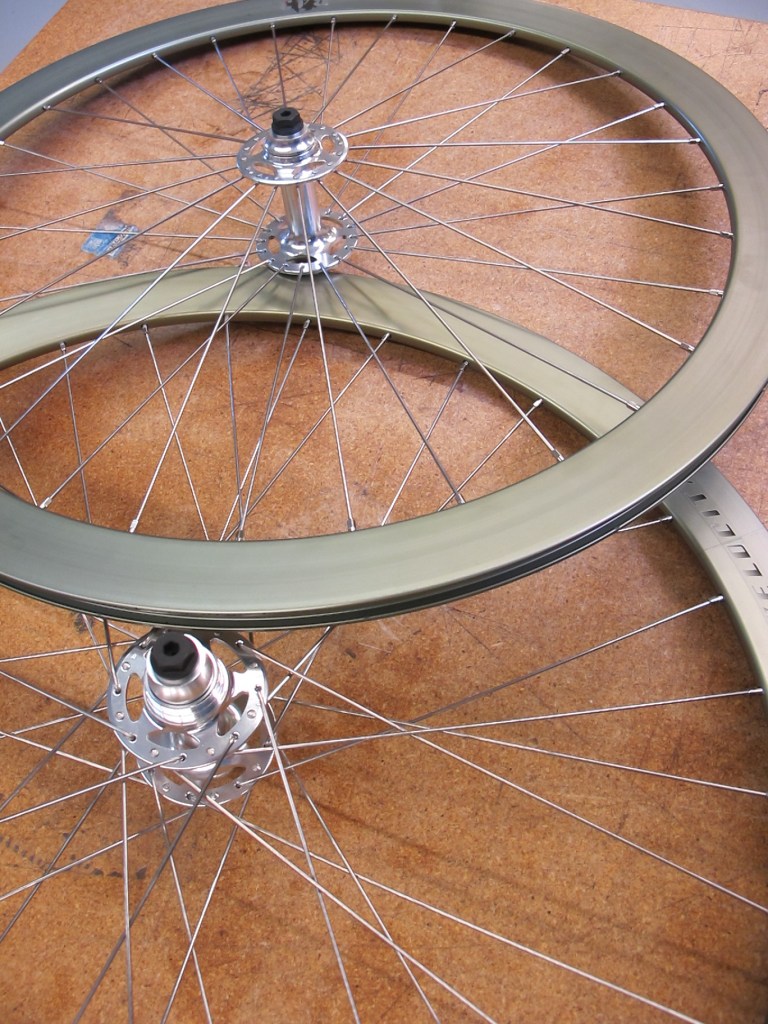

Gallery:

Specifications:

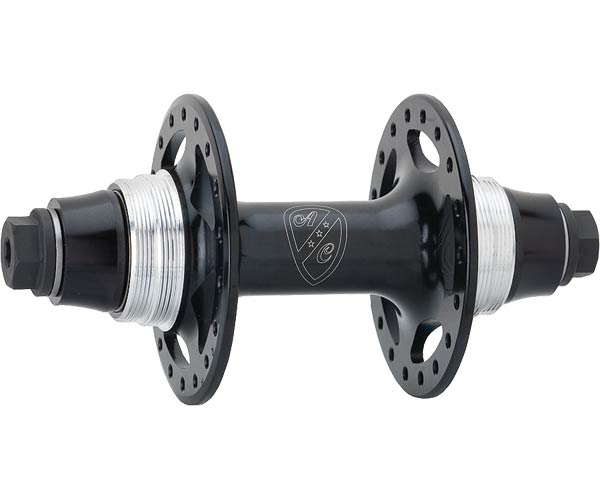

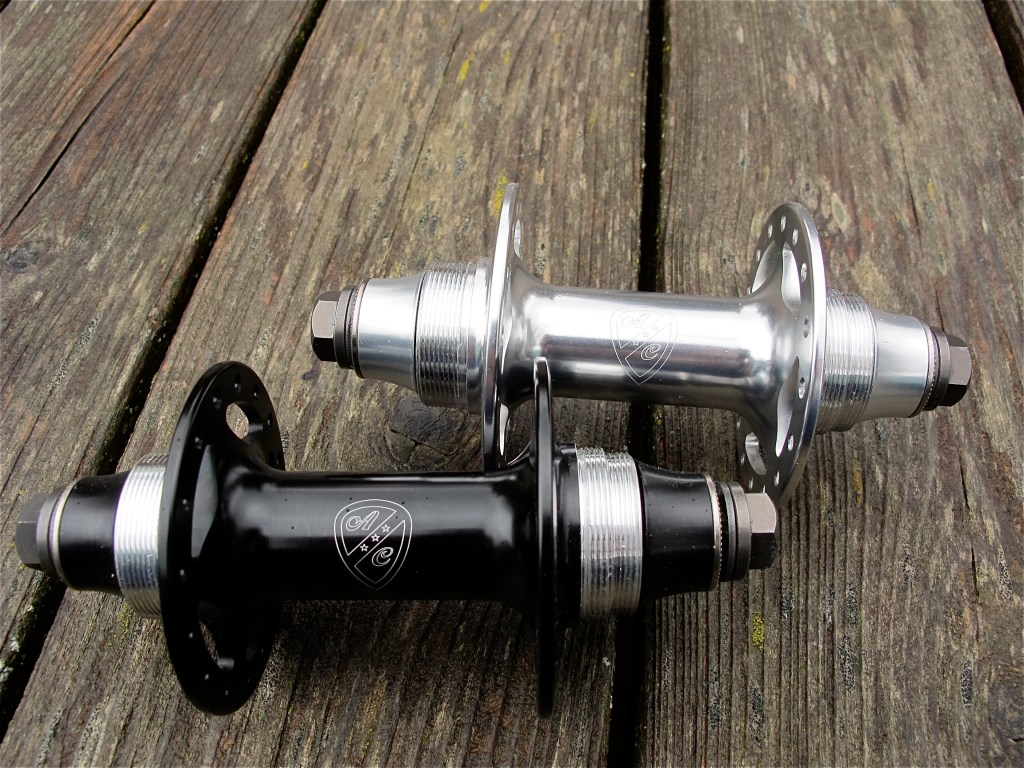

Rear:

  • Hub shell made of 6061 T6 aluminum
  • High flange large window design builds a stiffer wheel while keeping weight down
  • 13 through 15 gauge spoke compatibility
  • Chamfered hub flanges reduce spoke stress
  • Oversized 15mm diameter 6061 T6 aluminum axle
  • High quality Japanese manufactured 6902 sealed bearings
  • Tool Free adjustment, hub bearings are properly loaded when the wheel is installed
  • PRODUCT SPECS
  • Weight:  270 g
  • Torque Spec on Stainless Bolts: 33nm (25ft lbs)
  • Non-Drive Side Center to Flange: 29mm
  • Drive Side Center to Flange: 29mm
  • Non-Drive Side Flange Diameter: 62mm
  • Drive Side Flange Diameter: 62mm
  • Chainline: 42mm

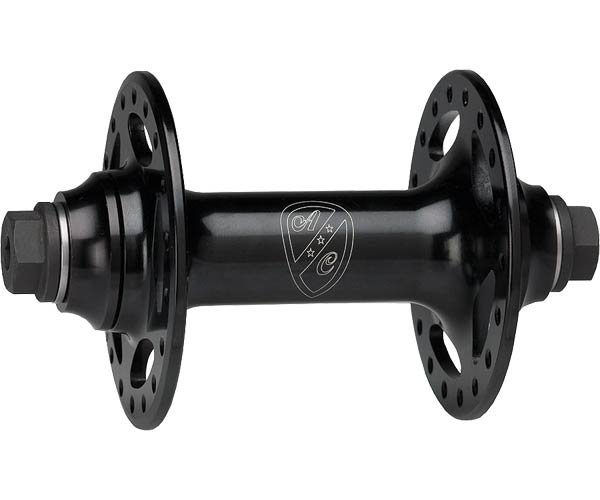

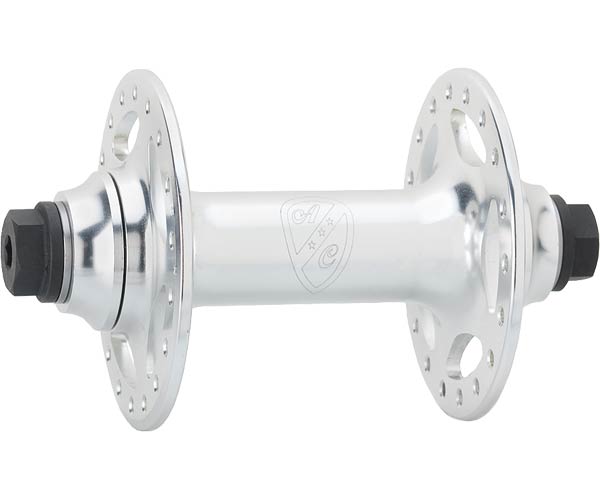

Front:

  • Hub shell made of 6061 T6 aluminum
  • High flange large window design builds a stiffer wheel while keeping weight down
  • Stainless hardware
  • 13 through 15 gauge spoke compatibility
  • Chamfered hub flanges reduce spoke stress
  • Oversized 15mm diameter 6061 T6 aluminum axle
  • High quality Japanese manufactured 6902 sealed bearings
  • Tool Free adjustment, hub bearings are properly loaded when the wheel is installed
  • PRODUCT SPECS
  • Weight:  226 g
  • Torque Spec On Stainless Bolts:  33nm (25ftlbs)
  • Non-Drive Side Center to Flange: 34mm
  • Drive Side Center to Flange: 34mm
  • Non-Drive Side Flange Diameter: 62mm
  • Drive Side Flange Diameter: 62mm
