Description:
The Deputy is the perfect compliment to ours or any freestyle frame. It’s low flanges are stronger and more impact resistant than standard high flange track hubs, it’s got steel axles, is totally peg rated, and it’s 48mm chainline is corrected for BMX cranksets.
Details:
Release Date:
- September 2011
Manufacturer:
MSRP: $110
Color(s):
- Black
Hole Count(s):
- 36h
- 48h
Axle Size(s):
- 10mm
- 14mm
Attachment Type(s):
- Threaded
Gallery:
Specifications:

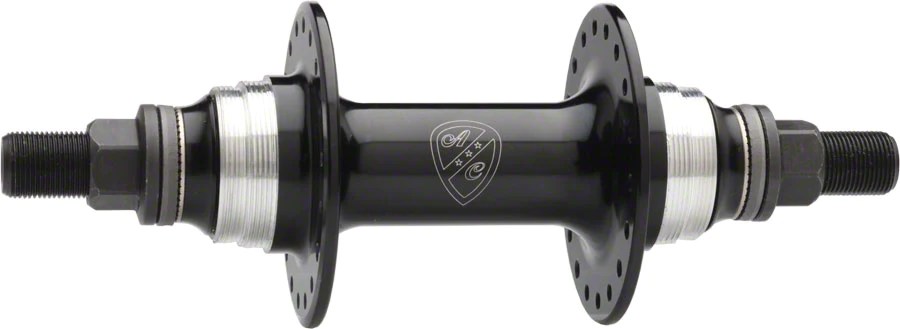

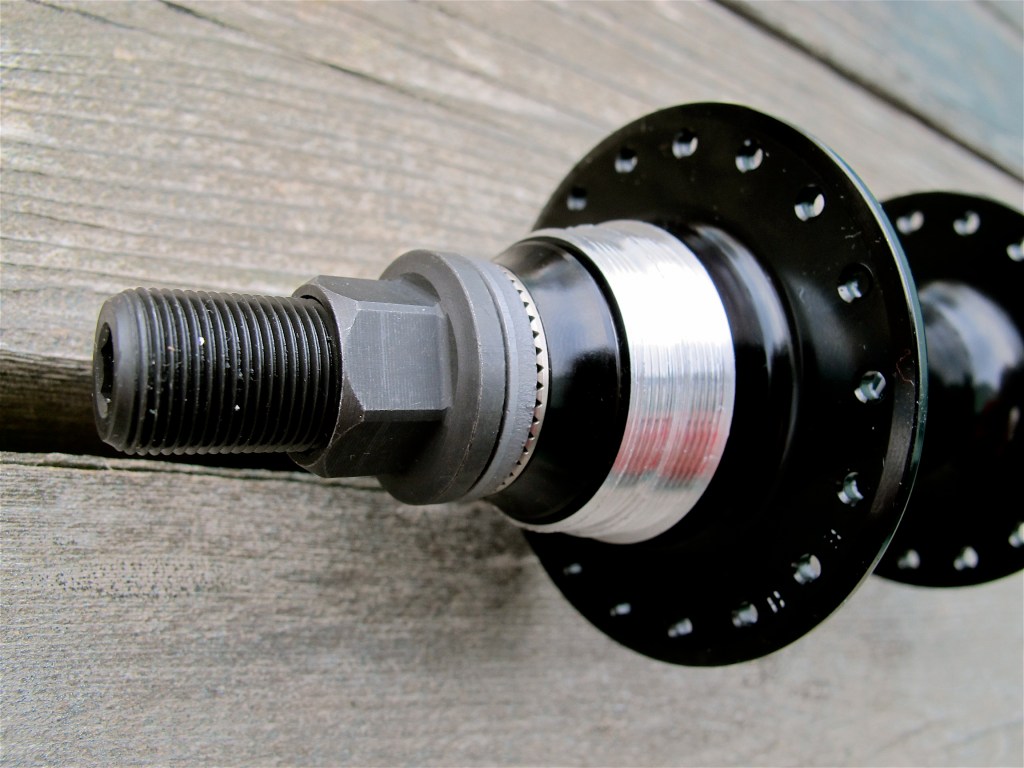

Rear:
- Hub shell made of 6061 T6 aluminum
- Low flange design for impact resistance
- 13 through 15 gauge spoke compatibility
- Chamfered hub flanges reduce spoke stress
- High quality Japanese manufactured 6902 sealed bearings
- Tool Free adjustment, hub bearings are properly loaded when the wheel is installed
- Weight: 288 g (10mm)
- 431 g (14mm)
- Non-Drive Side Center to Flange: 31.5mm
- Drive Side Center to Flange: 31.5mm
- Non-Drive Side Flange Diameter: 58mm
- Drive Side Flange Diameter:58 mm
- Hub Spacing: 120mm
- Chainline: 48mm
Front:
- Hub shell made of 6061 T6 aluminum
- Stuper strong low flange design
- 13 through 15 gauge spoke compatibility
- Chamfered hub flanges reduce spoke stress
- Oversized 15mm diameter steel axle
- High quality Japanese manufactured 6902 sealed bearings
- Tool Free adjustment, hub bearings are properly loaded when the hub is installed in the fork
- Weight: 247 g
- Non-Drive Side Center to Flange: 34mm
- Drive Side Center to Flange: 34mm
- Non-Drive Side Flange Diameter: 58mm
- Drive Side Flange Diameter: 58 mm
- Hub Spacing: 100mm
