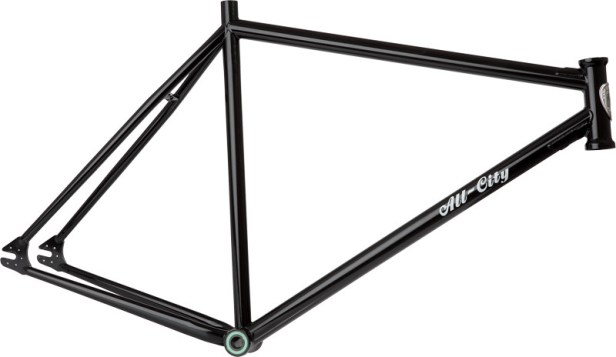

All-City Def Wish Frame

Description:

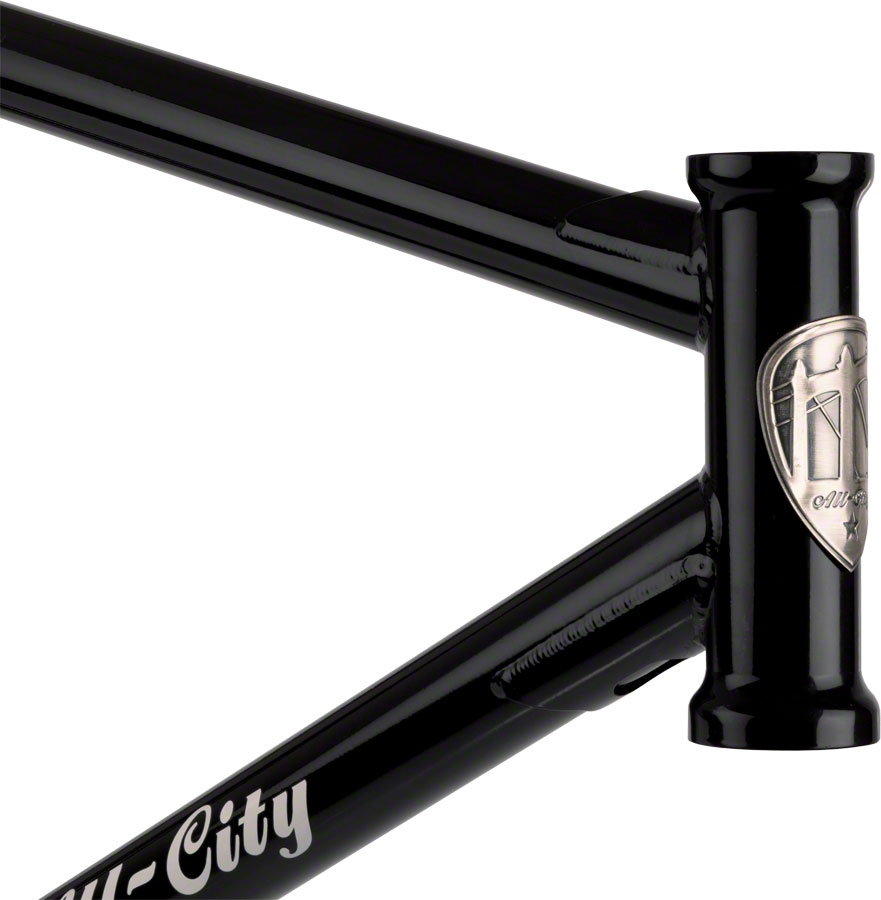

The Def Wish continues the evolution of fixed freestyle bikes and sets a new standard for monster fixed excellence.  It’s got a mid BB, 14mm dropouts, 45/45 internal headset, and improved geometry.  We’ve also redesigned the headtube, gussets, rear end, and given it larger overall tubing diameters.  The crown jewel of this beast though, is that it fits a 29’er tire slammed without the need for dramatic dimples on the chainstays.

If you like your fixed gears with fat meats the Def Wish is for you.  It’s great as an all-arounder or a 700c fixed freestyler.

The Def Wish is sold as a frame only, and was designed to be used with our Dropout fork.

Frame: 100% full 4130 ChroMoly steel. Double butted down, top, and seat tubes.  Top and down tube gussets at the head tube.

Fork: It’s just a frame bro, but it’s designed to utilize the Dropout fork.

Internal Headset:  Campy 45/45.

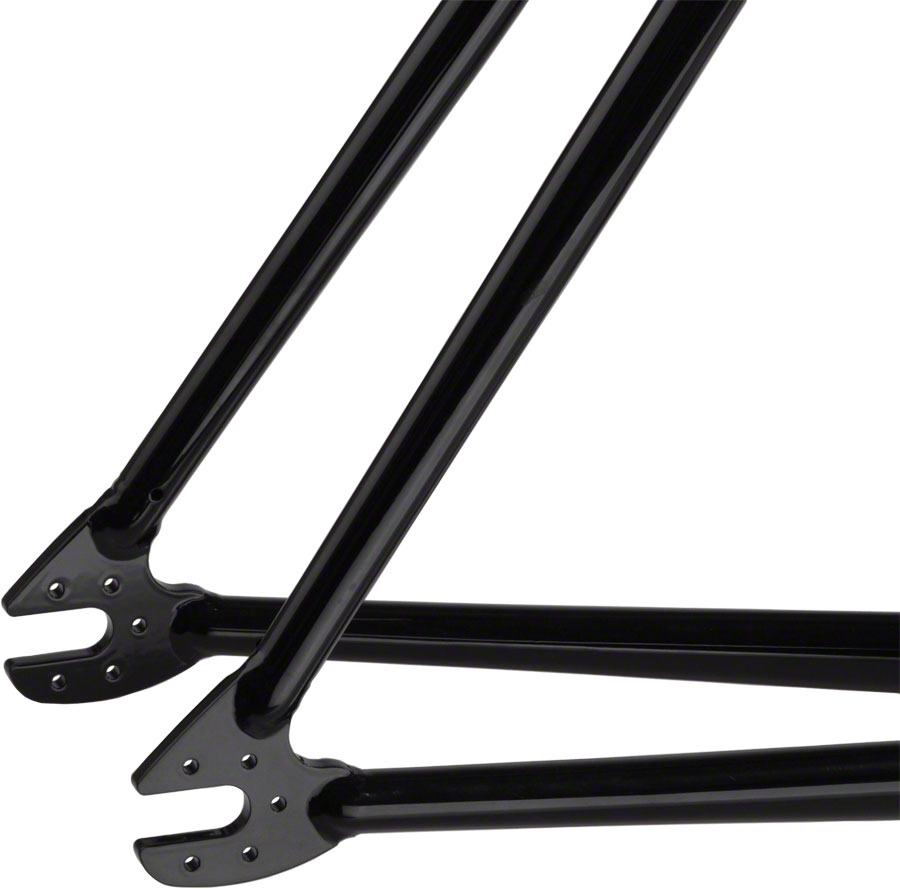

14mm Dropouts: Yeah, 14mm.  It’s like from the future.

Freestyle Geometry:  The Def Wish takes the Dropout’s proven geo and improves it in every way.  It hops, spins, wheelies and sliders like a champ.

Tire clearance: 29X2.0 with the tire slammed in the dropouts.  How’s that for ya?

E.D. Finish:  The entire bike is E.D. coated inside and out.  E.D. coating not only improves the quality and durability of the paint, but is the best rust proofing agent going.  With the E.D. coating there is no need to Frame Saver the bike, it’s already done for you.

Details:

Release Date:

  • March 2011

Manufacturer:

MSRP: $360

Colors:

  • Gloss Black

Size(s):

  • Small (47cm)
  • Medium (51cm)
  • Large (56cm)

Wheel Size:

  • 700c

Gallery:

Specifications:

 SizeSmallMediumLarge
(A)Head Tube Angle72.57373
(B)Seat Tube Angle74.574.574.5
(C)Top Tube Length570590615
(D)Seat Tube Length470515560
(E)Chainstay Length410410410
(F)Bottom Bracket Drop505050
(G)Fork Offset303030
(H)Axle to Crown410410410
(I)Head Tube Length110125140
(I)Wheelbase10131028.71054.1

Head Set: Campy 45/45 standard

Dropouts: 14mm w/ spacers for 10mm compatibility

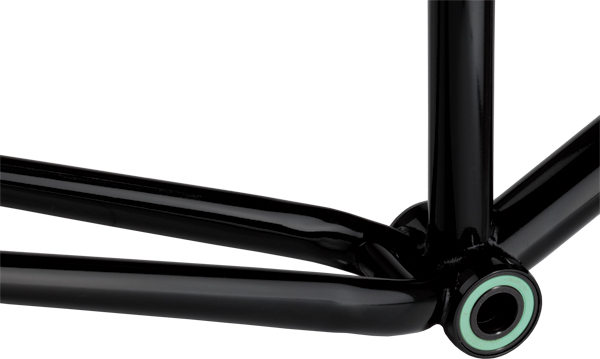

Bottom Bracket: Mid

Rear Spacing: 120mm

Seatpost: 27.2

Seat Collar: 30.0

Brakes: long reach road

Max Chainring: 37t
