All-City Airwolf Frame

Description:

Simply put, the Airwolf does everything better and makes everything easier.  You name it, wheelies, bunny hops, grinds, spins.  All easier on the Airwolf than any other frame that we’ve ever ridden.  This is the future face of fixed gear freestyle and it’s still plenty of fun to run around on and use as a regular everyday bike.

The Airwolf was designed to be used with our Dropout fork.

Frame: 100% full 4130 ChroMoly steel. Double butted down, top, and seat tubes.  Top and down tube gussets at the head tube.

Fork: It’s just a frame bro, but it’s designed to utilize the Dropout fork.

Integrated Headset:  Campy 45/45.

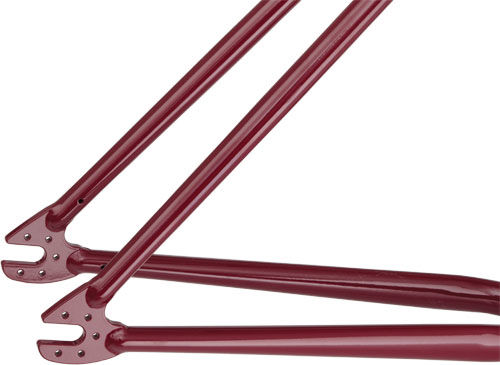

14mm Dropouts:  The future is now

Freestyle Geometry:  The new style, double peg combatible BB height, super short chainstays, plenty of barspin clearance

Tire clearance: 26X2.3 with the tire slammed in the dropouts

E.D. Finish:  The entire bike is E.D. coated inside and out.  E.D. coating not only improves the quality and durability of the paint, but is the best rust proofing agent going.  With the E.D. coating there is no need to Frame Saver the bike, it’s already done for you.

Details:

Release Date:

  • September 2011

Manufacturer:

MSRP: $370

Colors:

  • Wolf’s Blood

Size(s):

  • Small (40cm)
  • Medium (45cm)
  • Large (50cm)

Wheel Size:

  • 26″

Gallery:

Specifications:

(A)Head Tube Angle72.572.572.5
(B)Seat Tube Angle74.074.074.0
(C)Top Tube Length572588603
(D)Seat Tube Length400.0450.0500.0
(E)Chainstay Length385.0385.0385.0
(F)Bottom Bracket Drop-4.0-4.0-4.0
(G)Fork Offset30.030.030.0
(H)Axle to Crown410.0410.0410.0
(I)Head Tube Length110.0125.0140.0
(I)Wheelbase100410201035

Head Set: Campy 45/45 standard

Dropouts: 14mm w/ spacers for 10mm compatibility

Bottom Bracket: Mid

Rear Spacing: 120mm

Seatpost: 27.2

Seat Collar: 30.0

Brakes: long reach road

Max Chainring: 37t

Frame Weight: 5.5lbs
